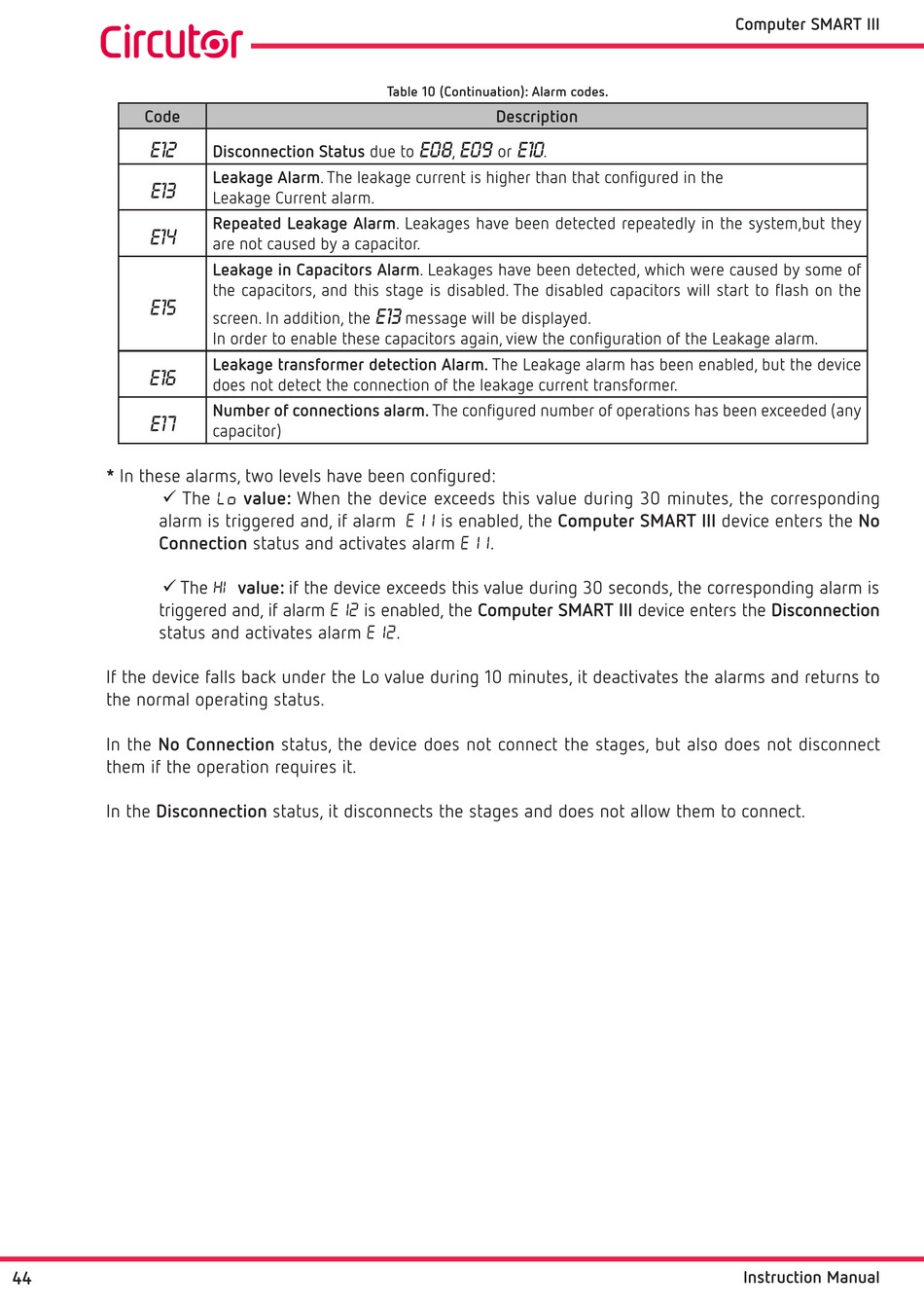

Circutor Computer SMART III 6 Instruction Manual page 44

Code
E12
E13
E14
E15
E16
E17
* In these alarms, two levels have been configured:
 The Lo value: When the device exceeds this value during 30 minutes, the corresponding
alarm is triggered and, if alarm E11 is enabled, the Computer SMART III device enters the No
Connection status and activates alarm E11.
 The HI value: if the device exceeds this value during 30 seconds, the corresponding alarm is
triggered and, if alarm E12 is enabled, the Computer SMART III device enters the Disconnection
status and activates alarm E12.
If the device falls back under the Lo value during 10 minutes, it deactivates the alarms and returns to
the normal operating status.
In the No Connection status, the device does not connect the stages, but also does not disconnect
them if the operation requires it.
In the Disconnection status, it disconnects the stages and does not allow them to connect.
44
Table 10 (Continuation): Alarm codes�
Disconnection Status due to
Leakage Alarm. The leakage current is higher than that configured in the
Leakage Current alarm.
Repeated Leakage Alarm. Leakages have been detected repeatedly in the system,but they
are not caused by a capacitor.
Leakage in Capacitors Alarm. Leakages have been detected, which were caused by some of
the capacitors, and this stage is disabled. The disabled capacitors will start to flash on the
E13
screen. In addition, the
In order to enable these capacitors again, view the configuration of the Leakage alarm.
Leakage transformer detection Alarm� The Leakage alarm has been enabled, but the device
does not detect the connection of the leakage current transformer.
Number of connections alarm� The configured number of operations has been exceeded (any
capacitor)
Description
E08 E09 E10
, or .
message will be displayed.
Computer SMART III
Instruction Manual
