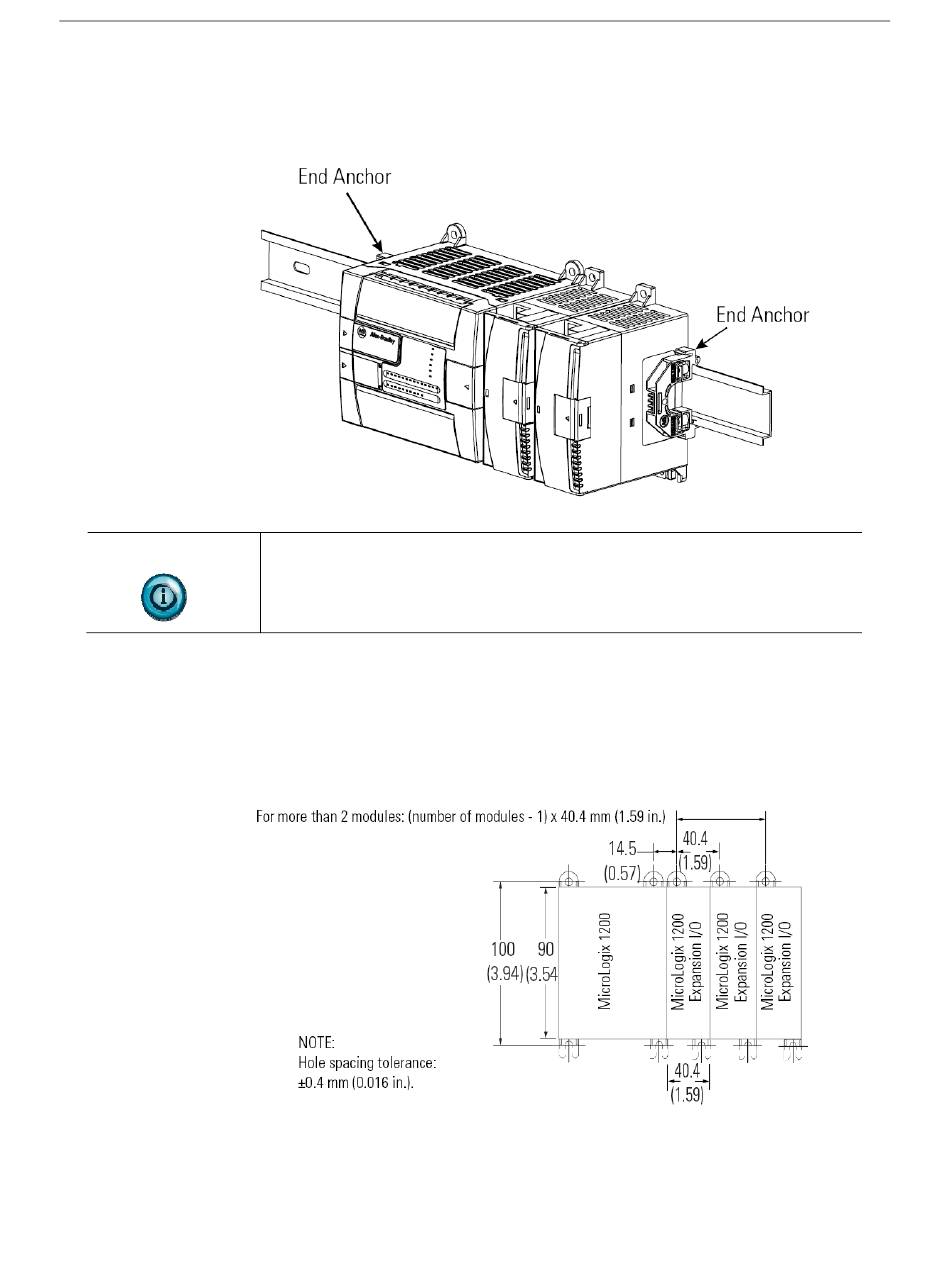

Use DIN rail end anchors (Allen-Bradley part number 1492-EA35 or 1492-
EAH35) for environments with vibration or shock concerns.
Figure 2-2
For environments with extreme vibration and shock concerns, use the
NOTE
panel mounting method described below, instead of DIN rail mounting.

2.4.3 Panel Mounting

Use the dimensional template shown below to mount the module. The preferred
mounting method is to use two M4 or #8 Pan Head screws per module. M3.5 or
#6 Pan Head screws may also be used, but a washer may be needed to ensure a
good ground contact. Mounting screws are required on every module.
Figure 2-3
Chapter 2: Installation and Wiring
User's Manual Pub. 0300247-01 Rev. D
2-5
