1-4 Chapter 1: Module Overview
User's Manual Pub. 0300247-01 Rev. D

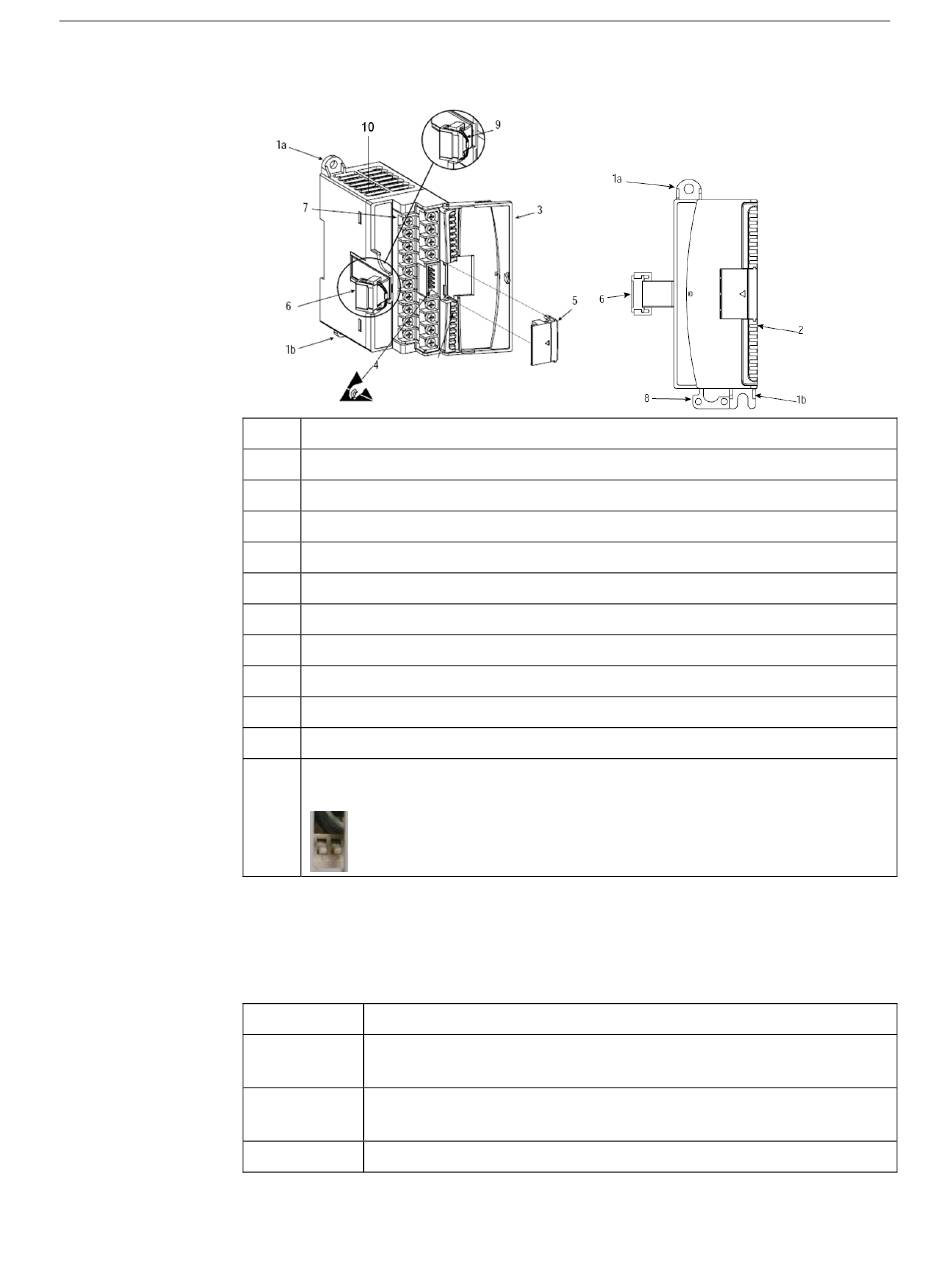

Figure 1-1
Item Description
1a Upper panel mounting tab
1b Lower panel mounting tab
2 Power diagnostic LED
3 Module door with terminal identification label
4 Bus connector (male)
5 Bus connector cover
6 Flat ribbon cable with bus connector (female)
7 Terminal block
8 DIN rail latch
9 Pull loop
10 Ch 6 and Ch 7 DIP switch. Voltage/Current selection. Shipped with
current selected (DIP switches in Down position as shown).

1.6.1 LED Indicator

The 1762 combo module uses a single green LED to show operational status of
the module. The status LED has the following blink codes:
Blink Code Description
Blinks rapid The module is not in run mode.
green
Solid Green Startup has completed, all internal tests have passed, and the
module has received a valid configuration from the PLC.
Off Hardware error.
