2.6.2 Wiring the Finger-Safe Terminal Block

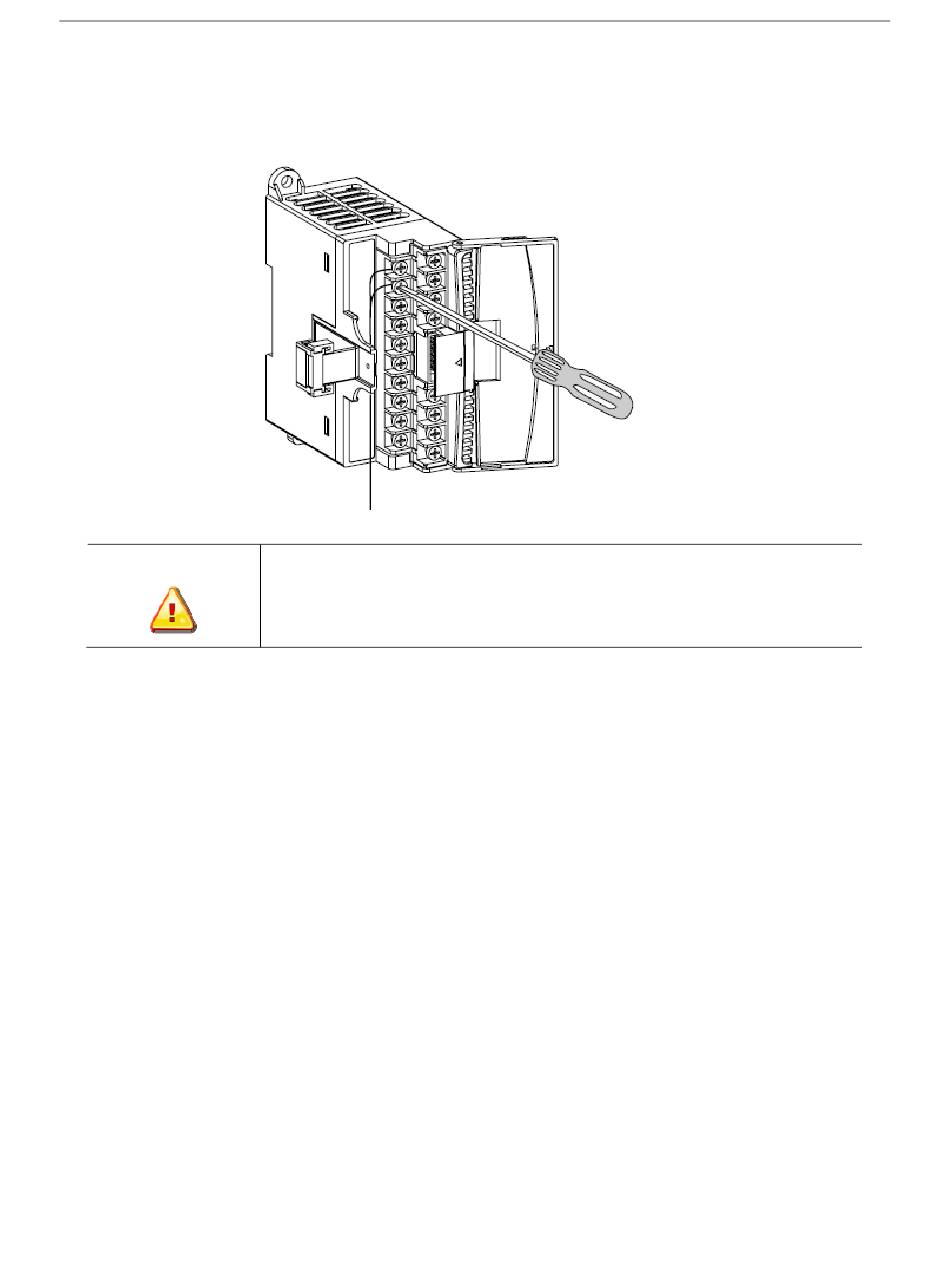

Figure 2-6
Be careful when stripping wires. Wire fragments that fall into a module
WARNING
could cause damage when power is applied. Once wiring is complete,
ensure the module is free of all metal fragments.
When wiring the terminal block, keep the finger-safe cover in place.
1. Refer to previous section for proper field wiring connections.
2. Route the wire under the terminal pressure plate. You can use the
3. Tighten the terminal screw making sure the pressure plate secures the
4. After wiring is complete, remove the debris shield.

2.6.3 Terminal Door Label

A removable, write-on label is provided with the module. Remove the label from
the door, mark your unique identification of each terminal with permanent ink,
and slide the label back into the door. Your markings (ID tag) will be visible
when the module door is closed. See figure below.
stripped end of the wire or a spade lug. The terminals will accept a 6.35
mm (0.25 in.) spade lug. See Figure 2-5.
wire. Recommended torque when tightening terminal screws is 0.904
Nm (8 in-lbs).
