8 These filters do not reject 50/60 Hz. Repeatability for these filters is strongly dependent on how much
50/60 Hz noise is in the system.
Specification
Voltage Inputs
Current Inputs
Input Repeatability
Input Repeatability (at
25C)
Thermocouples
Type J
Type K
Type T
Type E
Voltage Inputs
Current Inputs

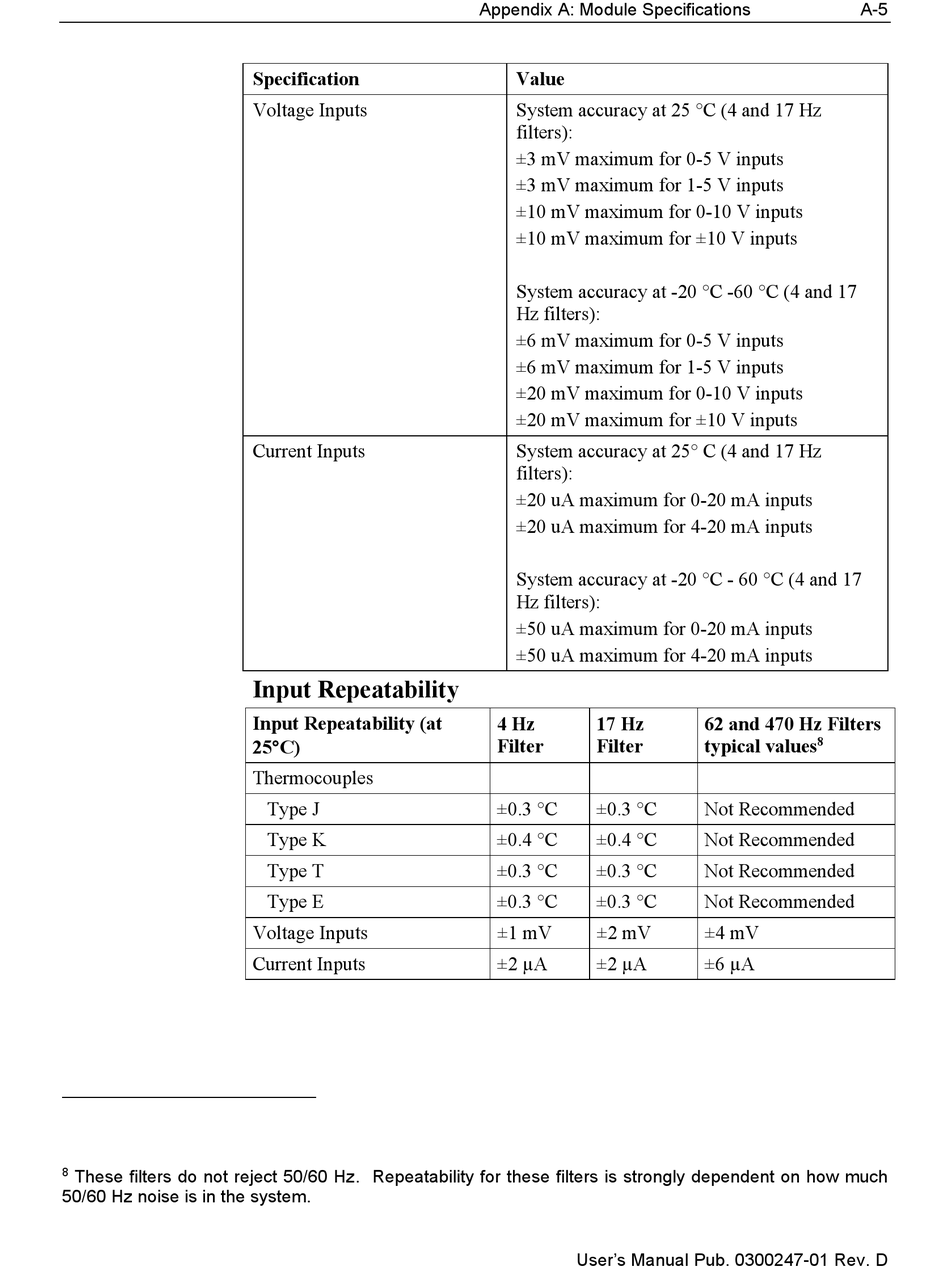

Appendix A: Module Specifications
Value
System accuracy at 25 °C (4 and 17 Hz
filters):
±3 mV maximum for 0-5 V inputs
±3 mV maximum for 1-5 V inputs
±10 mV maximum for 0-10 V inputs
±10 mV maximum for ±10 V inputs
System accuracy at -20 °C -60 °C (4 and 17
Hz filters):
±6 mV maximum for 0-5 V inputs
±6 mV maximum for 1-5 V inputs
±20 mV maximum for 0-10 V inputs
±20 mV maximum for ±10 V inputs
System accuracy at 25° C (4 and 17 Hz
filters):
±20 uA maximum for 0-20 mA inputs
±20 uA maximum for 4-20 mA inputs
System accuracy at -20 °C - 60 °C (4 and 17
Hz filters):
±50 uA maximum for 0-20 mA inputs
±50 uA maximum for 4-20 mA inputs
4 Hz 17 Hz
Filter Filter
±0.3 °C ±0.3 °C
±0.4 °C ±0.4 °C
±0.3 °C ±0.3 °C
±0.3 °C ±0.3 °C
±1 mV ±2 mV
±2 µA ±2 µA
User's Manual Pub. 0300247-01 Rev. D
A-5
62 and 470 Hz Filters
8
typical values
Not Recommended
Not Recommended
Not Recommended
Not Recommended
±4 mV
±6 µA
