Section 3.3 Add Module To Logix 500 - Spectrum Controls 1762sc-IF4OF4 User Manual

3-2 Chapter 3: Configuring the 1762sc-IF4OF4 for RSLogix 500
Section 3.3
Add Module
to Logix 500
User's Manual Pub. 0300247-01 Rev. D
The following procedure describes how to add the IF4OF4 module to the
RSLogix 500 programming software.

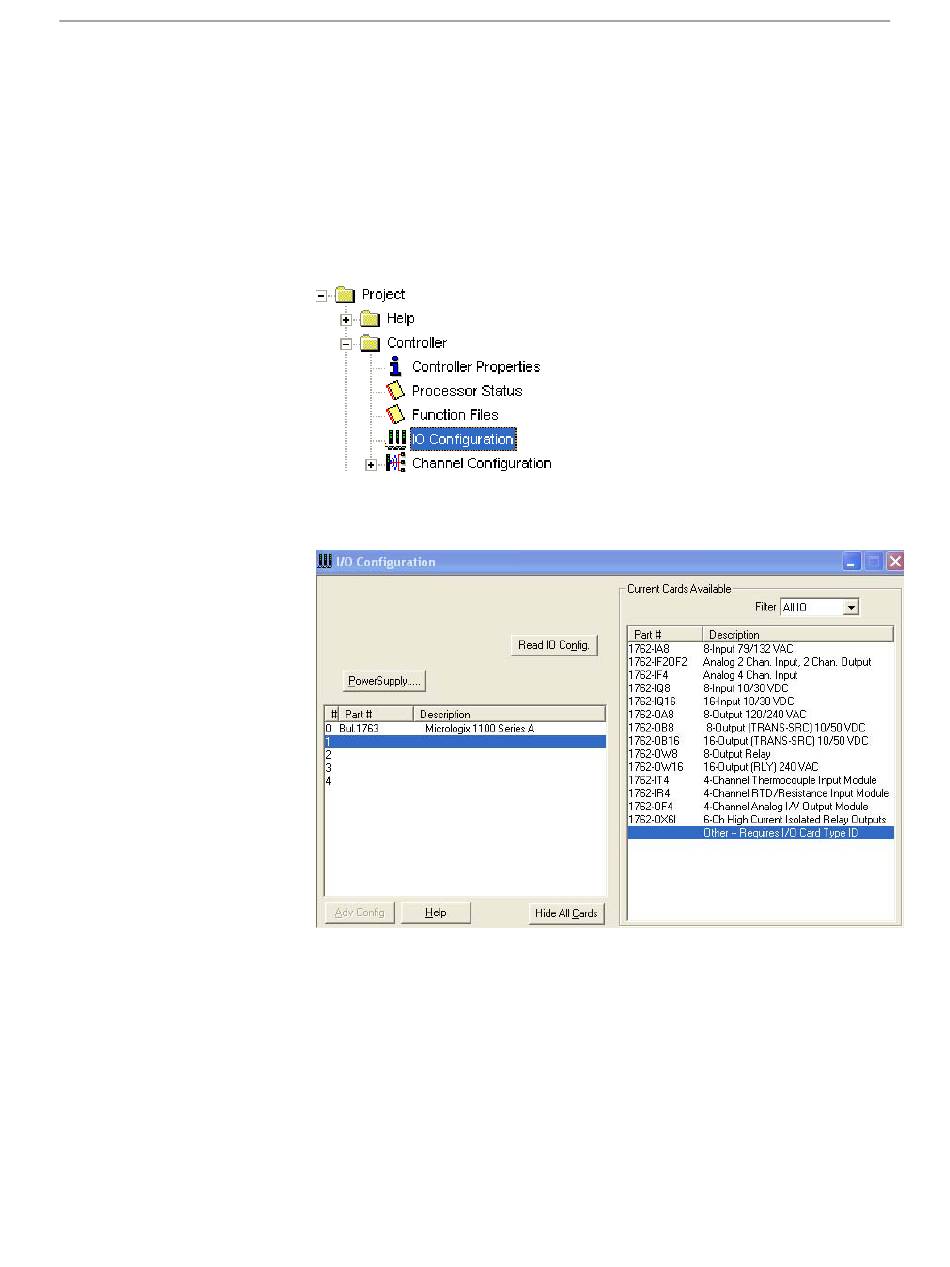

1. Create a new RSLogix 500 project and select either a Micro 1100, 1200,
or 1400 processor.
2. Double-click I/O Configuration from the project tree.
3. Select the first empty slot and then double-click the Other—Requires
I/O Card Type ID option, from the I/O configuration screen.
