User's Manual Pub. 0300242‐01 Rev. A

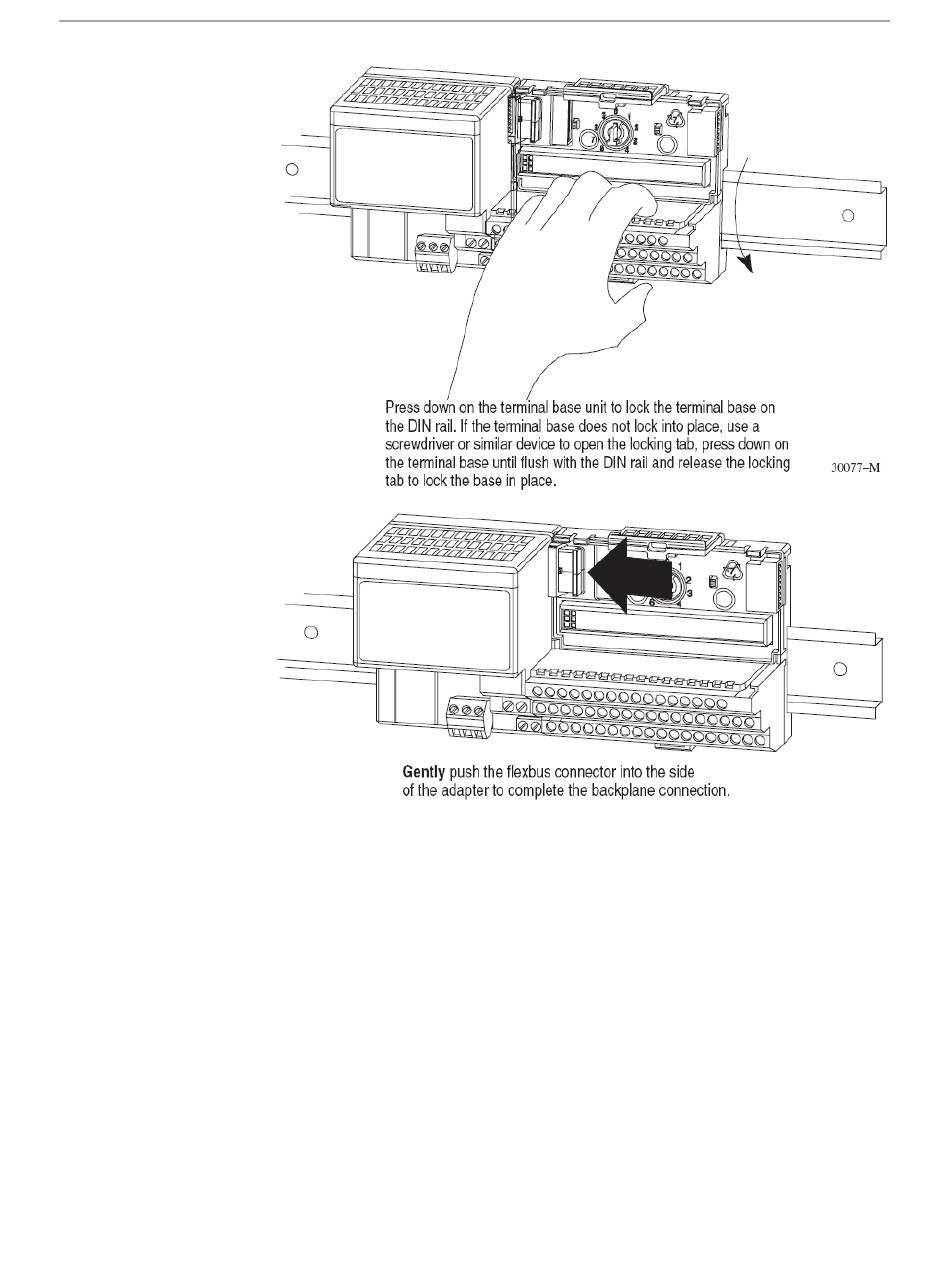

4) Repeat the above steps to install the next terminal base.
2.4.2 Panel/Wall Mounting
Installation on a wall or panel consists of:
•
Laying out the drilling points on the wall or panel
•
Drilling the pilot holes for the mounting screws
•
Mounting the adapter mounting plate
•
Installing the terminal base units and securing them to the wall or panel
If you are installing your module into a terminal base unit that is already installed,
proceed to "Mounting the IRT8I Module on the Terminal Base Unit" on page 2-9.
Use the mounting kit Cat. No. 1794-NM1 for panel/wall mounting.
Chapter 2: Installation and Wiring
2-7
