User's Manual Pub. 0300231-03 Rev. A

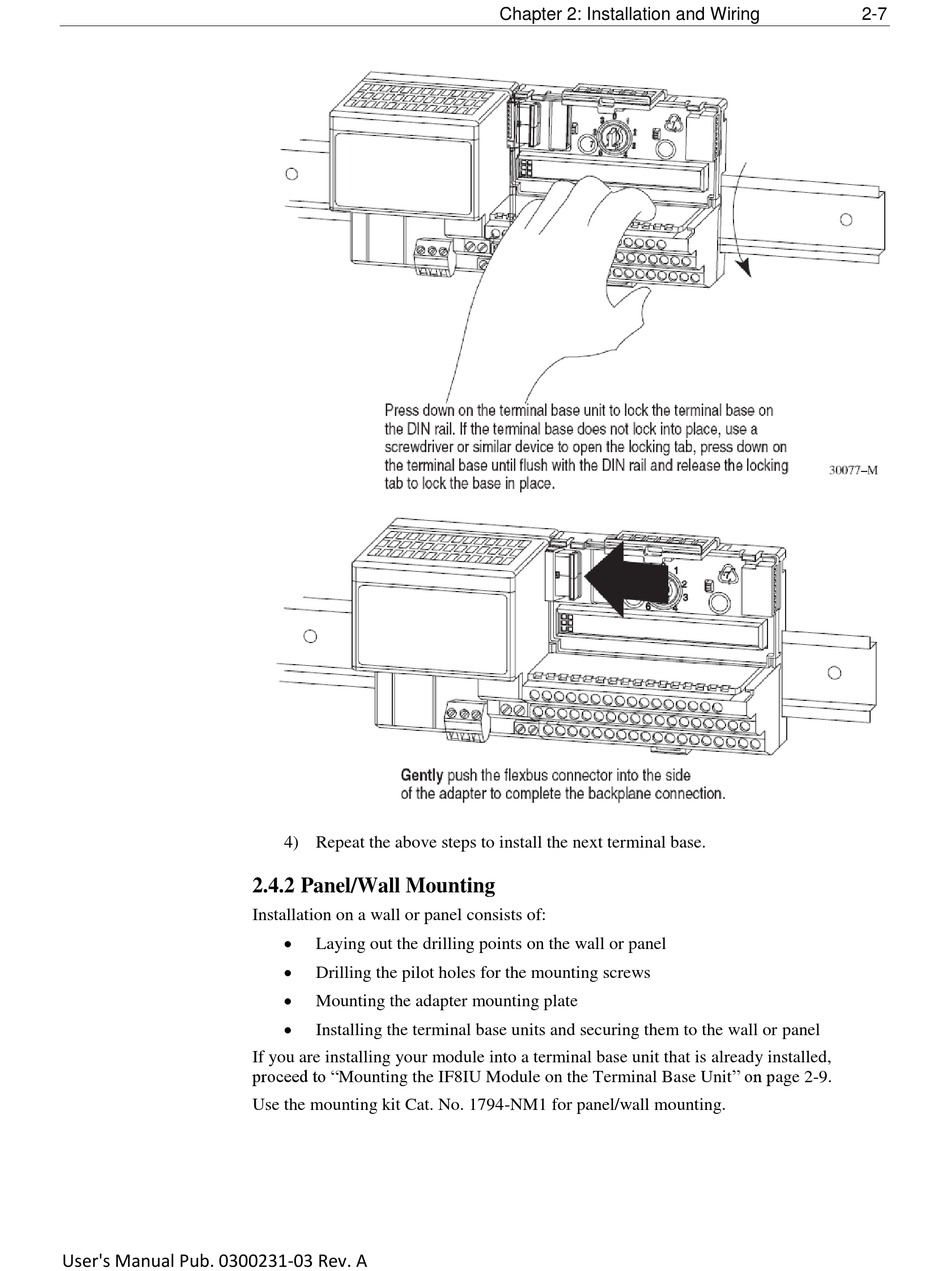

4) Repeat the above steps to install the next terminal base.
2.4.2 Panel/Wall Mounting
Installation on a wall or panel consists of:
Laying out the drilling points on the wall or panel
Drilling the pilot holes for the mounting screws
Mounting the adapter mounting plate
Installing the terminal base units and securing them to the wall or panel
If you are installing your module into a terminal base unit that is already installed,
proceed to "Mounting the IF8IU Module on the Terminal Base Unit" on page 2-9.
Use the mounting kit Cat. No. 1794-NM1 for panel/wall mounting.
Chapter 2: Installation and Wiring
2-7
