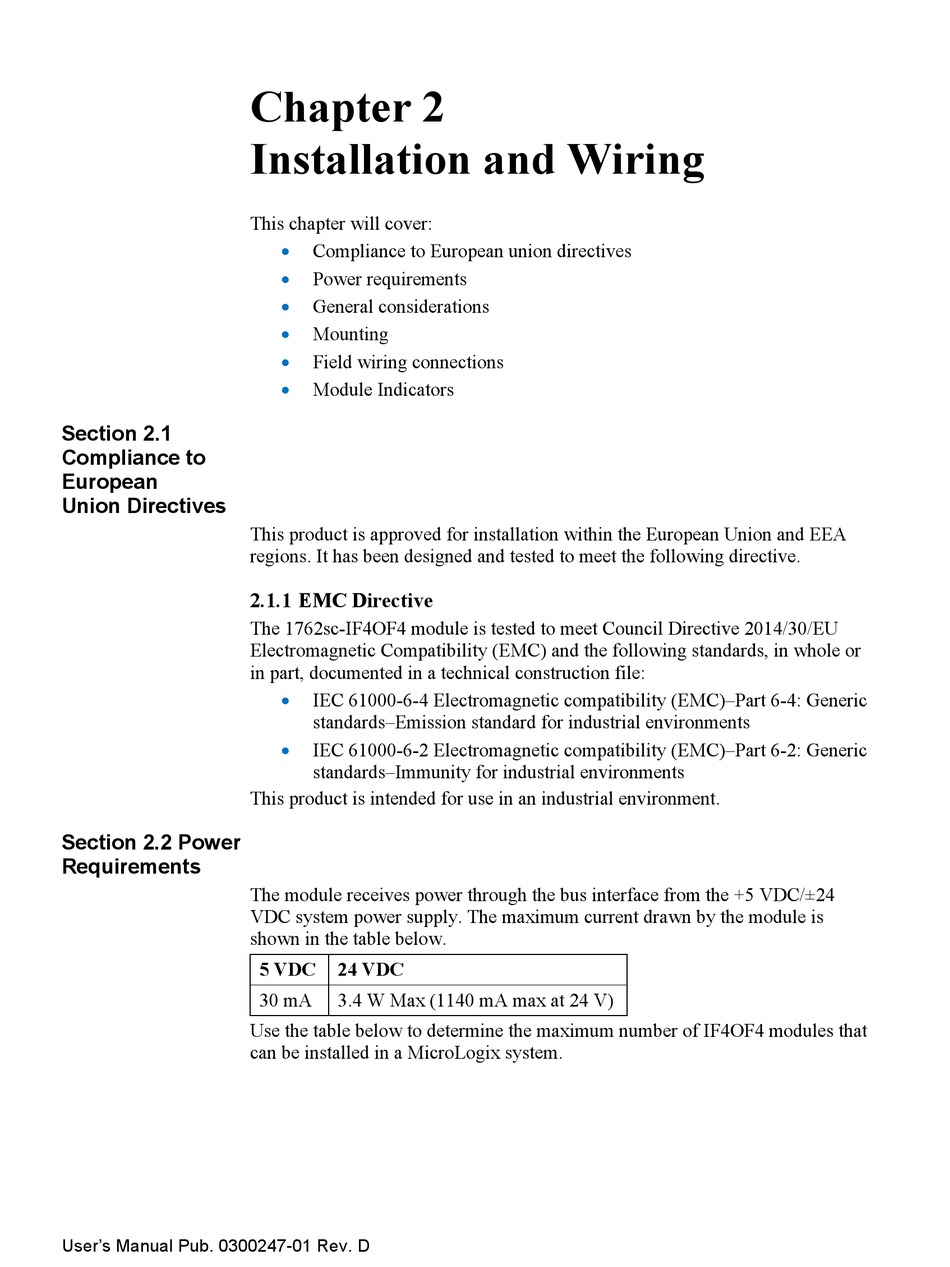

Chapter 2
Installation and Wiring
This chapter will cover:
Compliance to European union directives
Power requirements
General considerations
Mounting
Field wiring connections
Module Indicators
This product is approved for installation within the European Union and EEA
regions. It has been designed and tested to meet the following directive.

2.1.1 EMC Directive

The 1762sc-IF4OF4 module is tested to meet Council Directive 2014/30/EU
Electromagnetic Compatibility (EMC) and the following standards, in whole or
in part, documented in a technical construction file:
IEC 61000-6-4 Electromagnetic compatibility (EMC)–Part 6-4: Generic
standards–Emission standard for industrial environments
IEC 61000-6-2 Electromagnetic compatibility (EMC)–Part 6-2: Generic
standards–Immunity for industrial environments
This product is intended for use in an industrial environment.
The module receives power through the bus interface from the +5 VDC/±24
VDC system power supply. The maximum current drawn by the module is
shown in the table below.
5 VDC
24 VDC
30 mA
3.4 W Max (1140 mA max at 24 V)
Use the table below to determine the maximum number of IF4OF4 modules that
can be installed in a MicroLogix system.
