Section 3.4
Module
Configuration
Chapter 3: Configuring the 1762sc-IF4OF4 for RSLogix 500

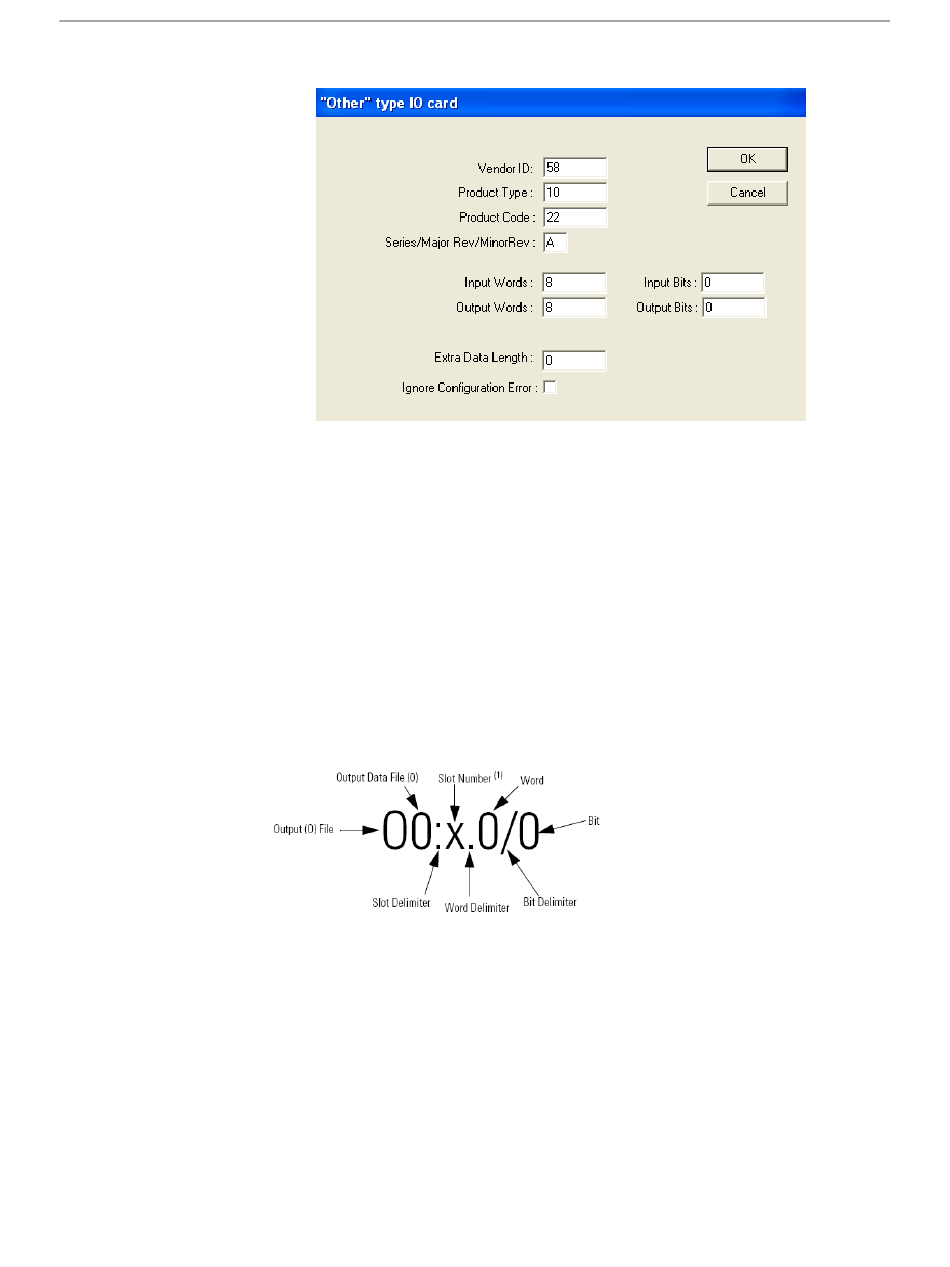

4. Enter the module profile data as shown in the figure below and click OK.
5. Repeat steps 1 through 4 for additional modules.
The IF4OF4 is configured using the output data table within RSLogix 500.

3.4.1 Output Data File (Configuration Data)

The output data file is used to configure the advanced settings of the module
including input type, output type, data format, filter settings, etc. Use the
addressing scheme below to locate the 8 output words needed to configure the
module.
1. I/O located on the controller (embedded I/O) is slot 0. I/O added to the
controller (expansion I/O) begins with slot 1.
The table below shows the general layout for the 8 output words used for
configuration.
User's Manual Pub. 0300247-01 Rev. D
3-3
