Displaying Summary
Network LSAs
Top-Level Menu
system
interface
ethernet
route
areas
fddi
arp
defaultRouteMetric
atm
databaseSummary
multicast
interface
bridge
router
udphelper
linkStateData
ip network
routing
neighbors
ipx summary
icmpRouterDiscovery
routerID
appletalk
external
ospf
partition
snmp
rip
stubDefaultMetric
analyzer
ping
virtualLinks
script
statistics
statistics
logout
OSPF summary links
LSID (Type 3)
193.202.111.0
LSID (Type 3)
193.202.111.128

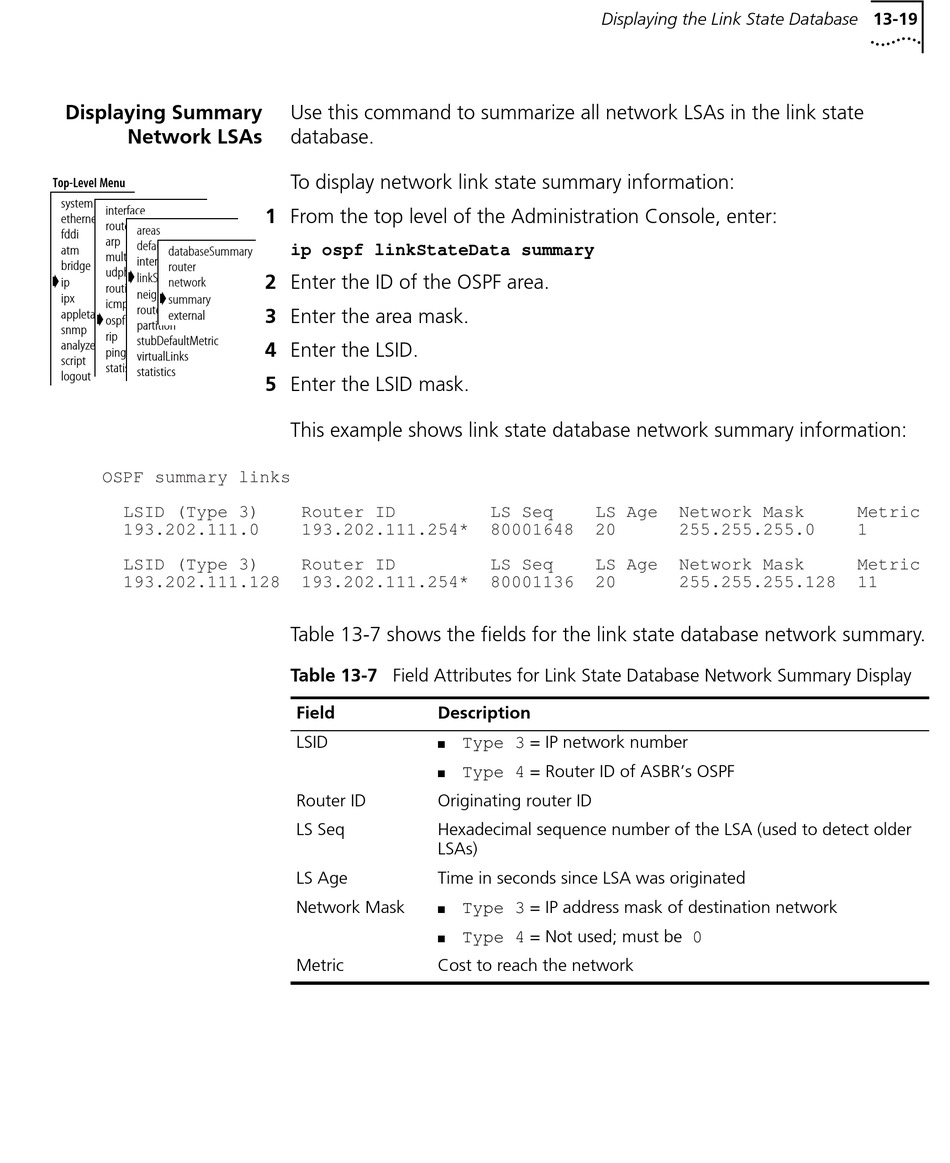

Use this command to summarize all network LSAs in the link state
database.
To display network link state summary information:
1 From the top level of the Administration Console, enter:
ip ospf linkStateData summary
2 Enter the ID of the OSPF area.
3 Enter the area mask.
4 Enter the LSID.
5 Enter the LSID mask.
This example shows link state database network summary information:
Router ID
193.202.111.254*
Router ID
193.202.111.254*
Table 13-7 shows the fields for the link state database network summary.
Table 13-7 Field Attributes for Link State Database Network Summary Display
Field Description
LSID
Router ID Originating router ID
LS Seq Hexadecimal sequence number of the LSA (used to detect older
LSAs)
LS Age Time in seconds since LSA was originated
Network Mask
Metric Cost to reach the network
Displaying the Link State Database 13-19
LS Seq LS Age
80001648 20
LS Seq LS Age
80001136 20
Type 3 = IP network number
Type 4 = Router ID of ASBR's OSPF
Type 3 = IP address mask of destination network
Type 4 = Not used; must be 0
Network Mask
255.255.255.0
Network Mask
255.255.255.128
Metric
1
Metric
11
