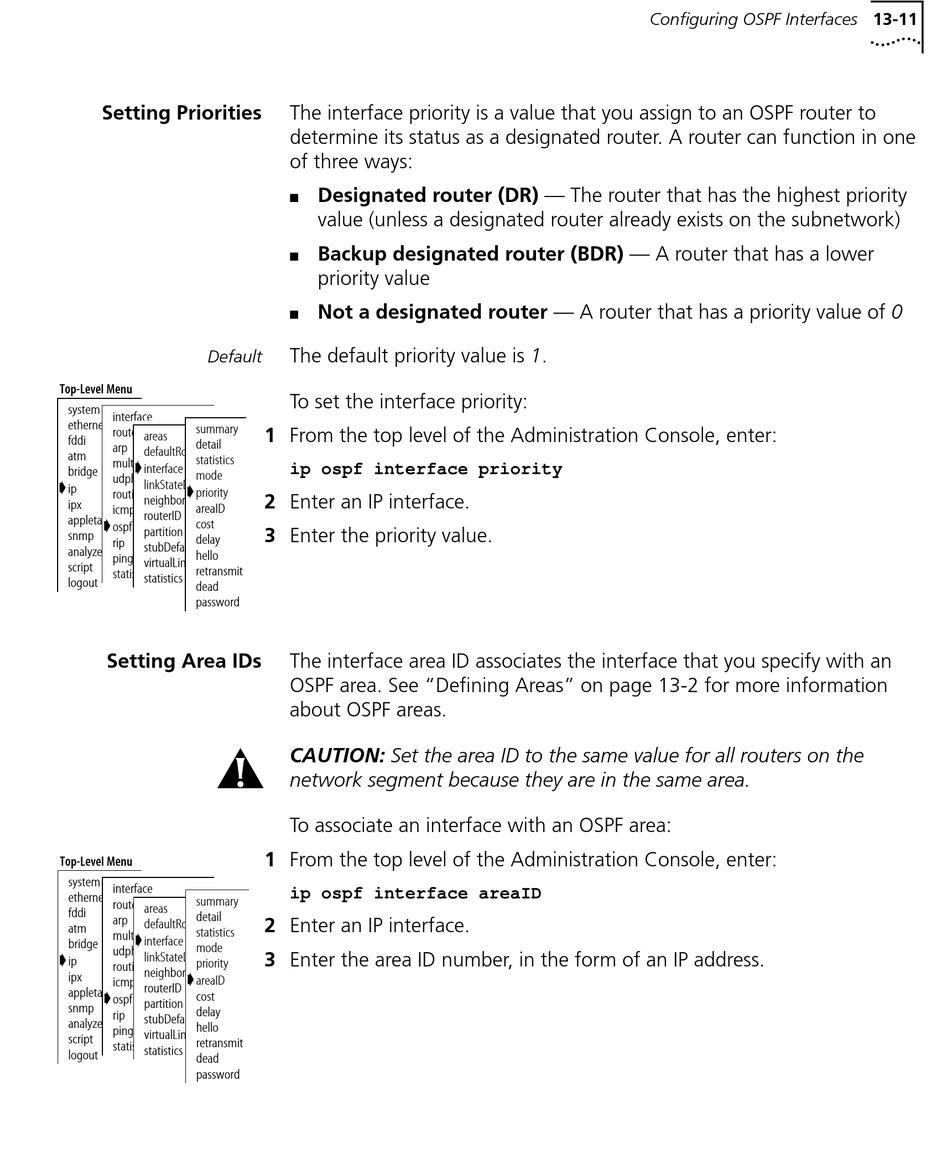

Setting Priorities

Default
Top-Level Menu
system
interface
ethernet
summary
route
areas
fddi
detail
arp
defaultRouteMetric
atm
statistics
multicast
interface
bridge
mode
udphelper
linkStateData
ip
priority
routing
neighbors
ipx
areaID
icmpRouterDiscovery
routerID
appletalk
cost
ospf
partition
snmp
delay
rip
stubDefaultMetric
analyzer
hello
ping
virtualLinks
script
retransmit
statistics
statistics
logout
dead
password

Setting Area IDs

Top-Level Menu
system
interface
ethernet
summary
route
areas
fddi
detail
arp
defaultRouteMetric
atm
statistics
multicast
interface
bridge
mode
udphelper
linkStateData
ip
priority
routing
neighbors
ipx
areaID
icmpRouterDiscovery
routerID
appletalk
cost
ospf
partition
snmp
delay
rip
stubDefaultMetric
analyzer
hello
ping
virtualLinks
script
retransmit
statistics
statistics
logout
dead
password
The interface priority is a value that you assign to an OSPF router to
determine its status as a designated router. A router can function in one
of three ways:
Designated router (DR) — The router that has the highest priority
value (unless a designated router already exists on the subnetwork)
Backup designated router (BDR) — A router that has a lower
priority value
Not a designated router — A router that has a priority value of 0
The default priority value is 1.
To set the interface priority:
1 From the top level of the Administration Console, enter:
ip ospf interface priority
2 Enter an IP interface.
3 Enter the priority value.
The interface area ID associates the interface that you specify with an
OSPF area. See "Defining Areas" on page 13-2 for more information
about OSPF areas.
CAUTION: Set the area ID to the same value for all routers on the
network segment because they are in the same area.
To associate an interface with an OSPF area:
1 From the top level of the Administration Console, enter:
ip ospf interface areaID
2 Enter an IP interface.
3 Enter the area ID number, in the form of an IP address.
Configuring OSPF Interfaces 13-11
