11-6 C 11: A
HAPTER DMINISTERING

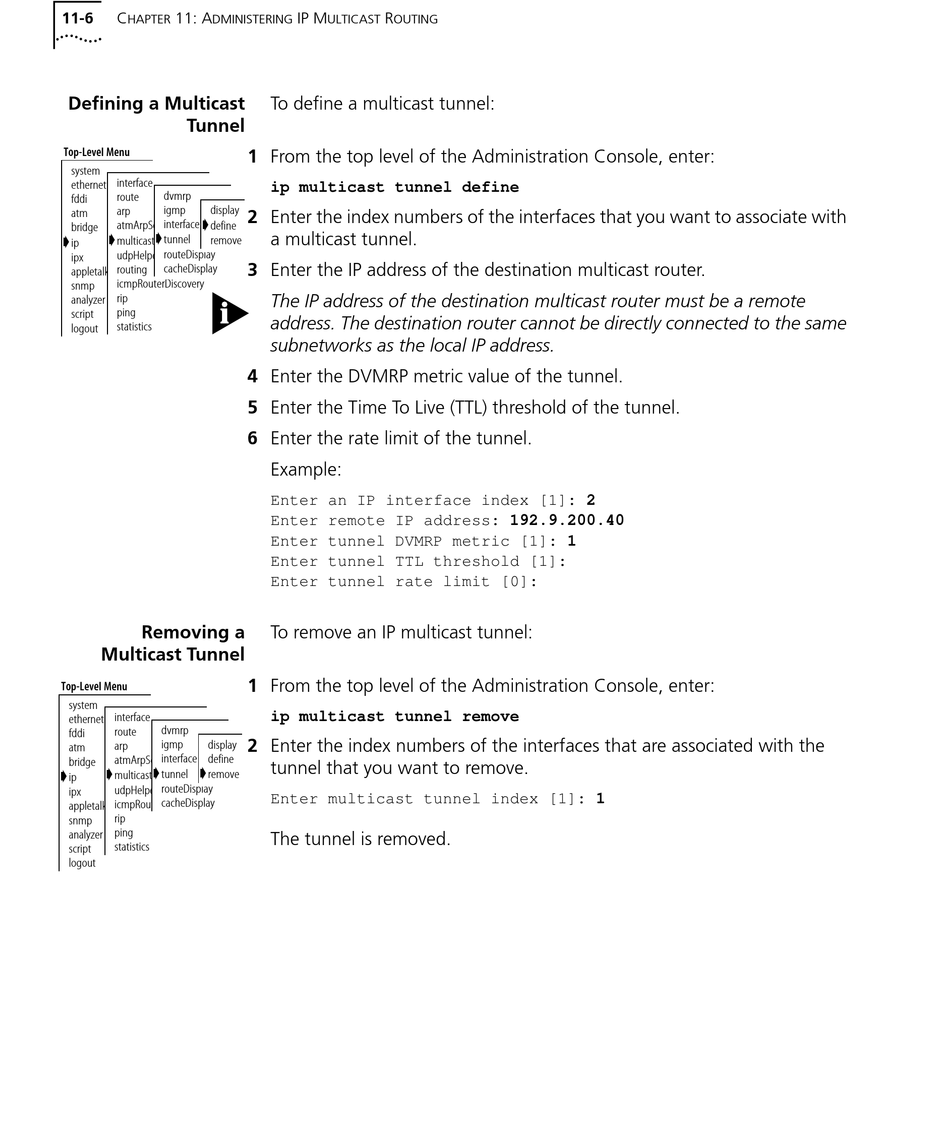

Defining a Multicast
Tunnel
Top-Level Menu
system
interface
ethernet
dvmrp
route
fddi
igmp display
arp
atm
interface
atmArpServer define
bridge
tunnel
remove
multicast
ip
routeDisplay
udpHelper
ipx
cacheDisplay
routing
appletalk
icmpRouterDiscovery
snmp
rip
analyzer
ping
script
statistics
logout
Removing a
Multicast Tunnel
Top-Level Menu
system
interface
ethernet
dvmrp
route
fddi
igmp
display
arp
atm
interface define
atmArpServer
bridge
tunnel remove
multicast
ip
routeDisplay
udpHelper
ipx
cacheDisplay
icmpRouterDiscovery
appletalk
rip
snmp
ping
analyzer
statistics
script
logout
IP M R
ULTICAST OUTING
To define a multicast tunnel:
1 From the top level of the Administration Console, enter:
ip multicast tunnel define
2 Enter the index numbers of the interfaces that you want to associate with
a multicast tunnel.
3 Enter the IP address of the destination multicast router.
The IP address of the destination multicast router must be a remote
address. The destination router cannot be directly connected to the same
subnetworks as the local IP address.
4 Enter the DVMRP metric value of the tunnel.
5 Enter the Time To Live (TTL) threshold of the tunnel.
6 Enter the rate limit of the tunnel.
Example:
Enter an IP interface index [1]: 2
Enter remote IP address: 192.9.200.40
Enter tunnel DVMRP metric [1]: 1
Enter tunnel TTL threshold [1]:
Enter tunnel rate limit [0]:
To remove an IP multicast tunnel:
1 From the top level of the Administration Console, enter:
ip multicast tunnel remove
2 Enter the index numbers of the interfaces that are associated with the
tunnel that you want to remove.
Enter multicast tunnel index [1]: 1
The tunnel is removed.
