The data in the routing table is cross-referenced to the Zone Information
Table (ZIT). This table maps networks into zones. See "Session Layer
Protocols" on page 8-8 for more information about the ZIT.
Figure 8-3 illustrates a simple AppleTalk network, and Table 8-1 shows
the corresponding routing table.
Network 5-5
Router 802
Interface 2
Router 24
Interface 1
Interface 3
Network 103-103

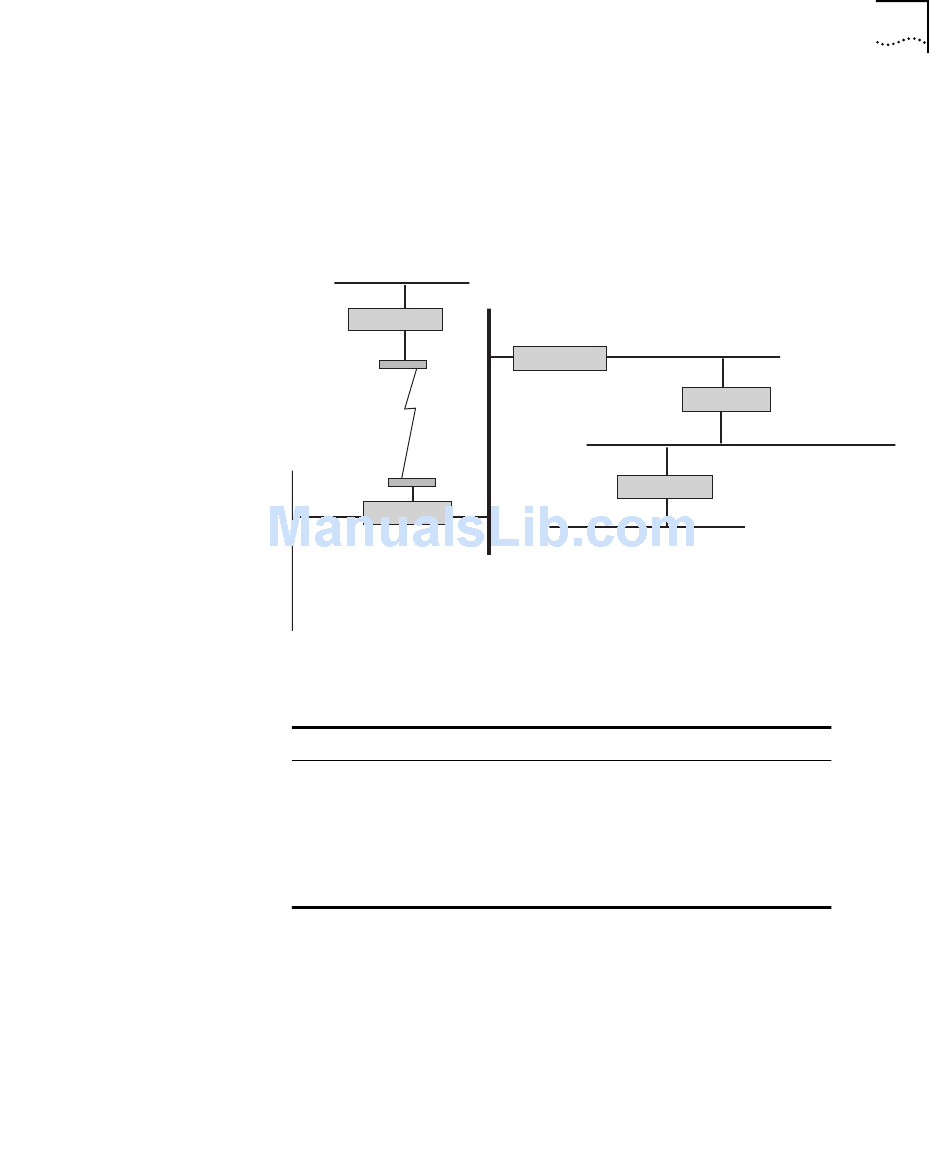

Figure 8-3 A Simple AppleTalk Network
Table 8-1 Routing Table for Router 24 in Figure 8-3
Network Range Distance (hops) Interface
5-5 1
12-12 3
18-20 2
103-103 0
64-64 1
You view the AppleTalk routing tables in your network through the
Administration Console.
Network 64-64
Router 801
Router 36
Router 200
Network 12-12
2
3
3
1
3
AppleTalk Protocols 8-7
Network 18-20
State
Good
Good
Good
Good
Good
