Displaying The Link State Database; Displaying A Database Summary - 3Com CoreBuilder 2500 User Manual

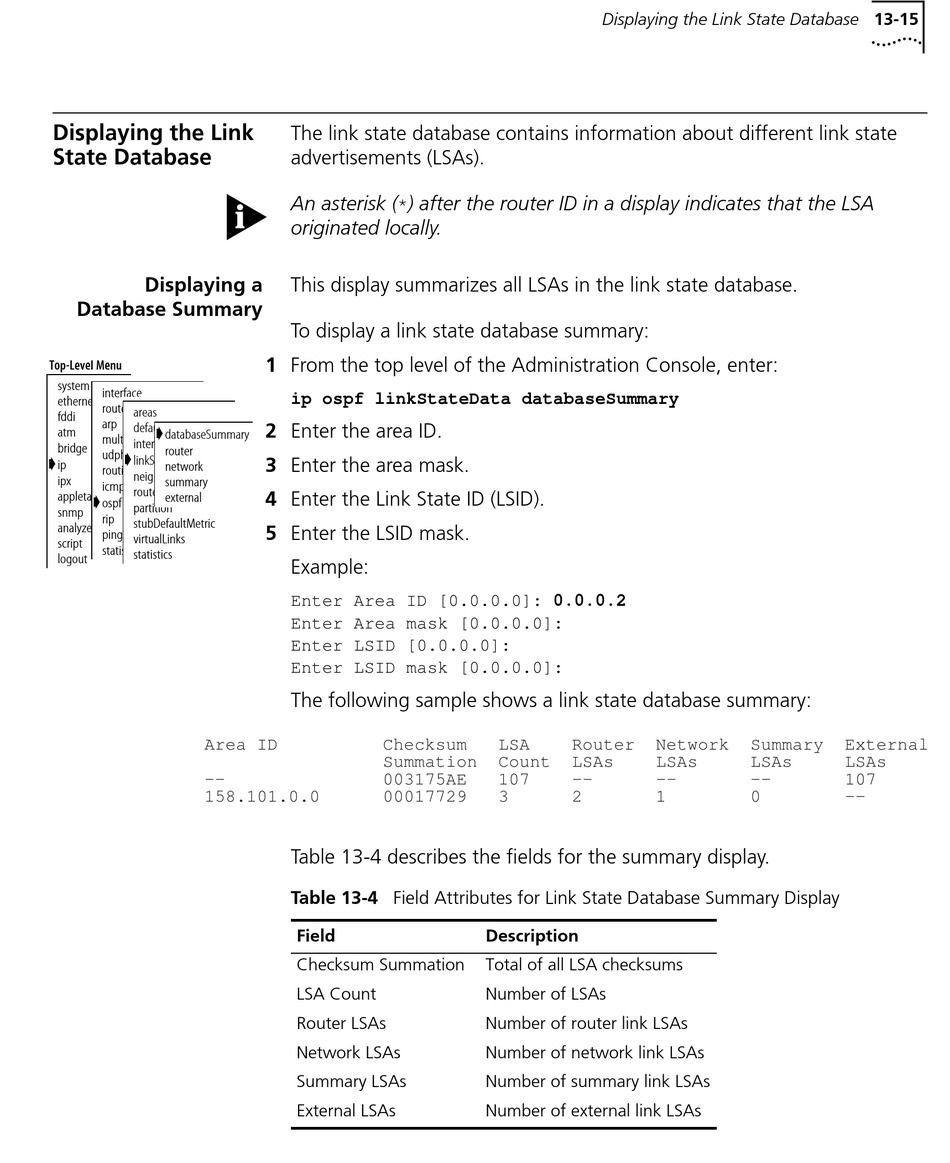

Displaying the Link
State Database
Displaying a
Database Summary
Top-Level Menu
system
interface
ethernet
route
areas
fddi
arp
defaultRouteMetric
atm
databaseSummary
multicast
interface
bridge
router
udphelper
linkStateData
ip
network
routing
neighbors
ipx
summary
icmpRouterDiscovery
routerID
appletalk
external
ospf
partition
snmp
rip
stubDefaultMetric
analyzer
ping
virtualLinks
script
statistics
statistics
logout
Area ID
--
158.101.0.0
The link state database contains information about different link state
advertisements (LSAs).
An asterisk ( ) after the router ID in a display indicates that the LSA
*
originated locally.
This display summarizes all LSAs in the link state database.
To display a link state database summary:
1 From the top level of the Administration Console, enter:
ip ospf linkStateData databaseSummary
2 Enter the area ID.
3 Enter the area mask.
4 Enter the Link State ID (LSID).
5 Enter the LSID mask.
Example:
Enter Area ID [0.0.0.0]: 0.0.0.2
Enter Area mask [0.0.0.0]:
Enter LSID [0.0.0.0]:
Enter LSID mask [0.0.0.0]:
The following sample shows a link state database summary:
Checksum
Summation
003175AE
00017729
Table 13-4 describes the fields for the summary display.
Table 13-4 Field Attributes for Link State Database Summary Display
Field
Checksum Summation
LSA Count
Router LSAs
Network LSAs
Summary LSAs
External LSAs

Displaying the Link State Database 13-15

LSA Router Network
Count LSAs LSAs
107 -- --
3 2 1
Description
Total of all LSA checksums
Number of LSAs
Number of router link LSAs
Number of network link LSAs
Number of summary link LSAs
Number of external link LSAs
Summary External
LSAs LSAs
-- 107
0 --
