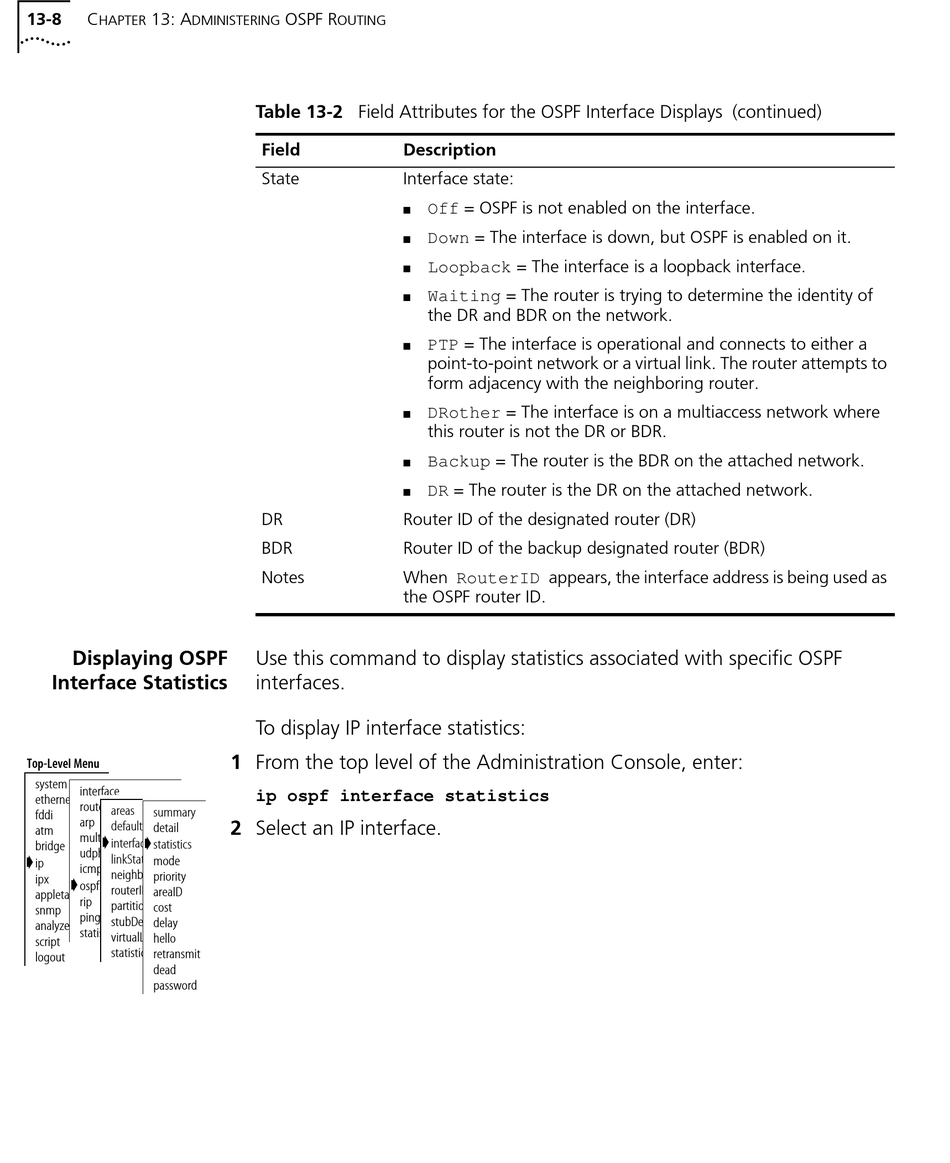

13-8 C 13: A
HAPTER DMINISTERING
Displaying OSPF
Interface Statistics
Top-Level Menu
system
interface
ethernet
route
areas
summary
fddi
arp
defaultRouteMetric
detail
atm
multicast
interface
statistics
bridge
udphelper
linkStateData
mode
ip
icmpRouterDiscovery
neighbors
priority
ipx
ospf
routerID
areaID
appletalk
rip
partition
cost
snmp
ping
stubDefaultMetric
delay
analyzer
statistics
virtualLinks
hello
script
statistics
retransmit
logout
dead
password
OSPF R
OUTING
Table 13-2 Field Attributes for the OSPF Interface Displays (continued)
Field Description
State Interface state:
DR Router ID of the designated router (DR)
BDR Router ID of the backup designated router (BDR)
Notes When RouterID appears, the interface address is being used as
the OSPF router ID.
Use this command to display statistics associated with specific OSPF
interfaces.
To display IP interface statistics:
1 From the top level of the Administration Console, enter:
ip ospf interface statistics
2 Select an IP interface.
Off = OSPF is not enabled on the interface.
Down = The interface is down, but OSPF is enabled on it.
Loopback = The interface is a loopback interface.
Waiting = The router is trying to determine the identity of
the DR and BDR on the network.
PTP = The interface is operational and connects to either a
point-to-point network or a virtual link. The router attempts to
form adjacency with the neighboring router.
DRother = The interface is on a multiaccess network where
this router is not the DR or BDR.
Backup = The router is the BDR on the attached network.
DR = The router is the DR on the attached network.
