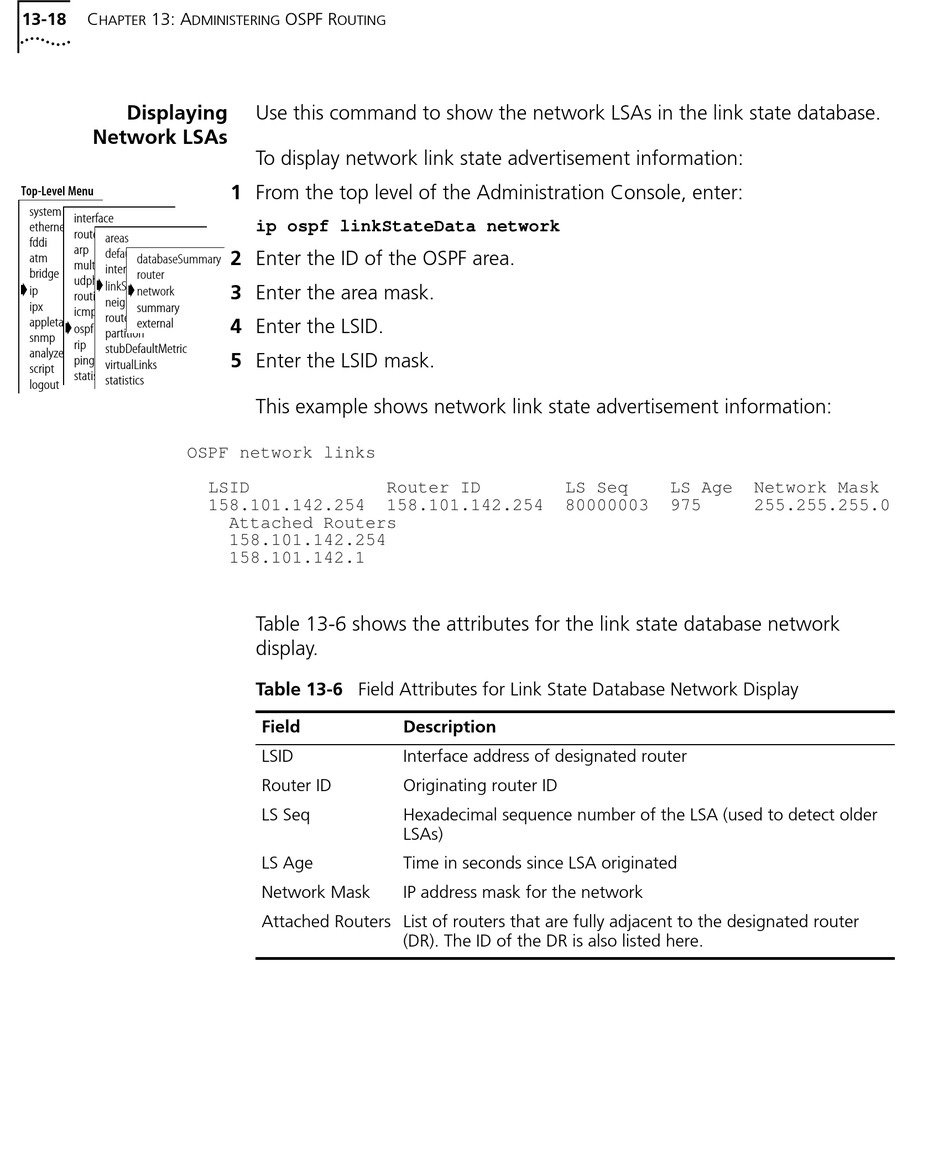

13-18 C 13: A
HAPTER DMINISTERING
Displaying
Network LSAs
Top-Level Menu
system
interface
ethernet
route
areas
fddi
arp
defaultRouteMetric
atm
databaseSummary
multicast
interface
bridge
router
udphelper
linkStateData
ip
network
routing
neighbors
ipx
summary
icmpRouterDiscovery
routerID
appletalk
external
ospf
partition
snmp
rip
stubDefaultMetric
analyzer
ping
virtualLinks
script
statistics
statistics
logout
OSPF network links
OSPF R
OUTING
Use this command to show the network LSAs in the link state database.
To display network link state advertisement information:
1 From the top level of the Administration Console, enter:
ip ospf linkStateData network
2 Enter the ID of the OSPF area.
3 Enter the area mask.
4 Enter the LSID.
5 Enter the LSID mask.
This example shows network link state advertisement information:
LSID
158.101.142.254
Attached Routers
158.101.142.254
158.101.142.1
Table 13-6 shows the attributes for the link state database network
display.
Table 13-6 Field Attributes for Link State Database Network Display
Field
LSID
Router ID
LS Seq
LS Age
Network Mask
Attached Routers List of routers that are fully adjacent to the designated router
Router ID LS Seq
158.101.142.254 80000003
Description
Interface address of designated router
Originating router ID
Hexadecimal sequence number of the LSA (used to detect older
LSAs)
Time in seconds since LSA originated
IP address mask for the network
(DR). The ID of the DR is also listed here.
LS Age Network Mask
975 255.255.255.0
