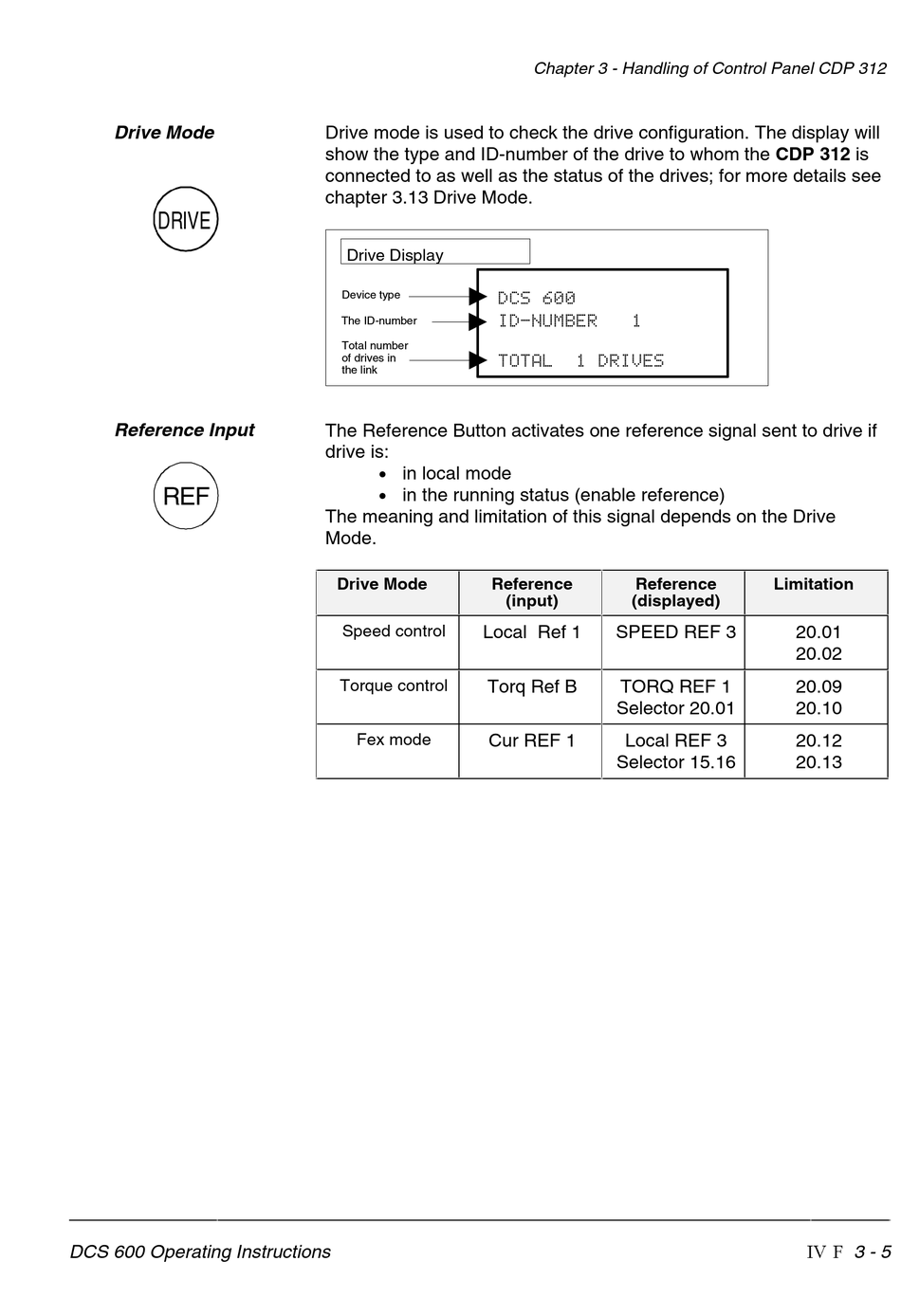

Drive Mode

DRIVE

Reference Input

REF
DCS 600 Operating Instructions
Drive mode is used to check the drive configuration. The display will
show the type and ID-number of the drive to whom the CDP 312 is
connected to as well as the status of the drives; for more details see
chapter 3.13 Drive Mode.
Drive Display
Device type
The ID-number
Total number
of drives in
the link
The Reference Button activates one reference signal sent to drive if
drive is:
•
in local mode
•
in the running status (enable reference)
The meaning and limitation of this signal depends on the Drive
Mode.
Drive Mode Reference
Speed control Local Ref 1
Torque control Torq Ref B
Fex mode
Cur REF 1
Chapter 3 - Handling of Control Panel CDP 312
.-=
3.8?7,/<
>9>+6  .<3@/=
Reference
(input) (displayed)
SPEED REF 3
TORQ REF 1
Selector 20.01
Local REF 3
Selector 15.16
Limitation
20.01
20.02
20.09
20.10
20.12
20.13
3 - 5
