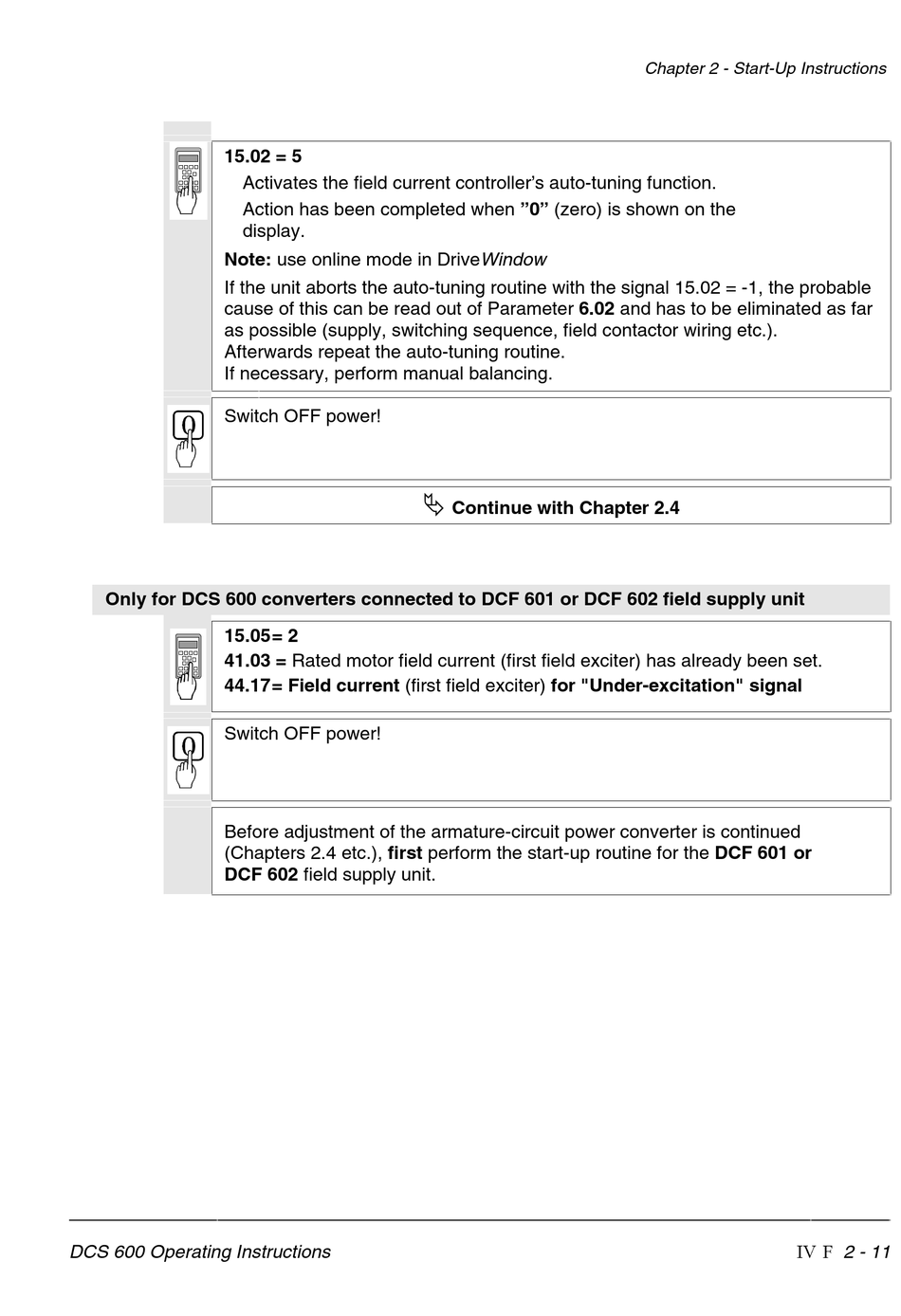

ABB DCS 600 MultiDrive Operating Instructions Manual page 23

15.02 = 5
Note: use online mode in DriveWindow
If the unit aborts the auto-tuning routine with the signal 15.02 = -1, the probable
cause of this can be read out of Parameter 6.02 and has to be eliminated as far
as possible (supply, switching sequence, field contactor wiring etc.).
Afterwards repeat the auto-tuning routine.
If necessary, perform manual balancing.
Switch OFF power!
Only for DCS 600 converters connected to DCF 601 or DCF 602 field supply unit
15.05= 2
41.03 = Rated motor field current (first field exciter) has already been set.
44.17= Field current (first field exciter) for "Under-excitation" signal
Switch OFF power!
Before adjustment of the armature-circuit power converter is continued
(Chapters 2.4 etc.), first perform the start-up routine for the DCF 601 or
DCF 602 field supply unit.
DCS 600 Operating Instructions
Activates the field current controller's auto-tuning function.
Action has been completed when "0" (zero) is shown on the
display.
©
Continue with Chapter 2.4
Chapter 2 - Start-Up Instructions
IV F
2 - 11
