DCS 500
FEX
DCF 500
PLANNING AND START-UP

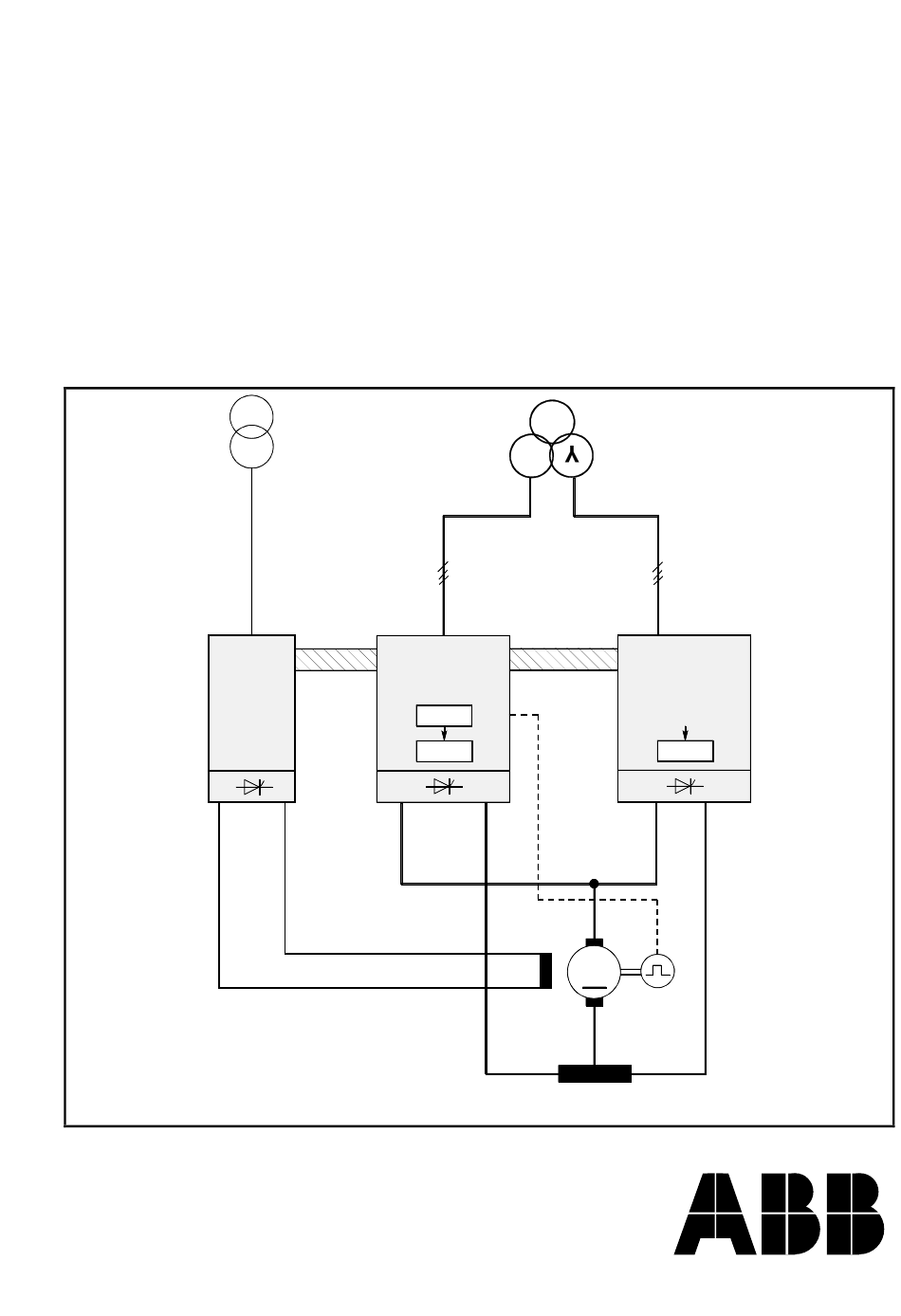

12-Pulse Power Converters
DC Drives, 50 to 10300 A
∆
MASTER
DCS 500
n-Reg.
I-Reg.
C1
D1
SLAVE
DCS 500
I-Reg.
C1
D1
M
Interphase
reactor
for

Advertisement

Table of Contents
loading

Related Manuals for ABB DCS 500

Summary of Contents for ABB DCS 500

  • Page 1 DCS 500 PLANNING AND START-UP 12-Pulse Power Converters DC Drives, 50 to 10300 A ∆ SLAVE MASTER DCF 500 DCS 500 DCS 500 n-Reg. I-Reg. I-Reg. Interphase reactor...
  • Page 2 12-Pulse Power Converters DC Drives 50 to 10300 A PLANNING AND START-UP Code: 3ADW 000 040 R0101 Rev A IND/AME: 12p_e.doc EFFECTIVE: 05.Nov.96 SUPERSEDES: ©1996 ABB Industrietechnik AG. All rights reserved.

  • Page 3: Table Of Contents

    Group 111: New signals (existing group) ..............5-1 Group 36: 12-pulse (new) ..................5-1 Group 136: 12-pulse (new) ..................5-3 Chapter 6 - Start-Up Master ........................6-1 Slave ..........................6-1 12-pulse mode ......................6-2 Parameterizing for 12-pulse mode ................6-3 Master.......................6-3 12-pulse mode....................6-3 Output A02 ......................6-3 DCS 500 12-Pulse Planning and Start-Up...
  • Page 4 Contents Input AI2 ......................6-3 Current monitoring .....................6-3 Slave .........................6-3 12-pulse mode ....................6-3 Output A02 ......................6-4 Input AI2 ......................6-4 Appendix Connection example DCS 500 12-Pulse Planning and Start-Up...

  • Page 5: 12-Pulse Power Converters

    This chapter describes the correct procedural approach for planing work. Chapter 5 - Parameters and signals This chapter describes the parameters and signals of a DCS 500 12-pulse power converter. Chapter 6 -Start-Up This chapter describes the start-up procedure, and contains the setting values for parameters in 12-pulse mode, plus the relevant values for assigning the input and output signals.

  • Page 6: Target Group

    ABB representative, or contact ABB Industrietechnik AG in Lampertheim, Ger- many, directly. The technical data and specifications are valid at the time of going to press. ABB reserves the right to make subsequent alterations. Warnings, cautions and...
  • Page 7 Informational notes supply additional and useful information for the operating staff. Although they are not so urgent and imperative as the warnings and cautions, these informational notes are nonethe- less important, and should be heeded.. DCS 500 12-Pulse Planning and Start-Up 1 - 3...
  • Page 8 Chapter 1 - Introduction 1 - 4 DCS 500 12-Pulse Planning and Start-Up...

  • Page 9: Overview

    This manual must be consulted for 12-pulse mode in addition to the following DCS 500 manuals: DCS 500 Start-up Instructions DCS 500 Installation and Start-Up Manual DCS 500 Programming Manual DCS 500 12-Pulse Planning and Start-Up 2 - 1...
  • Page 10 Chapter 2 - Overview 2 - 2 DCS 500 12-Pulse Planning and Start-Up...

  • Page 11: Functional Description

    Block diagram The signals and parameter settings depicted in the diagram are re- quired for a speed-controlled 12-pulse drive with DCS 500 in a Master-Slave configuration. The function block shown is included in the basic software, and is activated when required using Parameter 1209.

  • Page 12: Switch-On/Switch-Off Logic

    Both units work more or less independently, controlling their own line contactors and the enables. Switch-on/switch-off For the DCS 500 in its 12-pulse mode, an additional logic is pro- logic vided, which in the event of an error will disable both units through the INHIBIT input of the drive logic.

  • Page 13: Dynamic Response

    Terminals X4:8 (Master) and X3:8 (Slave) must be connected to each other using a cable of >1 mm². For the 12-pulse function, the current limitation parameters (406), (2307) and (2308) must all be set to the same size. DCS 500 12-Pulse Planning and Start-Up 3 - 3...
  • Page 14 Chapter 6 “Start-Up” . This also contains a proposal for the switch-on/switch-off logic, which can be customízed by the user to suit his/her own requirements. 3 - 4 DCS 500 12-Pulse Planning and Start-Up...

  • Page 15: Error Messages

    The current differential to be set in per cent using Parameter 3605 is referenced to the motor current involved. 3605 − ≥ × Master Slave Master Slave Error 66 causes the drive to be switched off. See Chapter 5, “Parameters and signals” DCS 500 12-Pulse Planning and Start-Up 3 - 5...

  • Page 16: Control Structure

    ARM CURR PI KI ARM CONT CUR LIM 12308 ARM ALPHA LIM MAX ARM ALPHA LIM MIN ARM L ARM R 3604 [PP_CURR_SLAVE] 1209 OPER_SYS TSYN TORQUE/CURRENT LIMITER FIGURE 5(9) CURRENT CONTROL 3 - 6 DCS 500 12-Pulse Planning and Start-Up...

  • Page 17: Chapter 4 -Planning

    - a transformer with two identical secondary windings offset by 30 degrees (same voltage and current) - two identical 6-pulse power converters (DCS 500 standard), se- lected for half the motor’s rated current (same voltage and current) - a current-balancing reactor (interphase reactor) with centre tap...

  • Page 18: Planning Hints

    60 degrees per valve. The inter- phase reactor can be dimensioned by the vendor. Field supply For the field supply, all field supply units from the DCS 500/DCV 700 series can be used. 4 - 2...

  • Page 19: Chapter 5 - Parameters And Signals

    - Must have the same setting at Master and Slave - Must be greater than the sum of 3601 and 3602 3603 P: U2 SC: NUM HL: 250 LL: 1 D: 10 U: - DCS 500 12-Pulse Planning and Start-Up 5 - 1...
  • Page 20 PP_X18_10 - The signal passed to this pointer is outputted at Plug Connector X18:10 - Operative in all modes 3612 P: I2 HL: 19999 LL: 0 D: 0 U: - POINTER 5 - 2 DCS 500 12-Pulse Planning and Start-Up...

  • Page 21: Group 136: 12-Pulse (New)

    - Scaling: half of each current is added together, so that 100 % corresponds to the system’s total current. - operative only at Master read only 13604 P:I2 SC: IA1 IREF1 - Current reference before limitation logic read only 13605 P:I2 TORQUE DCS 500 12-Pulse Planning and Start-Up 5 - 3...
  • Page 22 - Indicate bridge of Slave 0 = Bridge 1 active - Operative in Master only read only 13612 P:U2 BOOLEAN REV_INDIC - Indicate bridge reversal -1 = Bridge reversal running read only 13613 P:U2 BOOLEAN 5 - 4 DCS 500 12-Pulse Planning and Start-Up...
  • Page 23 - Signal from Plug Connector X18:15 - Operative in all modes read only 13619 P:U2 BOOLEAN X18_16 - Signal from Plug Connector X18:16 - Operative in all modes read only 13620 P:U2 BOOLEAN DCS 500 12-Pulse Planning and Start-Up 5 - 5...
  • Page 24 Chapter 5 - Parameter and Signals 5 - 6 DCS 500 12-Pulse Planning and Start-Up...

  • Page 25: Chapter 6 - Start-Up

    For instructions on start-up, please consult the Installation and Start-up Manual (DCS 500). It is best to disconnect the non-active unit from the mains, or at least to disable it by suppressing the firing pulses. The interphase reactor can remain connected throughout the entire start-up procedure.

  • Page 26: 12-Pulse Mode

    - Optimize the speed controller parameters in the master. - Set/check the parameters for the monitoring functions. - Check the current distribution. - Check the error messages and the safety shutdown functions. 6 - 2 DCS 500 12-Pulse Planning and Start-Up...

  • Page 27: Parameterizing For 12-Pulse Mode

    Assignment for X18:9 3612 PP_X18_10 13609 Assignment for X18:10 3608 PP_ISO_LOG 13617 Logic for current reference po- larity 3609 PP_BRI_LOG Logic for Error 65 - Error at bridge reversal 3610 PP_REV_LOG 13618 Logic for reversing DCS 500 12-Pulse Planning and Start-Up...
  • Page 28 RUN command at X18:12 3607 PP_INH_LOG 13619 Input to switch-off logic of X18:15 START_INHIBIT 13616 From switch-off logic, 12-pulse to drive logic RUN1 13620 Enable for switch-off logic, 12- pulse to drive logic 6 - 4 DCS 500 12-Pulse Planning and Start-Up...
  • Page 29 Appendix Connection example DCS 500 12-Pulse Planning and Start-Up A1 -1...
  • Page 30 Appendix Connection example (continued) A1 -2 DCS 500 12-Pulse Planning and Start-Up...
  • Page 31 _______________________________________________________________________________ ABB Industrietechnik AG Drive Systems Division P.O. Box 1180 D-68619 Lampertheim Telephone: +49 (6206) 5 03-0 Fax: +49 (6206) 5 03-5 63 Telex 4 62 411605 ab d...
