Trend Common Slots Screen; Figure 42 - Common Slots Screen - Johnson Controls YORK OPTIVIEW CONTROL CENTER Operation Manual

FORM 160.10-O1
ISSUE DATE: 4/27/2018

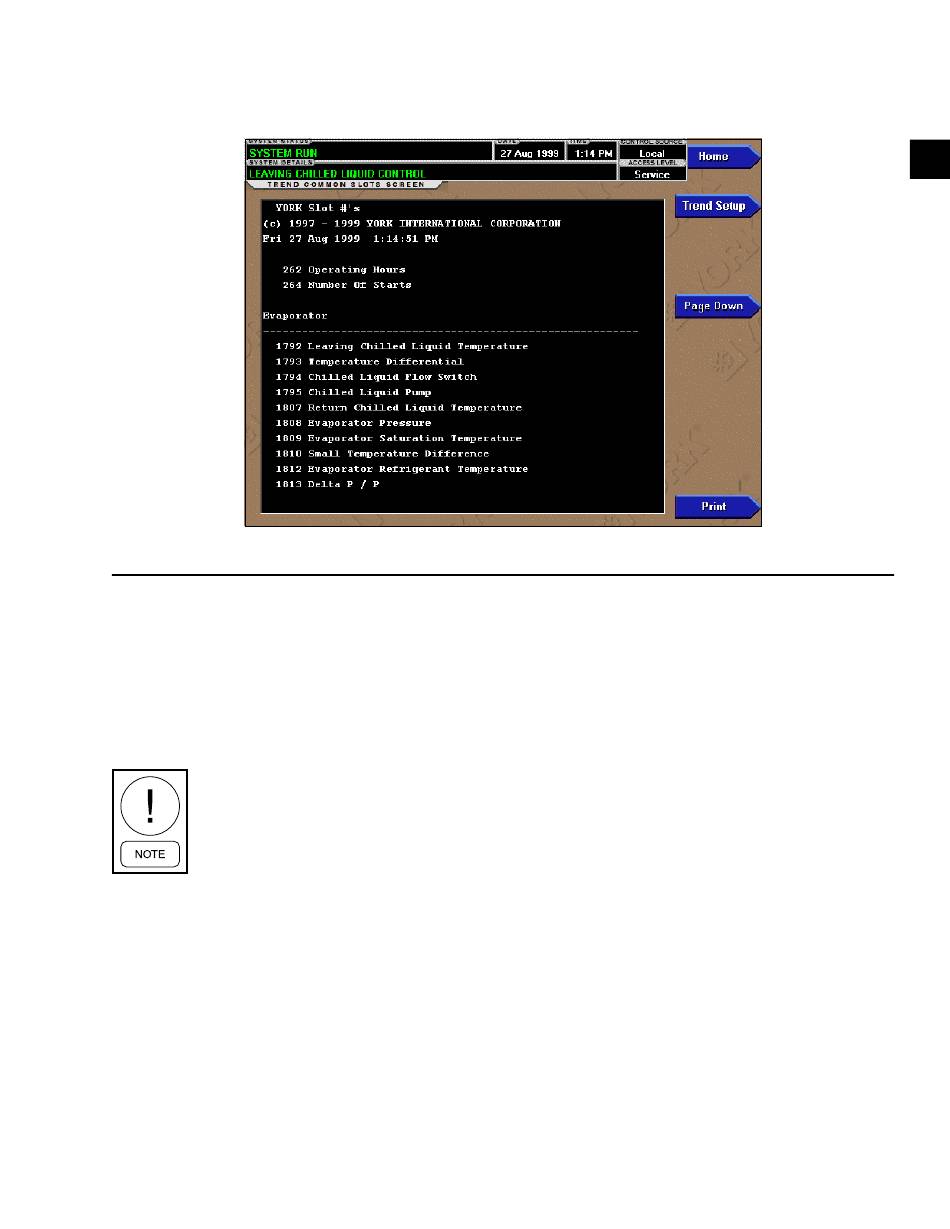

FIGURE 42 - COMMON SLOTS SCREEN

OVERVIEW
This screen displays the slot numbers of the commonly
monitored parameters used for trending or custom view
and are listed on this screen by chiller component. The
slot numbers for the remainder of the available param-
eters are listed on the "Master Slot Numbers List".
This screen requires a login access level
of OPERATOR or higher to view.
DISPLAY ONLY
Slot Numbers
These are the slot numbers of the most commonly used
parameters.
PROGRAMMABLE
Print
Generates a list of the slot numbers for the available
parameters.
JOHNSON CONTROLS

TREND COMMON SLOTS SCREEN

SECTION 2 - OPTIVIEW OPERATION
NAVIGATION
Page Down
Access Level Required: OPERATOR
Scroll down in the displayed data.
Page Up
Access Level Required: OPERATOR
Scroll up in the displayed data.
Home
Access Level Required: VIEW
Returns the display to the Home screen.
Trend Setup
Access Level Required: OPERATOR
Returns the display to the Trend Setup screen.
MASTER SLOT NUMBER LIST (FOR USE
WITH THE TREND FEATURE)
Table 1 provides a listing of slot numbers and their
descriptions.
