SECTION 2 - OPTIVIEW OPERATION

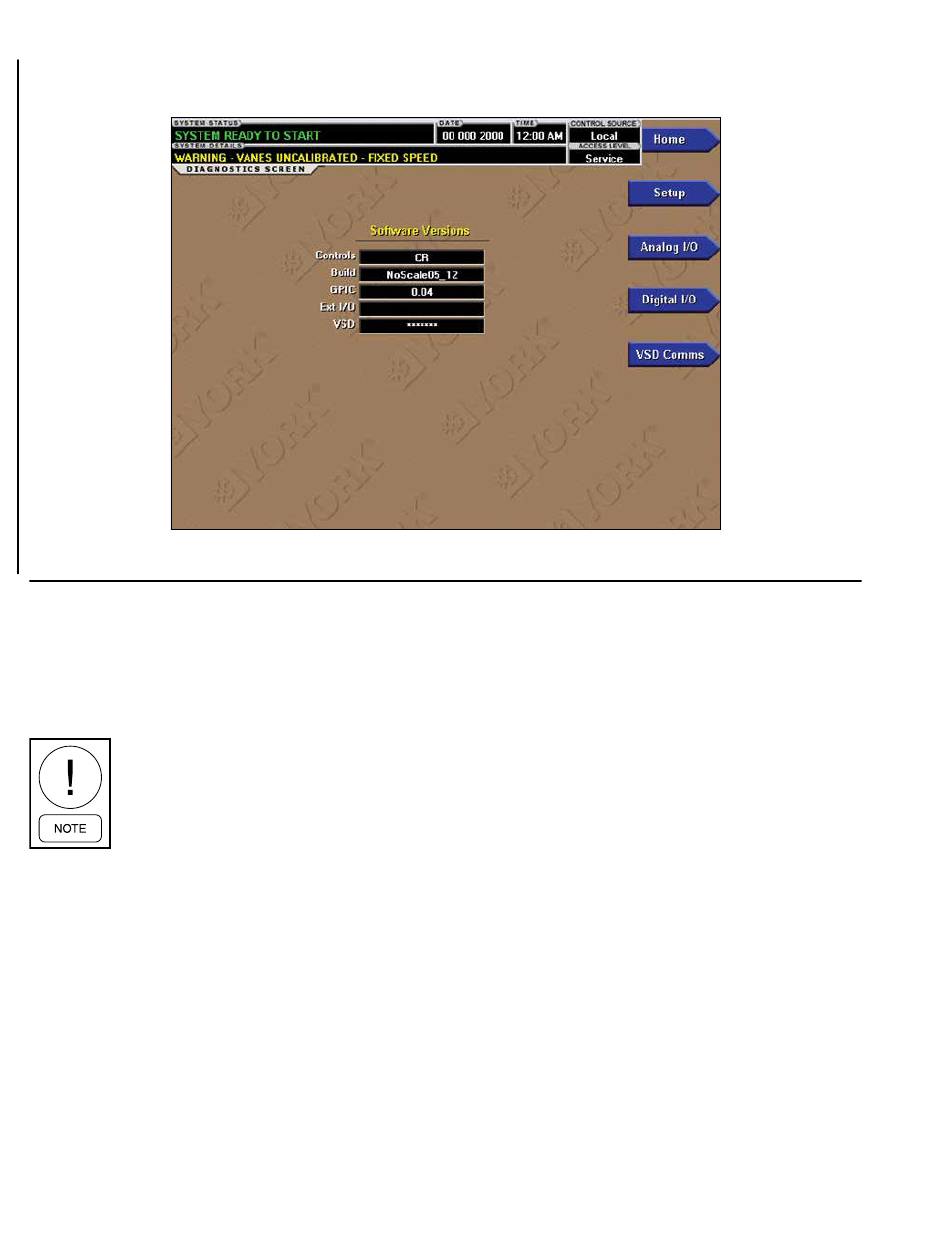

FIGURE 31 - DIAGNOSTICS SCREEN

OVERVIEW
The Diagnostics screen identifies software version in-
formation. This screen also serves as a gateway to view
analog and digital input/output screens.
Requires a login access level of SERVICE
to view. Service technicians refer to Op-
tiView Control Center Retrofit Kit - Trane
Service Manual (Form 160.10-M1) for
further explanation of displayed values.
DISPLAY ONLY
Controls
Displays version of flash software installed/loaded into
the microboard.
BIOS (Basic Input/Output Software)
Displays the version of the BIOS EPROM installed in
the microboard.
Kernal
Displays the operating system core components in-
stalled/loaded into the microboard.
80

DIAGNOSTICS SCREEN

GPIC
Displays the EPROM installed in the MicroGateway,
as equipped.
PROGRAMMABLE
None
NAVIGATION
Home
Access Level Required: VIEW
Returns the display to the Home screen.
Setup
Access Level Required: VIEW
Returns the display to the Setup screen.
Analog I/O
Access Level Required: SERVICE
Advances to a sub-screen which details voltage levels
and counts for internal and external analog inputs.
FORM 160.10-O1
ISSUE DATE: 4/27/2018
LD26951
JOHNSON CONTROLS
