FORM 160.10-O1
ISSUE DATE: 4/27/2018

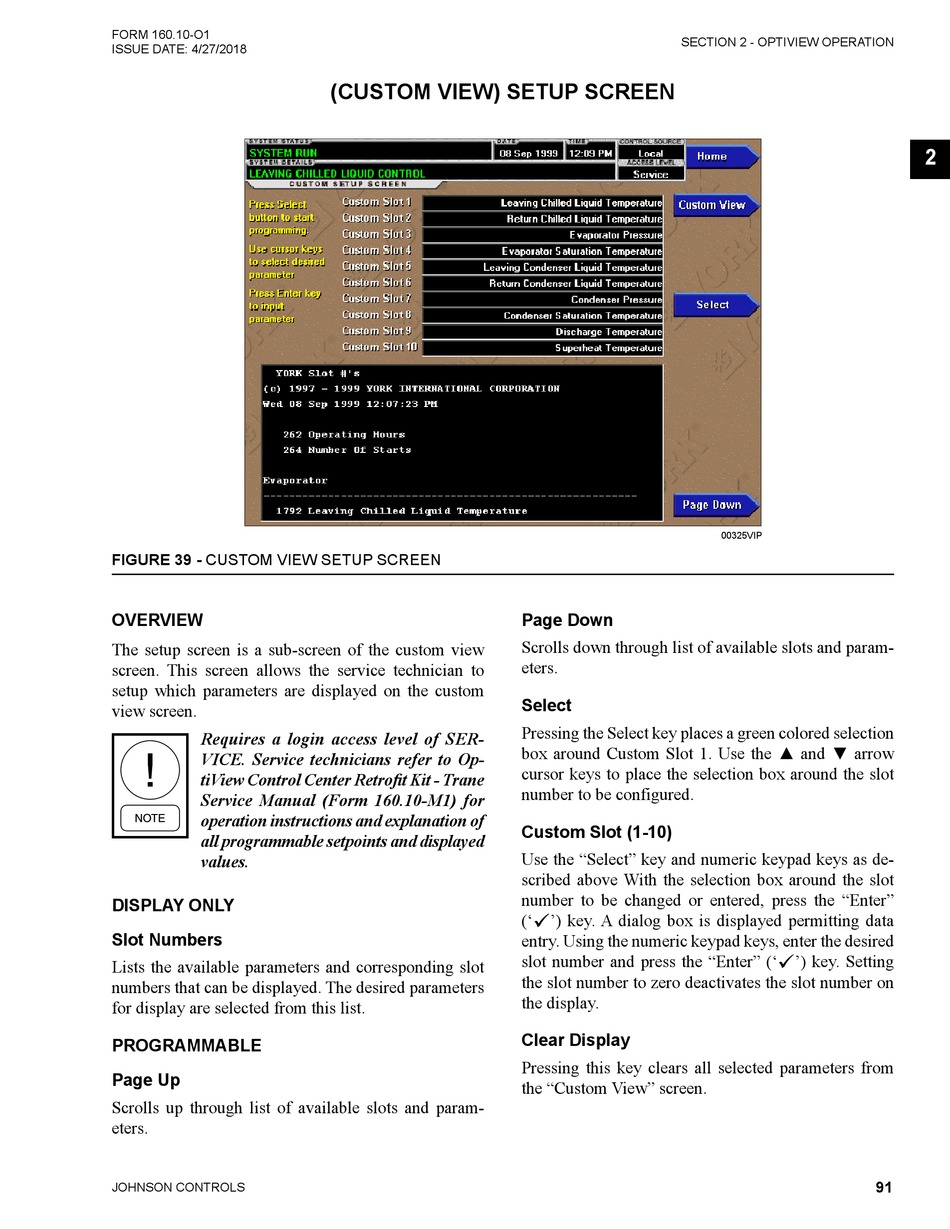

FIGURE 39 - CUSTOM VIEW SETUP SCREEN

OVERVIEW
The setup screen is a sub-screen of the custom view
screen. This screen allows the service technician to
setup which parameters are displayed on the custom
view screen.
Requires a login access level of SER-
VICE. Service technicians refer to Op-
tiView Control Center Retrofit Kit - Trane
Service Manual (Form 160.10-M1) for
operation instructions and explanation of
all programmable setpoints and displayed
values.
DISPLAY ONLY
Slot Numbers
Lists the available parameters and corresponding slot
numbers that can be displayed. The desired parameters
for display are selected from this list.
PROGRAMMABLE
Page Up
Scrolls up through list of available slots and param-
eters.
JOHNSON CONTROLS

(CUSTOM VIEW) SETUP SCREEN

SECTION 2 - OPTIVIEW OPERATION
Page Down
Scrolls down through list of available slots and param-
eters.
Select
Pressing the Select key places a green colored selection
box around Custom Slot 1. Use the ▲ and ▼ arrow
cursor keys to place the selection box around the slot
number to be configured.
Custom Slot (1-10)
Use the "Select" key and numeric keypad keys as de-
scribed above With the selection box around the slot
number to be changed or entered, press the "Enter"
(' ') key. A dialog box is displayed permitting data
ü
entry. Using the numeric keypad keys, enter the desired
slot number and press the "Enter" ('
the slot number to zero deactivates the slot number on
the display.
Clear Display
Pressing this key clears all selected parameters from
the "Custom View" screen.
00325VIP
') key. Setting
ü
