SECTION 2 - OPTIVIEW OPERATION

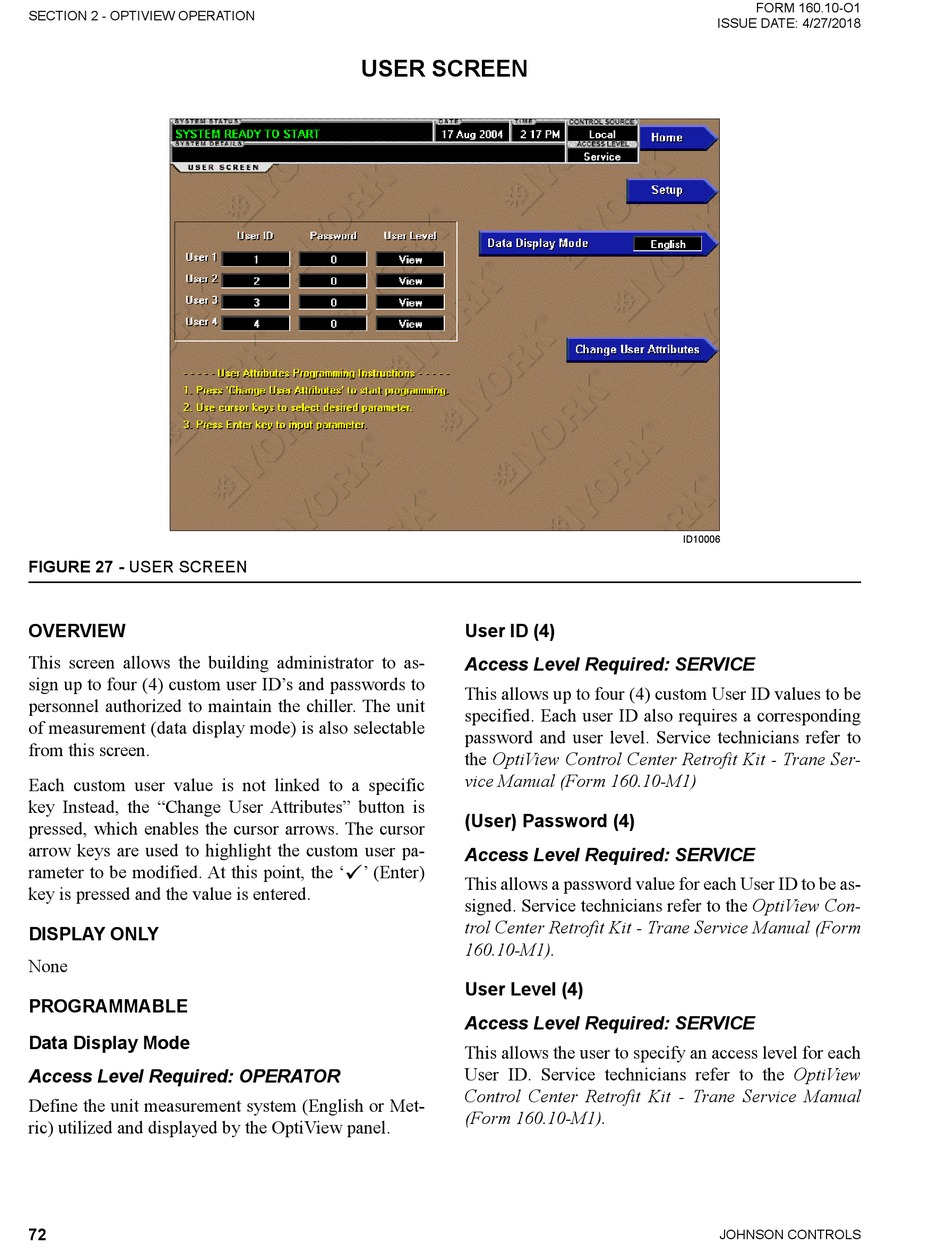

FIGURE 27 - USER SCREEN

OVERVIEW
This screen allows the building administrator to as-
sign up to four (4) custom user ID's and passwords to
personnel authorized to maintain the chiller. The unit
of measurement (data display mode) is also selectable
from this screen.
Each custom user value is not linked to a specific
key Instead, the "Change User Attributes" button is
pressed, which enables the cursor arrows. The cursor
arrow keys are used to highlight the custom user pa-
rameter to be modified. At this point, the '
key is pressed and the value is entered.
DISPLAY ONLY
None
PROGRAMMABLE
Data Display Mode
Access Level Required: OPERATOR
Define the unit measurement system (English or Met-
ric) utilized and displayed by the OptiView panel.
72

USER SCREEN

User ID (4)
Access Level Required: SERVICE
This allows up to four (4) custom User ID values to be
specified. Each user ID also requires a corresponding
password and user level. Service technicians refer to
the OptiView Control Center Retrofit Kit - Trane Ser-
vice Manual (Form 160.10-M1)
(User) Password (4)
Access Level Required: SERVICE
' (Enter)
ü
This allows a password value for each User ID to be as-
signed. Service technicians refer to the OptiView Con-
trol Center Retrofit Kit - Trane Service Manual (Form
160.10-M1).
User Level (4)
Access Level Required: SERVICE
This allows the user to specify an access level for each
User ID. Service technicians refer to the OptiView
Control Center Retrofit Kit - Trane Service Manual
(Form 160.10-M1).
FORM 160.10-O1
ISSUE DATE: 4/27/2018
ID10006
JOHNSON CONTROLS
