SECTION 2 - OPTIVIEW OPERATION

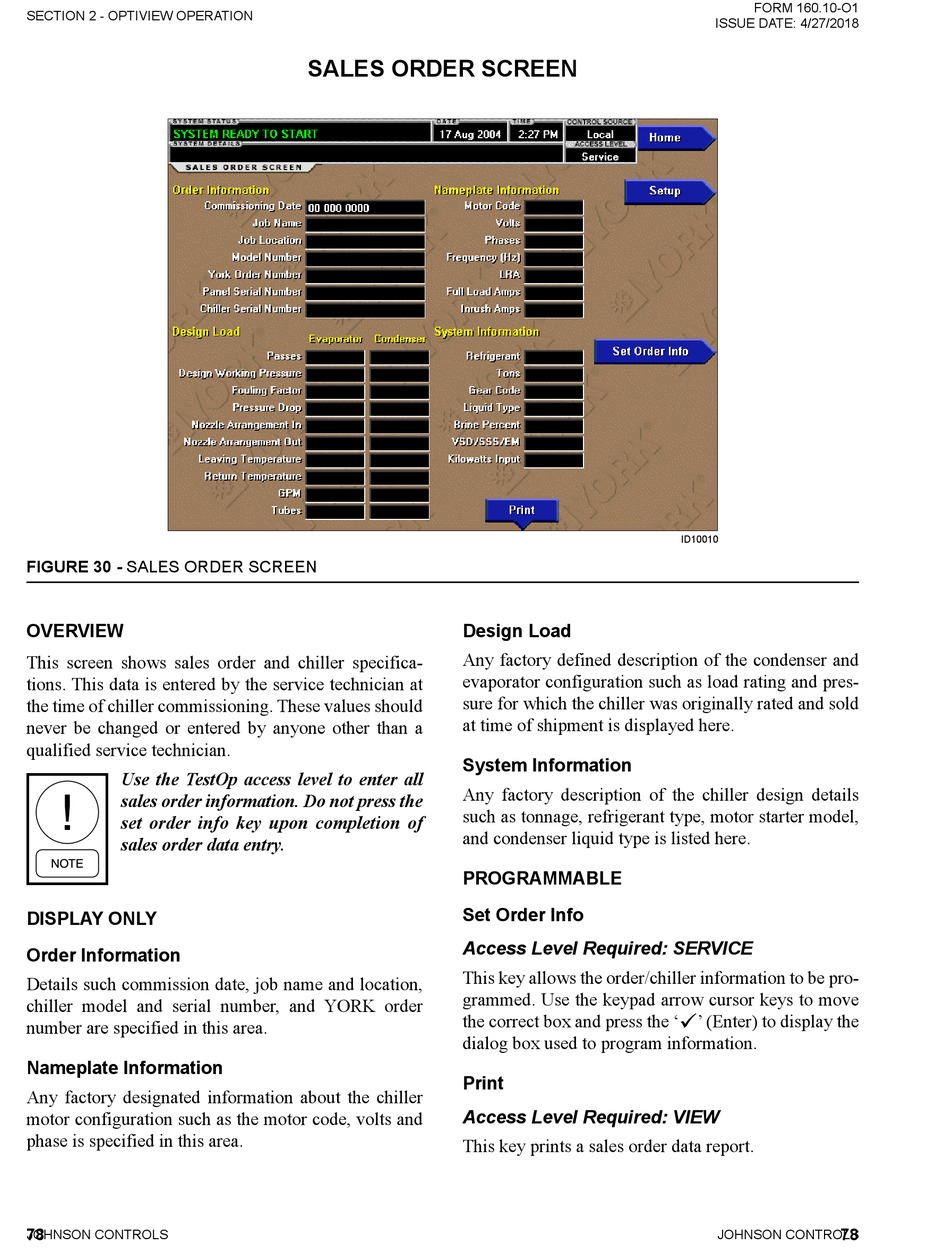

FIGURE 30 - SALES ORDER SCREEN

OVERVIEW
This screen shows sales order and chiller specifica-
tions. This data is entered by the service technician at
the time of chiller commissioning. These values should
never be changed or entered by anyone other than a
qualified service technician.
Use the TestOp access level to enter all
sales order information. Do not press the
set order info key upon completion of
sales order data entry.
DISPLAY ONLY
Order Information
Details such commission date, job name and location,
chiller model and serial number, and YORK order
number are specified in this area.
Nameplate Information
Any factory designated information about the chiller
motor configuration such as the motor code, volts and
phase is specified in this area.
78
JOHNSON CONTROLS

SALES ORDER SCREEN

Design Load
Any factory defined description of the condenser and
evaporator configuration such as load rating and pres-
sure for which the chiller was originally rated and sold
at time of shipment is displayed here.
System Information
Any factory description of the chiller design details
such as tonnage, refrigerant type, motor starter model,
and condenser liquid type is listed here.
PROGRAMMABLE
Set Order Info
Access Level Required: SERVICE
This key allows the order/chiller information to be pro-
grammed. Use the keypad arrow cursor keys to move
the correct box and press the '
dialog box used to program information.
Print
Access Level Required: VIEW
This key prints a sales order data report.
