1 Installing the Router
gether with the Female RJ45-Female DB9 adapter, also provided with the device. In cases where the terminal has
DB25 connectors, you must use an additional adapter.

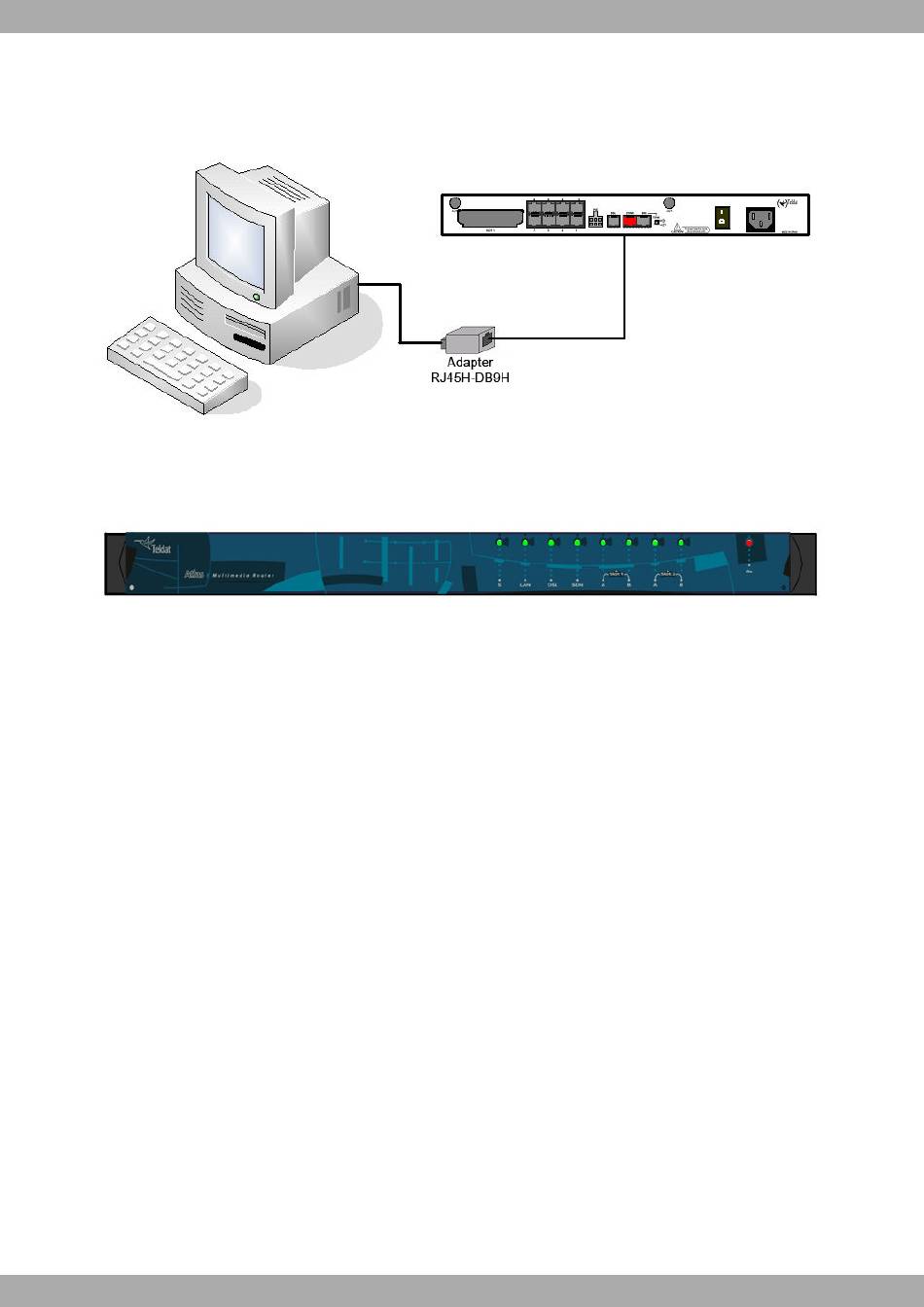

Configuration connection
Fig. 14:

1.3 Meaning of the LEDs

Front panel
Fig. 15:
8
Teldat S.A.
ATLAS 152
