Figure 5-2 Cr-Brick Block Diagram - Silicon Graphics SGI Altix 3700 Bx2 User Manual

5: CR-brick
68
System On On/Off Switch
L1 Display
Service ReqÕd
Reset Switch
System Fault
NMI Switch
Node 0
Power
Rtr A 0
On/Off
XIO 1 Rtr B 3
Power
Node 3

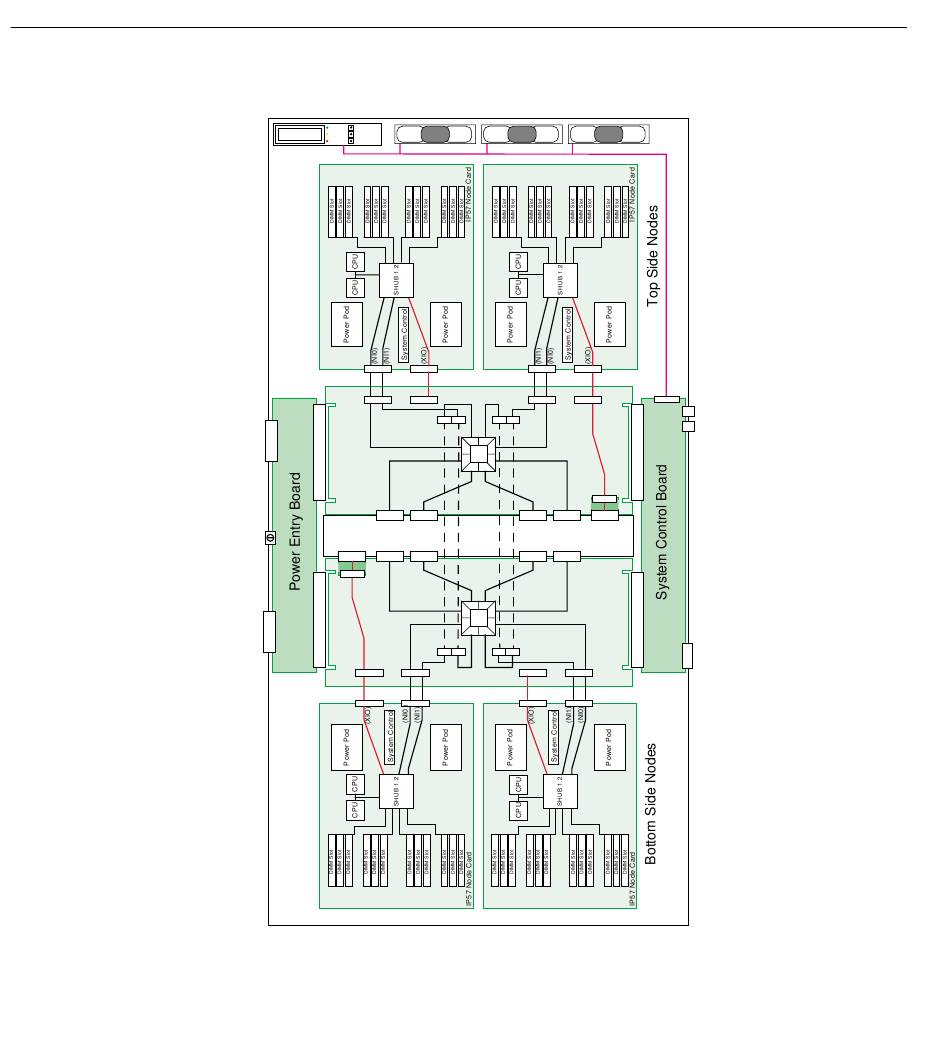

Figure 5-2 CR-brick Block Diagram
Brick Front
Node 1
Top Side Router
E B
D Rtr C
A
A
F
G H
Rtr A 1 Rtr A 2 Rtr A 3
Rtr B 2 Rtr B 1 Rtr B 0
H G
A Rtr F
B
D
C
B E
Bottom Side Router
Node 2
USB
USB
XIO 0
Console
