9. When you finish installing the drive carrier module(s), lock the drive carrier
module(s) in the chassis by inserting the Torx screwdriver in the drive module and
turning it 90 degrees clockwise. The indicator in the drive carrier module turns red
when the drive is locked. See Figure 12-19.

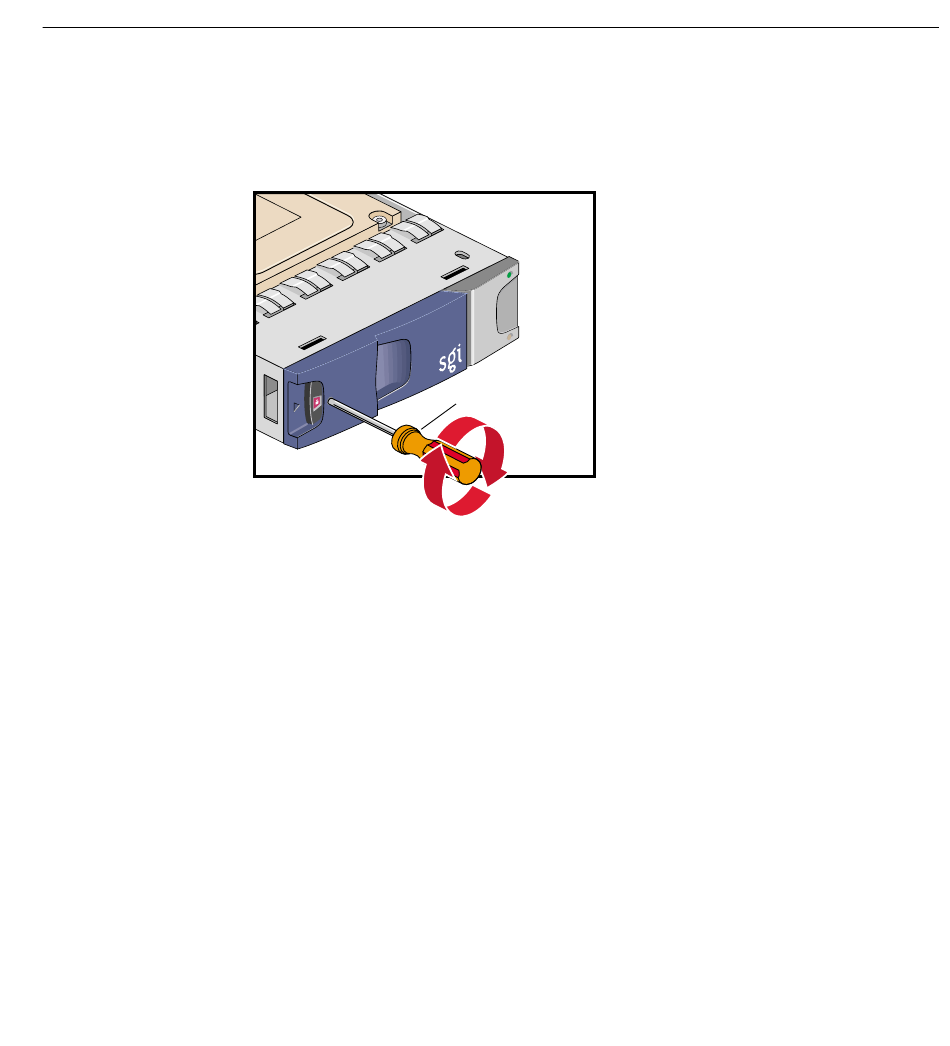

Figure 12-19 Locking the Drive Carrier Module
10. Install dummy drive carrier modules in all empty drive bays. The drive handle and
camming mechanisms operate the same as those in a standard drive carrier module.
Installing or Replacing a D-brick2 Drive Carrier Module
Torx screwdriver
