Figure 12-16 Unlocking The Drive Carrier Module - Silicon Graphics SGI Altix 3700 Bx2 User Manual

12: Maintenance and Upgrade Procedures
154
3. Place the drive carrier module on an antistatic work surface and ensure that the
anti-tamper lock is disengaged (unlocked). The indicator window is red when the
drive is locked. A disk drive module cannot be installed if its anti-tamper lock is
activated (locked) outside the enclosure.
Drives are shipped with their locks set in the unlocked position. However, if a drive
is locked, insert the Torx screwdriver (included with the disk drive) into the socket
in the lower part of the handle trim and turn it 90 degrees counterclockwise until
the indicator visible in the center aperture of the handle shows black. See
Figure 12-16.

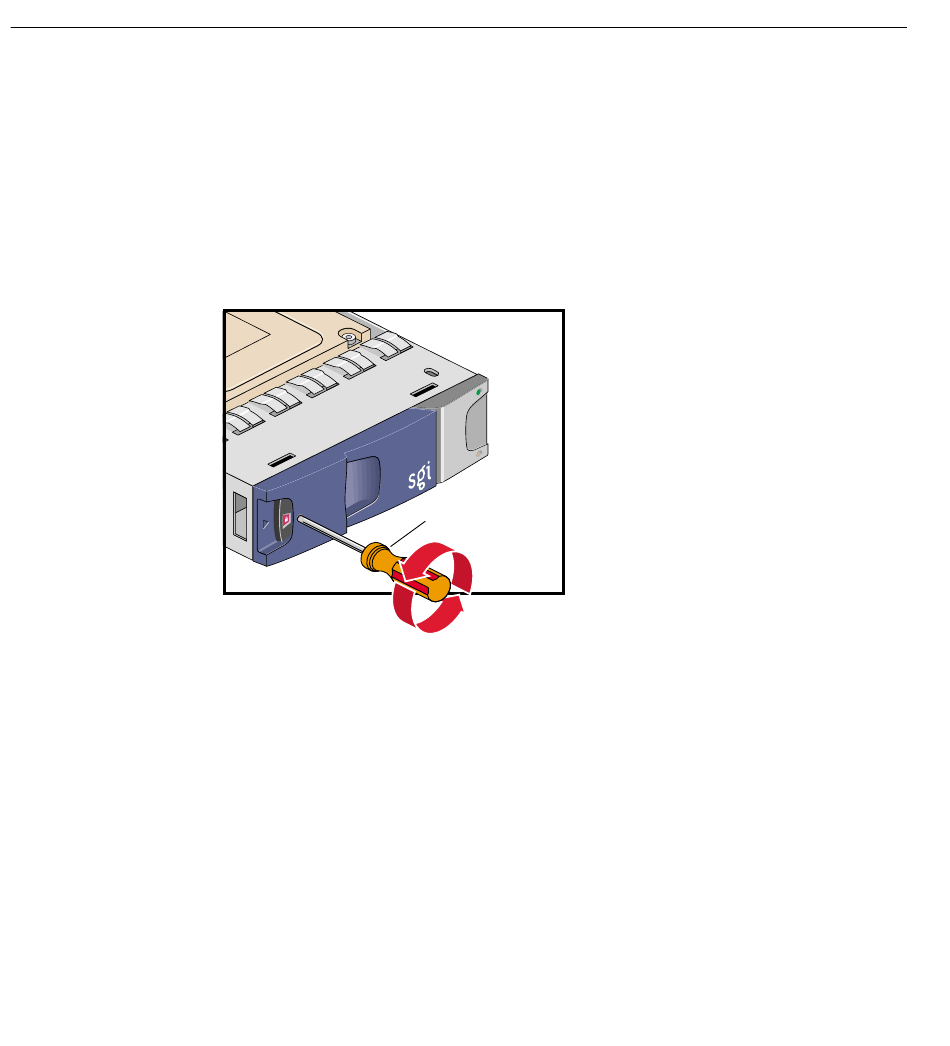

Figure 12-16 Unlocking the Drive Carrier Module
Torx screwdriver
