007-4377-002
5. Release the handle of the replacement carrier by pressing the latch in the handle
towards the right, as shown in Figure 12-14. Insert the carrier into the enclosure.

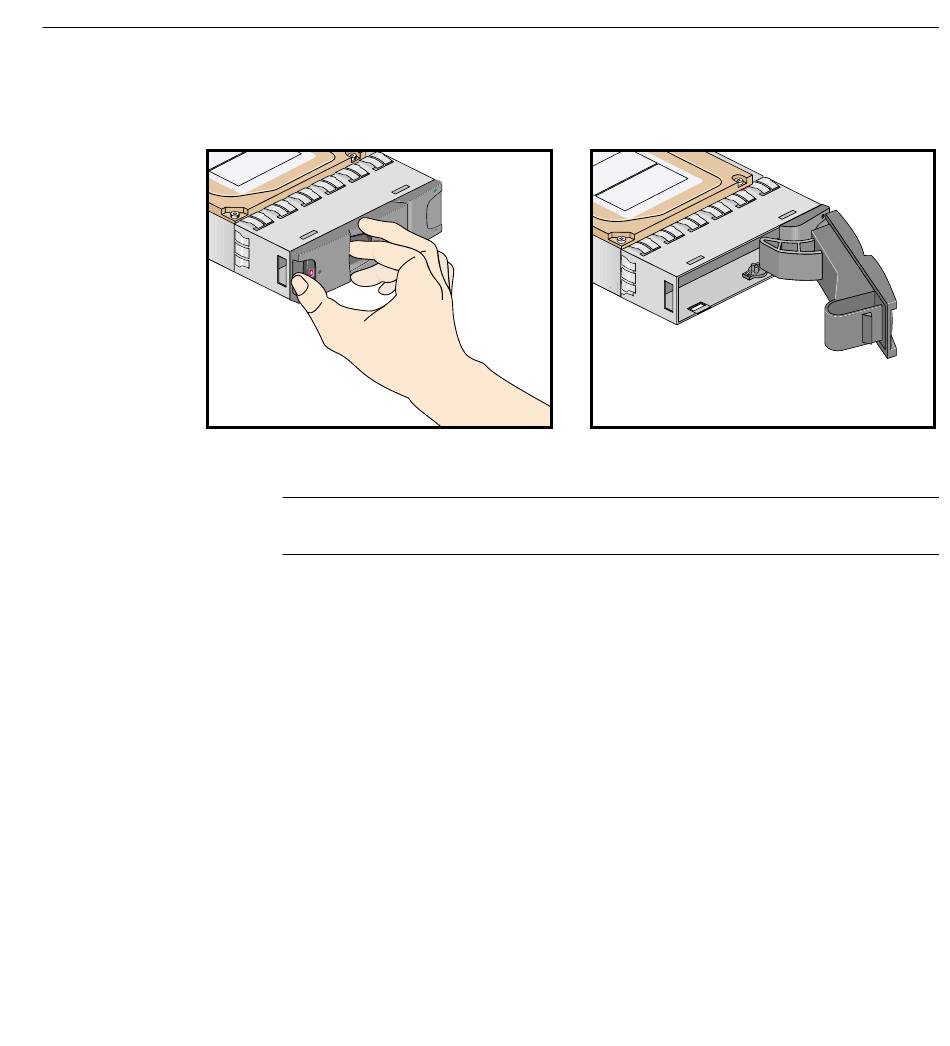

Figure 12-14 Releasing the Carrier Handle
Important: Ensure that the carrier is oriented so that the drive is uppermost and the
handle opens from the left.
Replacing a TP900 Drive Carrier Module
151
