3: System Overview
48
Figure 3-2

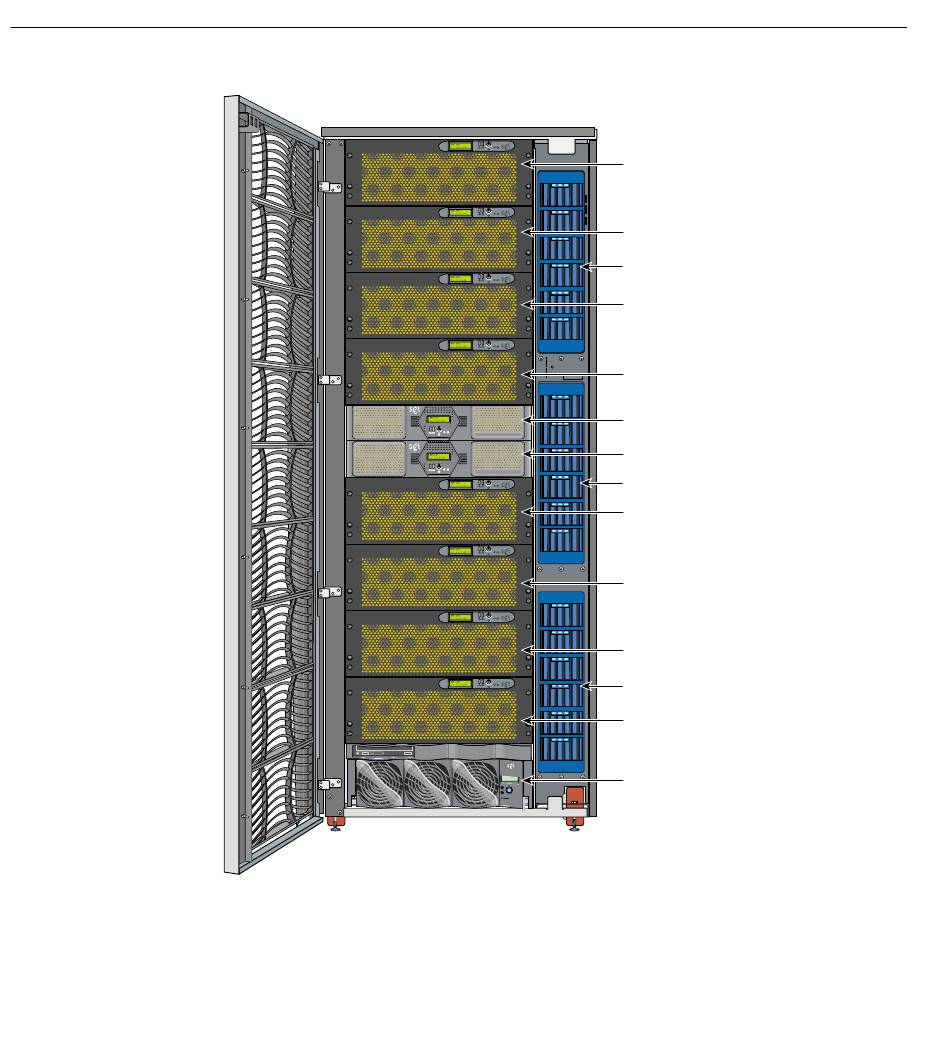

SGI Altix 3700 Bx2 Server System (Example Configuration)
CR-brick
CR-brick
Power bay
c
CR-brick
CR-brick
R-brick
R-brick
Power bay
CR-brick
CR-brick
CR-brick
Power bay
CR-brick
IX-brick
ix
007-4377-002
