6: IX-brick
IO9 card
SCSI connector
Power switch
48/12VDC LEDs
Ethernet connector
82
The leftmost PCI-X slot (bus 1, slot 1) seats a base I/O card that has the following
connectors:
• External SCSI connector. This 68-pin VHDCI external SCSI port enables you to
connect your system to an external SCSI device.
For an updated list of supported SCSI devices, see the SGI Supportfolio at
http://support.sgi.com.
• Ethernet RJ45 connector. This autonegotiating 10/100/1000BaseT Ethernet port
connects the system to an Ethernet network.
• RTO and RTI stereo jack connectors (Not used). The RTO (output) and RTI (input)
connectors are not supported under the current SGI Linux ProPack release.
48VDC
12VDC
PCI-X slot LEDs

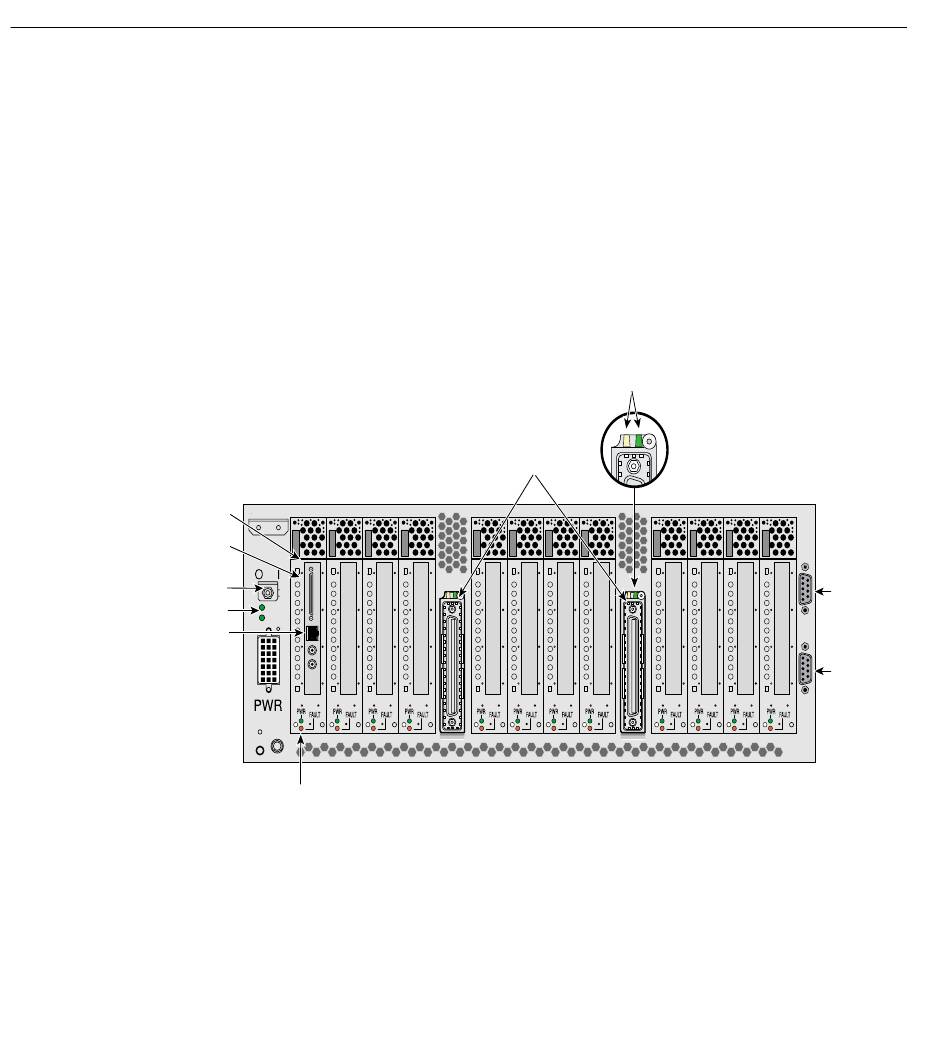

Rear Panel of IX-brick
Figure 6-4
One LED lights yellow,
the other lights green
XIO
Connectors
XIO 10 XIO 11
Serial port
connector 1
Serial port
connector 0
007-4377-002
