2: System Control

L1 Front Panel Display

22

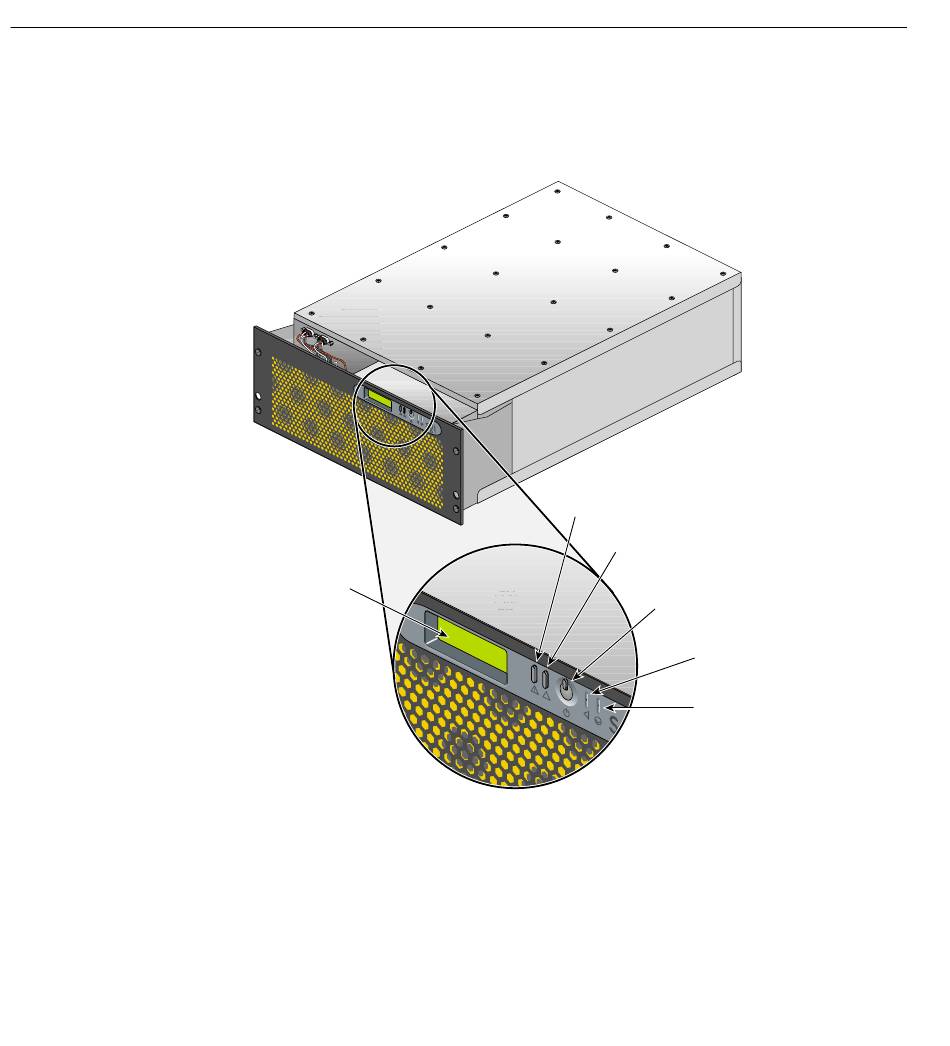

Figure 2-3 shows the L1 controller front panel on the CR-brick.
L1 controller display
Figure 2-3 L1 Front Panel
The front panel display contains the following items:
• 2 x 12 character liquid crystal display (LCD). The display identifies the brick, shows
system status, warns of required service, and identifies a failed component.
• Power (On/Off) switch with LED (button with light-emitting diode [LED]).
Failure LED
Service-required
LED
Power button
with LED
Reset
NMI
