12: Maintenance and Upgrade Procedures
138
4. If you are replacing a card, gently remove the existing card from the carrier.
If you are adding a card, extract the carrier metal filler plate by pushing down on it,
as shown in Figure 12-2. This filler plate covers the area where your card connectors
will protrude out to the rear panel of the I/O brick.

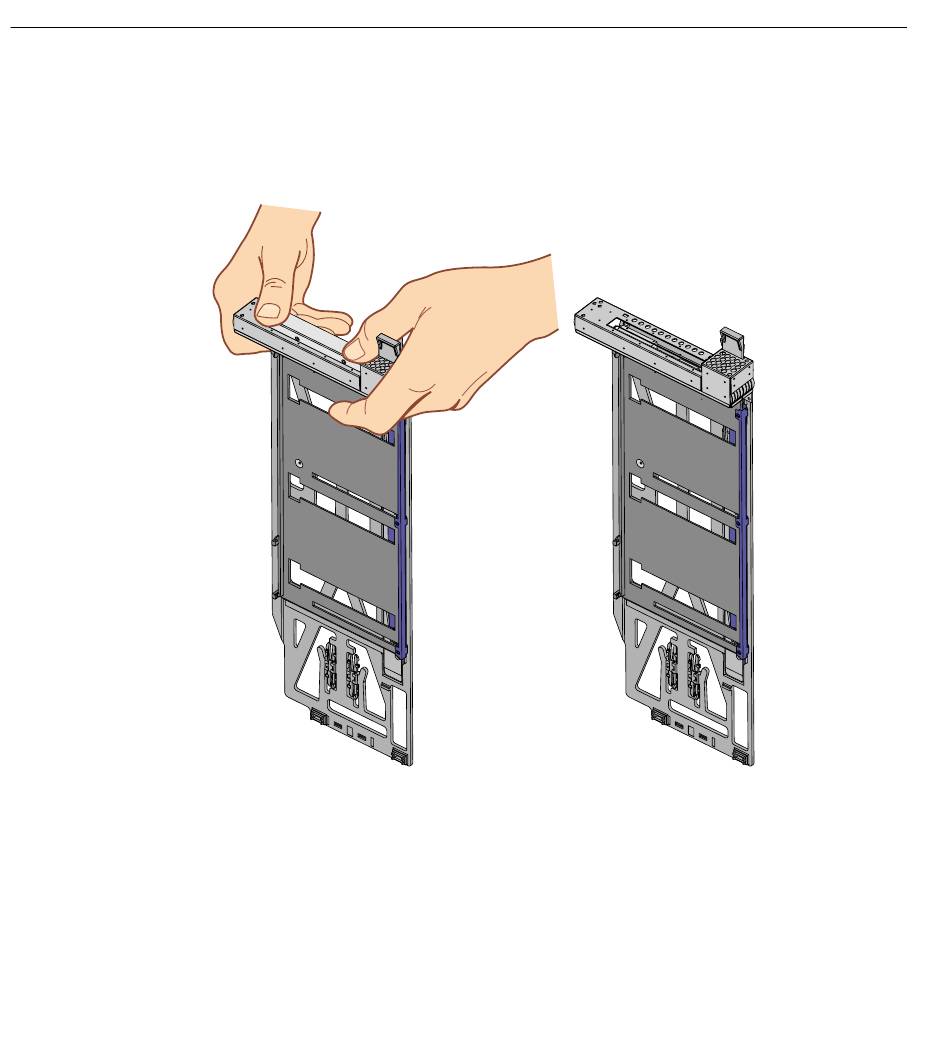

Figure 12-2 Extracting the Carrier Metal Filler Plate
007-4377-002
