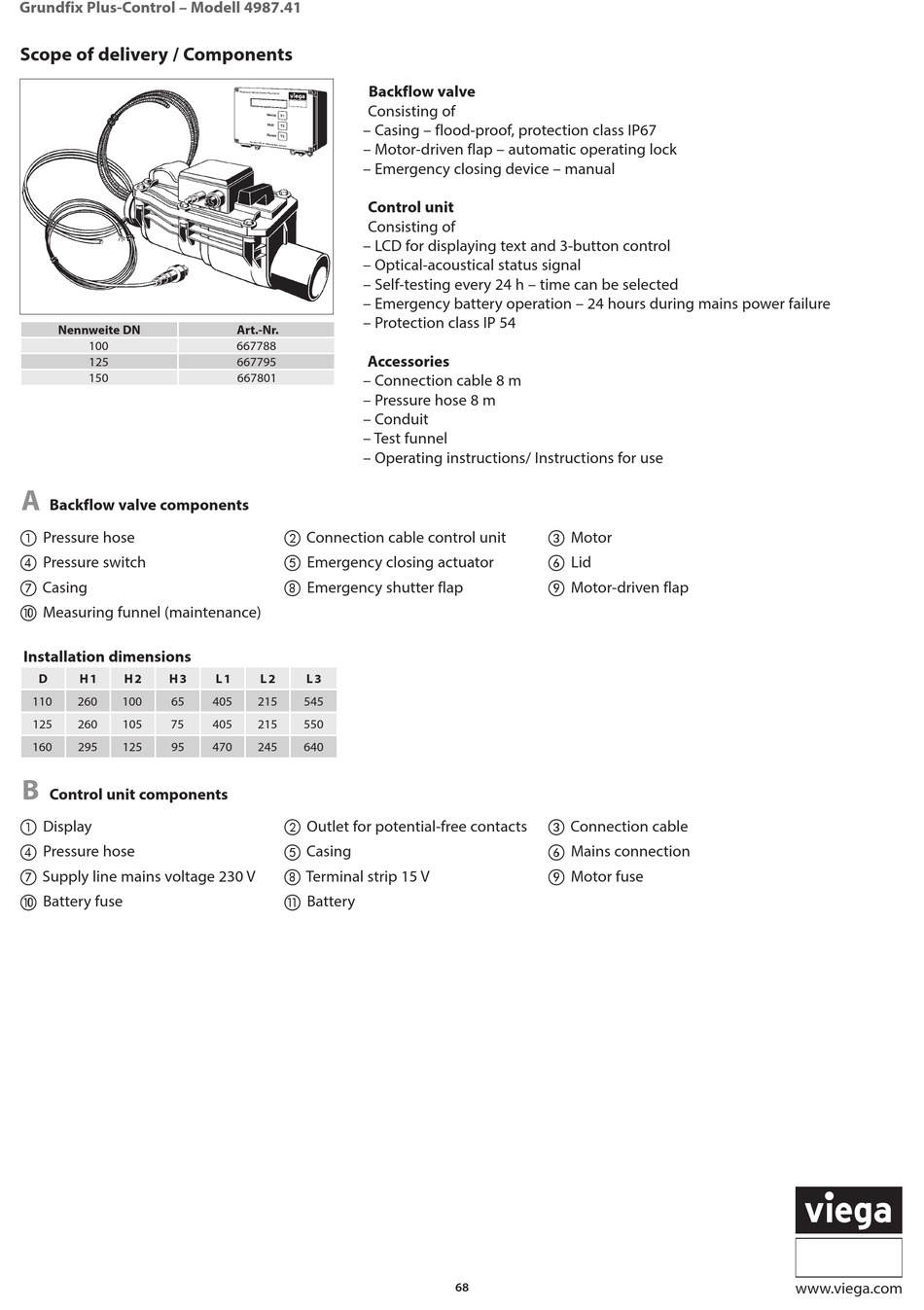

Grundfix Plus-Control – Modell 4987.41

Scope of delivery / Components

Nennweite DN
100
125
150
A
Backflow valve components
 Pressure hose
 Pressure switch
 Casing
 Measuring funnel (maintenance)
Installation dimensions
D H 1 H 2 H 3
110 260 100 65
125 260 105 75
160 295 125 95
B
Control unit components
 Display
 Pressure hose
 Supply line mains voltage 230 V
 Battery fuse
Backflow valve
Consisting of
– Casing – flood-proof, protection class IP67
– Motor-driven flap – automatic operating lock
– Emergency closing device – manual
Control unit
Consisting of
– LCD for displaying text and 3-button control
– Optical-acoustical status signal
– Self-testing every 24 h – time can be selected
– Emergency battery operation – 24 hours during mains power failure
– Protection class IP 54
Art.-Nr.
667788
Accessories
667795
667801 – Connection cable 8 m
– Pressure hose 8 m
– Conduit
– Test funnel
– Operating instructions/ Instructions for use
 Connection cable control unit
 Emergency closing actuator
 Emergency shutter flap
L 1 L 2 L 3
405 215 545
405 215 550
470 245 640
 Outlet for potential-free contacts
 Casing
 Terminal strip 15 V
 Battery
 Motor
 Lid
 Motor-driven flap
 Connection cable
 Mains connection
 Motor fuse
