Summary of Contents for Viega Easytop 2170

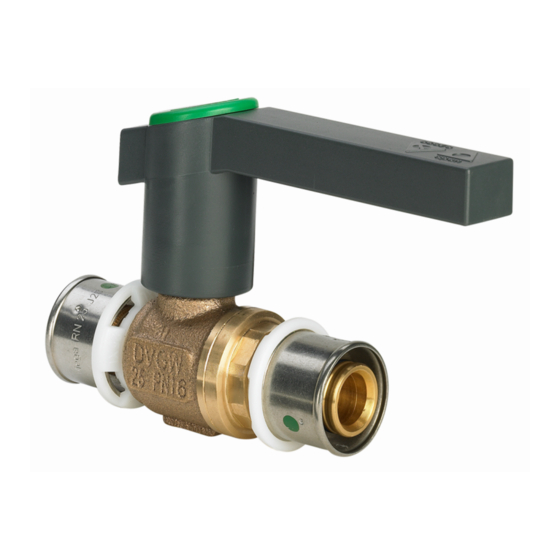

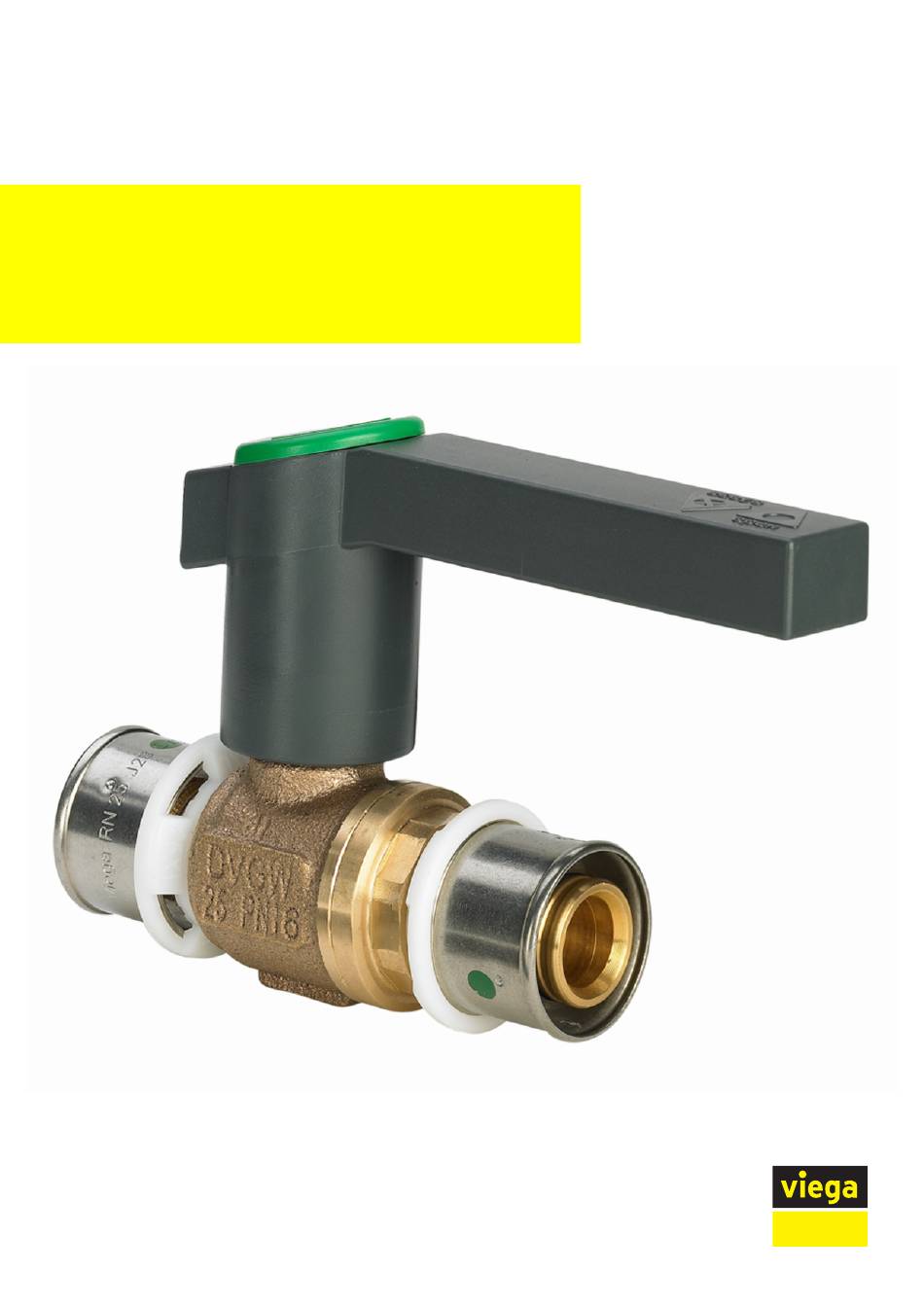

- Page 1 Easytop ball valve with SC-Contur Instructions for Use for drinking water and heating installation Model Year built: 2170 from 07/2007 en_INT...
- Page 2 Easytop ball valve with SC-Contur 2 from 19...
-
Page 3: Table Of Contents
Table of contents Table of contents About these instructions for use Target groups Labelling of notes About this translated version Product information Standards and regulations Intended use 2.2.1 Areas of use 2.2.2 Media Product description 2.3.1 Overview 2.3.2 Press connection with SC-Contur 2.3.3 Sealing elements 2.3.4... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e. -
Page 6: Product Information
Product information 2 Product information Standards and regulations The following standards and regulations apply to Germany / Europe and are provided as a support feature. Regulations from section: Fields of application Scope / Notice Regulations applicable in Ger‐ many Planning, execution, operation DIN EN 806, part 1 and maintenance of potable water installations... - Page 7 Product information Regulations from section: Product description Scope / Notice Regulations applicable in Ger‐ many Suitability for drinking water Trinkwasserverordnung (TrinkwV) installations Suitability for drinking water DIN 50930-6 installations Requirements in plastic compo‐ DVGW-Arbeitsblatt W270 nents in drinking water installa‐ tions Regulations from section: Overview Scope / Notice...
-
Page 8: Intended Use
DIN EN 806-5 potable water installations Intended use Coordinate the use of the model for areas of use and media other than those described with the Viega Service Center. 2.2.1 Areas of use Use is possible in the following areas among others:... -
Page 9: Product Description
Product information Product description According to the applicable regulations, Easytop system fittings can be used for all types of potable water and are DVGW certified, see Ä „Reg‐ ulations from section: Product description“ on page 7. Their plastic components comply with the KTW recommendation and the require‐ ments pursuant to the applicable regulations. -
Page 10: Sealing Elements
Product information Viega press connections are equipped with the SC-Contur. The SC- Contur is a safety technology that is certified by the DVGW and ensures that the connection is guaranteed to be leaky in an unpressed state. In this way, unpressed connections are noticed immediately during a leakage test. -
Page 11: Compatible Components
Product information DVGW writing green dot for potable water Position indicator on the actuating lever 2.3.5 Compatible components The model is equipped with Sanfix-P press connections and compatible with the Sanfix / Sanfix Fosta system. 2.3.6 Technical data Observe the following operating conditions for the installation of the model: Potable water Heating... -
Page 12: Optional Accessories
Product information Optional accessories The following optional accessories are available: actuating lever made of metal actuating lever made of plastic Protective caps for the actuating lever made of plastic in red and green for the identification of the corresponding area of use Insulating shells Fig. - Page 13 Product information Insulating shells EPS insulating shells are available for all sizes of ball valves. The two- piece shells are self-supporting and are mounted without tools and holding grips. They connect seamlessly to the front surfaces of the pipeline insulation. Fig.
-
Page 14: Handling
Handling 3 Handling Assembly information 3.1.1 Mounting instructions Checking system components Do not remove the model from the packaging until immedi‐ ately before use. System components may, in some cases, become damaged through transportation and storage. Check all parts. Replace damaged components. Do not repair damaged components. -
Page 15: Assembly
– 16 / 20 mm (model 2139.0) – 25 / 32 / 40 mm (model 2139.3) Fig. 6: Press jaws Recommended Viega press machines: Pressgun 5 Pressgun Picco Pressgun 4E / 4B Picco Type PT3-AH... -
Page 16: Calibrating The Pipes
Handling Dimensions 16–25 mm Cut the protective pipe to length using the protective pipe cutter (model 5341). Cut the pipe to length using a pipe shear. Make sure that the cut surface is clean and straight. Dimensions 32–63 mm Cut the pipe to length using a pipe cutter (model 2191). 3.2.2 Calibrating the pipes Easytop ball valve with SC-Contur... -
Page 17: Pressing The Connection
Handling Using the calibrating tool, prepare pipe ends ≥ 25 mm and deformed pipe ends before pressing. Push the calibrating tool in as far as it will go. Calibrate the pipe with turning movements. ð Pipe is calibrated. 3.2.3 Pressing the connection Information regarding the intervals can be found in the Sanfix / Sanfix Fosta system instructions for use. -
Page 18: Leakage Test
Handling Check the insertion depth in the inspection window. Open the press jaw and place at a right-angle onto the connector. Start the pressing procedure. ð Connection is pressed. 3.2.4 Leakage test The installer must perform a leakage test before commissioning. Carry out this test on a system that is finished but not yet covered. -
Page 19: Disposal
Handling Viega recommends actuating the fitting regularly and checking its function. Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Easytop ball valve with SC-Contur...
