Viega 8461.18 Instructions For Use Manual

Module with empty pipe for shower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

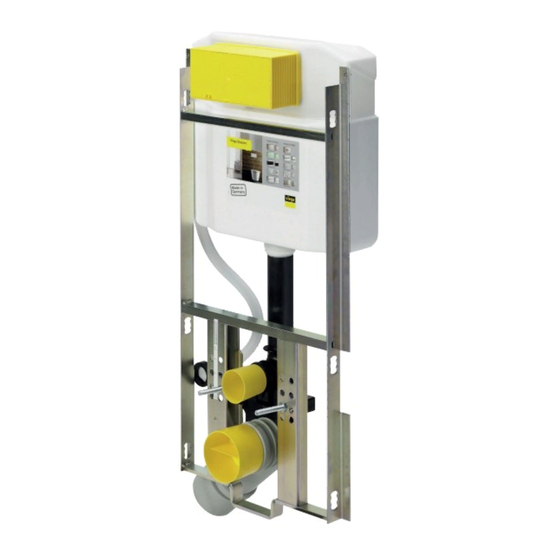

Viega Steptec WC module with empty pipe
for shower WC (AquaClean)
Instructions for Use
Viega Steptec
Model
8461.18
en_INT
Year built:
from 10/2006

Advertisement

Table of Contents
loading

Related Manuals for Viega 8461.18

Summary of Contents for Viega 8461.18

  • Page 1 Viega Steptec WC module with empty pipe for shower WC (AquaClean) Instructions for Use Viega Steptec Model Year built: 8461.18 from 10/2006 en_INT...
  • Page 2 Viega Steptec WC module with empty pipe for shower WC (AquaClean) 2 from 21...

  • Page 3: Table Of Contents

    Assembly 3.2.1 Mounting module 3.2.2 Connecting concealed cistern 3.2.3 Preparing optional actuation versions 3.2.4 Rounding off jobs 3.2.5 Setting the flush volume Cleaning and maintenance Disposal Viega Steptec WC module with empty pipe for shower WC (AquaClean) 3 from 21...

  • Page 4: About These Instructions For Use

    This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use.

  • Page 5: About This Translated Version

    German/European guidelines in this manual: The information is not binding for other countries and territories and should, as mentioned, be considered as support. Viega Steptec WC module with empty pipe for shower WC (AquaClean) 5 from 21...

  • Page 6: Product Information

    Intended use 2.2.1 Areas of use The Viega Steptec WC module is suitable for mounting on wall con- Ä „Regulations from structions pursuant to the regulations in section section: Fields of application / Mounting conditions“ on page 6 and is intended for use in a Steptec pre-wall construction.

  • Page 7: Product Description

    The WC module is suitable for a shower WC (AquaClean) due to the empty pipe. The WC module can be extended by the following compatible compo- nents: fixing element (model 8011.9) plywood board (model 8096) Viega Steptec WC module with empty pipe for shower WC (AquaClean) 7 from 21...
  • Page 8 Visign for Style 14 Functional unit 8332.3 Visign for More Flush plate Visign for More 8352.1 Flush plate Visign for More 8351.1 Flush plate Visign for More 8353.1 Viega Steptec WC module with empty pipe for shower WC (AquaClean) 8 from 21...

  • Page 9: Sound Protection

    Small flush volume Factory setting approx. 3 l Setting range approx. 3–4 l Large flush volume Factory setting approx. ca. 6 l Setting range approx. 6–9 l Viega Steptec WC module with empty pipe for shower WC (AquaClean) 9 from 21...

  • Page 10: Handling

    WC module is clad and tiled. The corresponding empty pipe (included in the scope of delivery of the remote actuation) is required when preparing the remote actuation Visign for Public1. Viega Steptec WC module with empty pipe for shower WC (AquaClean) 10 from 21...

  • Page 11: Installation Dimensions

    430 mm. Securing module Secure the module onto the open Steptec rail with the slot nuts sup- plied: Viega Steptec WC module with empty pipe for shower WC (AquaClean) 11 from 21...
  • Page 12 Whilst doing so, observe the markings on the cistern. The height is 1000 mm above UEFFL. Tighten the slot nut with a ring spanner (SW 17). Viega Steptec WC module with empty pipe for shower WC (AquaClean) 12 from 21...
  • Page 13 The interval between both bolts can be set to 180 or 230 mm. Install site protection of the flush actuation. Connect water. Provide on-site electrical connection. Viega Steptec WC module with empty pipe for shower WC (AquaClean) 13 from 21...

  • Page 14: Connecting Concealed Cistern

    Screw the ½ inch connector into the wall lead-in. Counter with a fork spanner (SW 27). Loosen plastic union nut. Pull out wall lead-in. Press connection. Viega Steptec WC module with empty pipe for shower WC (AquaClean) 14 from 21...
  • Page 15 Loosen (SW 19) flexible hose onto the filling valve. Open corner valve. Flush pipeline. Close corner valve. Re-mount (SW 19) the flexible hose onto the filling valve. Viega Steptec WC module with empty pipe for shower WC (AquaClean) 15 from 21...
  • Page 16 Loosen (SW 19) flexible hose onto the corner valve. Unscrew plastic union nut. Pull the corner valve inwards out of the wall lead-in. Remove plastic union nut. Remove the wall lead-in inwards. Viega Steptec WC module with empty pipe for shower WC (AquaClean) 16 from 21...
  • Page 17 Close opening on the side with the closing cap. Push wall lead-in from inside into the upper opening. Insert the corner valve back into the wall lead-in. Viega Steptec WC module with empty pipe for shower WC (AquaClean) 17 from 21...

  • Page 18: Preparing Optional Actuation Versions

    A corresponding empty pipe (not included in the scope of delivery of the electrical actuation) is required for the preparation of the electrical actuation (model 8350.31 or model 8350.32). Viega Steptec WC module with empty pipe for shower WC (AquaClean) 18 from 21...

  • Page 19: Rounding Off Jobs

    3 l / 3.5 l / 4 l. Remove the drain valve from the concealed cistern. Viega Steptec WC module with empty pipe for shower WC (AquaClean) 19 from 21...

  • Page 20: Cleaning And Maintenance

    In consideration of the mechanical, chemical and physical conditions, the concealed cistern is constantly laden. For this reason, the components must be cleaned, as required, and the drain and filling valve seals renewed. Viega Steptec WC module with empty pipe for shower WC (AquaClean) 20 from 21...

  • Page 21: Disposal

    Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Viega Steptec WC module with empty pipe for shower WC (AquaClean) 21 from 21...
