XTP501 & XTC501 User's Manual
2.7.4

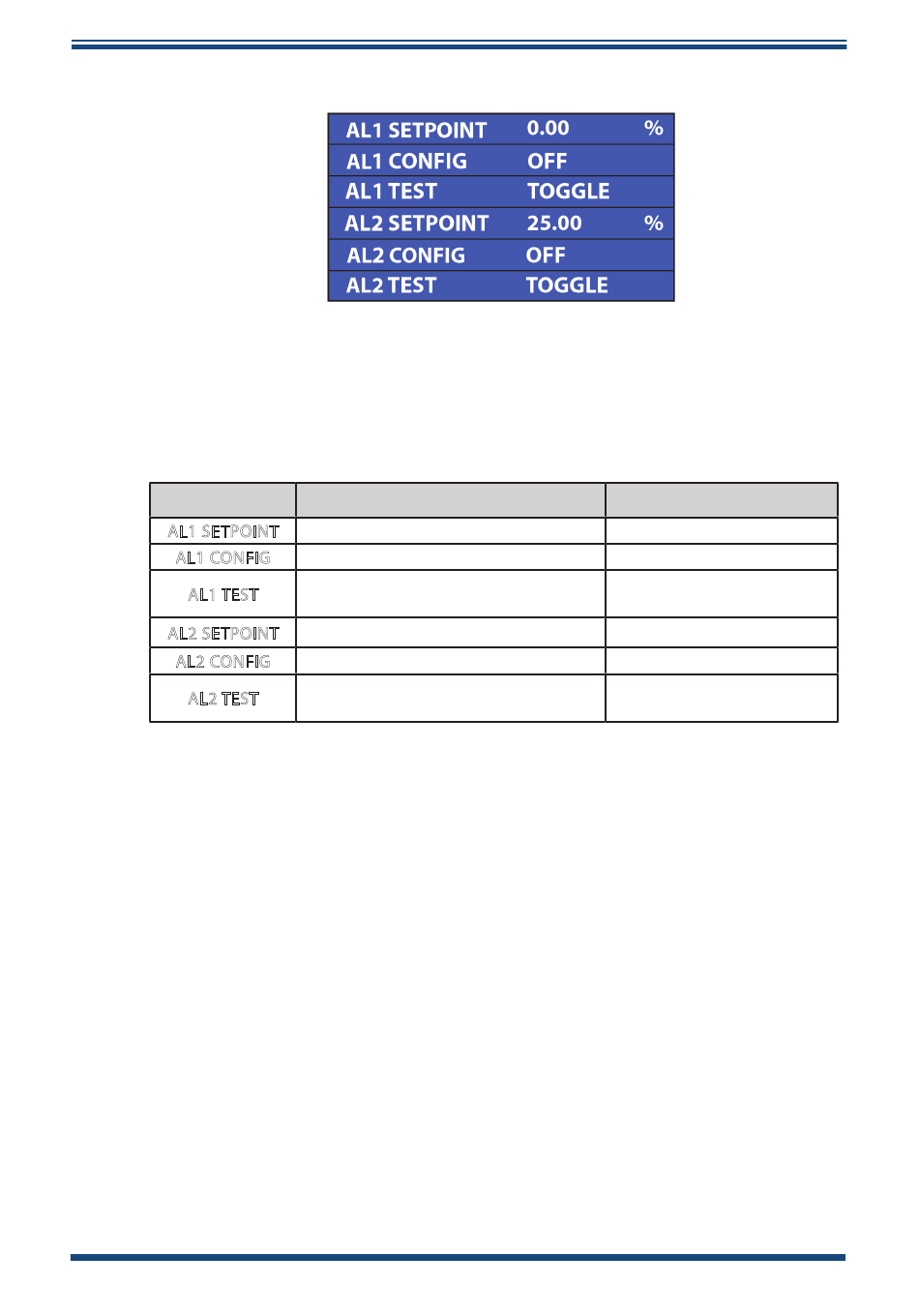

Alarms Page

The analyser has 2 user-configurable alarms which are freely assignable within the calibrated
range. The alarm relays are Single Pole Change-Over (SPCO) and are rated to 250 V, 5 A
maximum. Both alarms can be set as high, low or off. Both alarms can be activated to test
their operation by highlighting the Toggle option and pressing either up or down arrow.
Setting
AL1 SETPOINT
AL1 CONFIG
AL1 TEST
AL2 SETPOINT
AL2 CONFIG
AL2 TEST
Michell Instruments
Figure 21
Description/Operation
% set point for alarm relay 1
Turn on/off and set to HIGH or LOW
Toggle alarm by pressing up or down
arrow
% set point for alarm relay 2
Turn on/off and set to HIGH or LOW
Toggle alarm by pressing up or down
arrow
Page Alarmes
OFF, LOW OR HIGH
OFF, LOW OR HIGH
OPERATION
Options
0 to 100%
N/A
0 to 100%
N/A
21
