Outputs Page; Figure 24 Outputs Page - Michell Instruments XTP501 User Manual

OPERATION
2.7.7

Outputs Page

The analyzer has two 4-20 mA outputs and two concentration alarm relays. The primary
4-20 mA is fixed to the calibrated range of the unit, the second is freely selectable
from 0 to 100%. The analyzer has the ability to output 4 mA and 20 mA to aid with
installation and commissioning. The user is able to trim these outputs via the HMI by
highlighting the appropriate channel and using the up and down arrows to adjust the
output.
Setting
CH1 TRIM Z
CH1 TRIM S
CH2 TRIM Z
CH2 TRIM S
CH2 ZERO
CH2 SPAN
Scroll down past OUTPUTS Page to sub-menu NAMUR Output Set-Up.
24

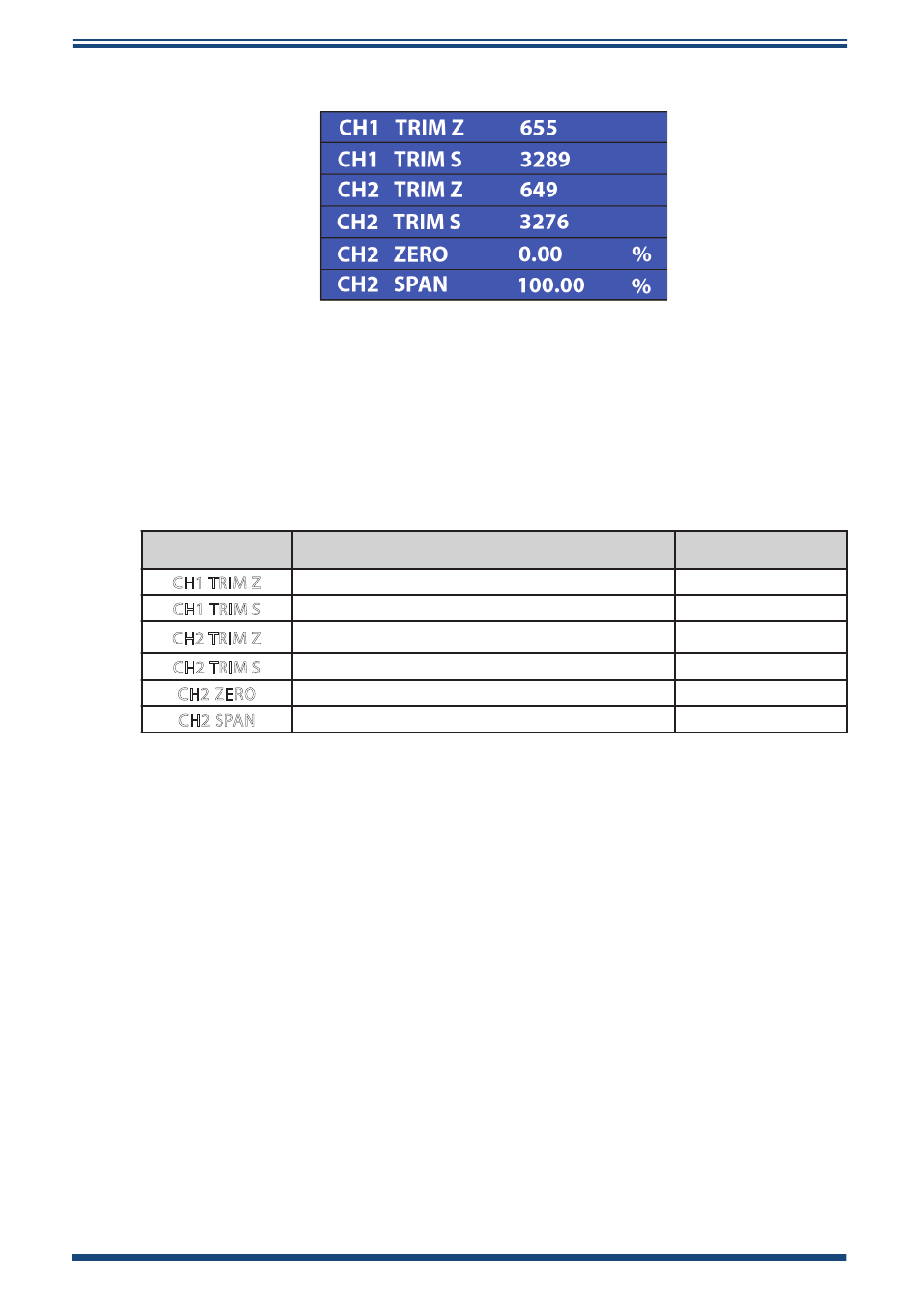

Figure 24
Description/Operation
Trim 4 mA output on Channel 1
Trim 20 mA output on Channel 1
Trim 4 mA output on Channel 2
Trim 20 mA output on Channel 2
Set 4 mA point for Channel 2
Set 20 mA point for Channel 2
XTP501 & XTC501 User's Manual
Outputs Page
99976 Issue 1.1, May 2020
Options
+/- 660
+/- 3300
+/- 660
+/- 3300
0.00 to 100%
0.00 to 100%
