CALIBRATION

3.3

Field Calibration Reset

The Field Calibration can simply be turned ON or OFF in the settings page. But if the

user would like to start again, the Field Cal (including saved data) can be deleted in this

menu.

This feature is accessed by selecting the Reset Page (see below).

Select Field Calibration and highlight DELETE?, then press the Up () button 3 times

and then press ENTER to accept the change.

MIN/MAX

ALARM LOGS

FIELD CAL

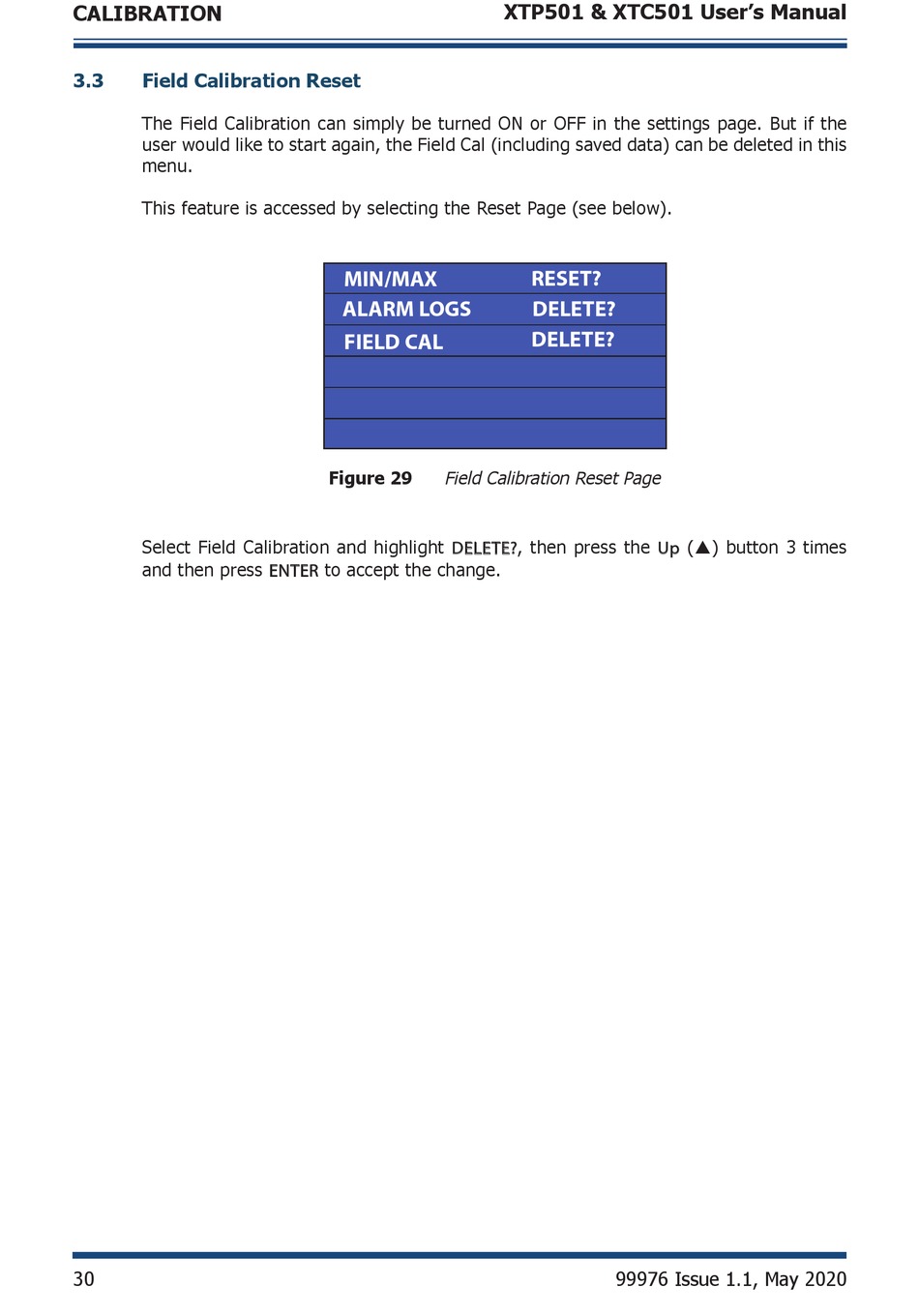

Figure 29

Field Calibration Reset Page

XTP501 & XTC501 User's Manual

RESET?

DELETE?

99976 Issue 1.1, May 2020
