OPERATION

2.3.2

'ESC' Button

The ESC button is used to exit the current menu and to return to the previous menu.

From the Main Page, pressing ESC will access the Info Page.

2.3.3

'Up/Down Arrow' Buttons

The Up () and Down () buttons are used to change pages, scroll through lists and

adjust values. In the Reset and Field Calibration Menus, pressing the Up () button

3 times will confirm a selection.

2.3.4

The ENTER button is used to select or de-select the highlighted item in a menu and to

confirm a value. From the Main Page, pressing ENTER will access the Passcode Page.

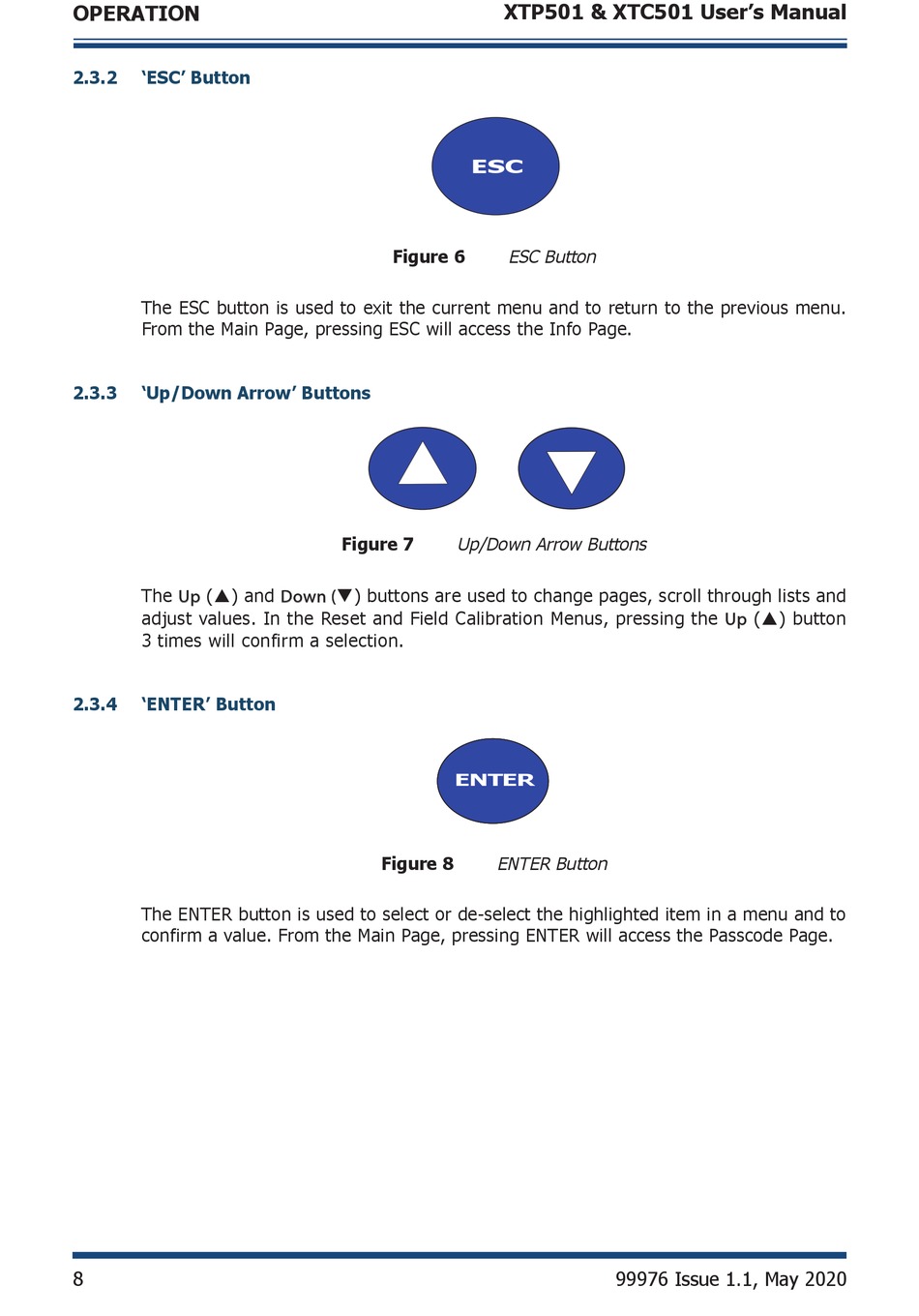

XTP501 & XTC501 User's Manual

ESC

Figure 6

ESC Button

Figure 7

ENTER

Figure 8

ENTER Button

99976 Issue 1.1, May 2020
