XTP501 & XTC501 User's Manual
2.7.2

Human Machine Interface (HMI) Page

It is possible to change parameters within the HMI, as shown below:
Setting
CONTRAST
BRIGHTNESS
TEMPR UNIT
EXT PRESS UNIT
CHART INTVAL
DATE
Scroll down past the DATE field to access the date and time page.
Michell Instruments
CONTRAST
BRIGHTNESS
TEMPR UNIT
EXT PRESS UNIT
CHART INTVAL
DATE

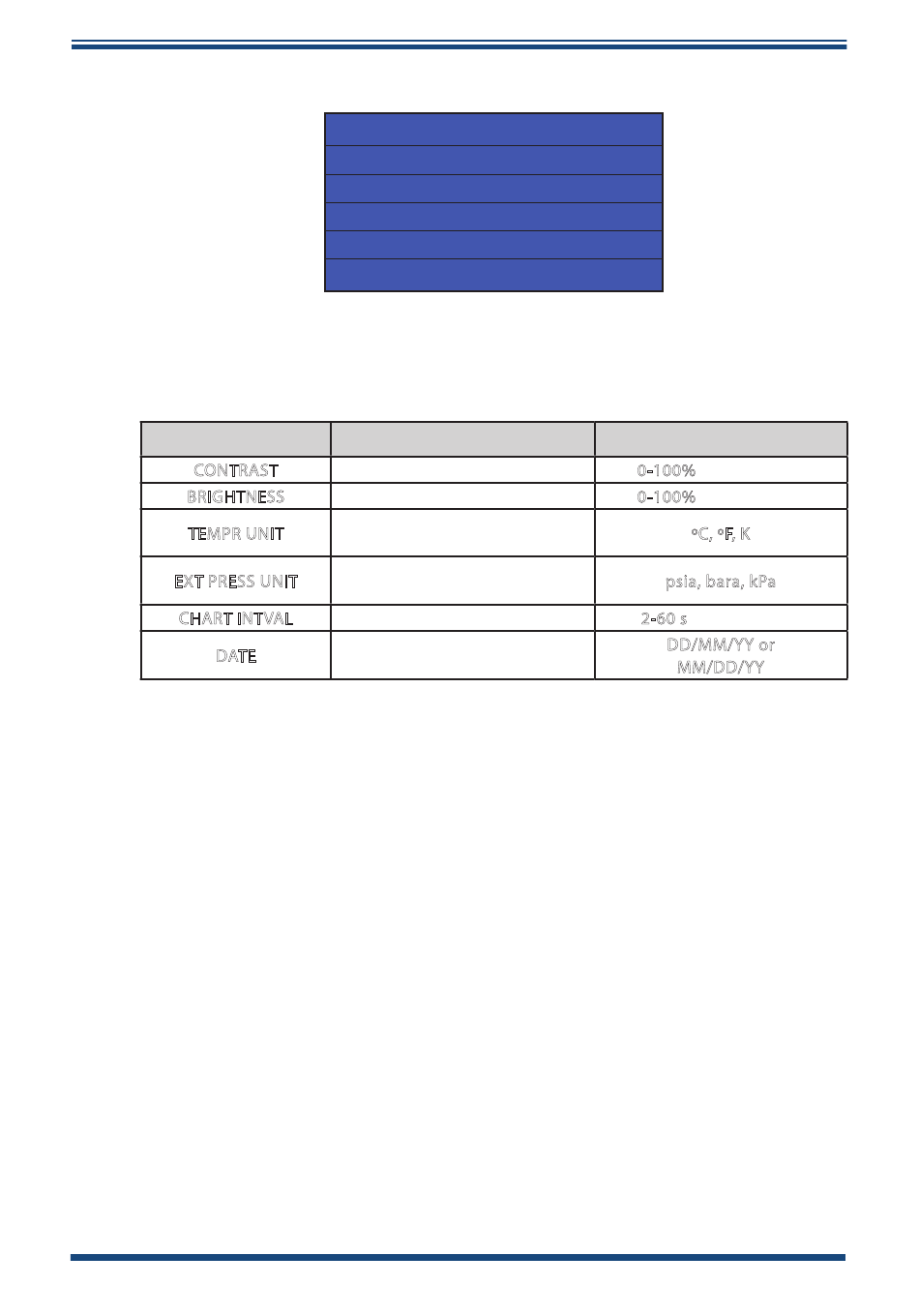

Figure 18
Description/Operation
LCD contrast setting
LCD backlit setting
Global temperature unit
selection
Pressure unit selection (for
external sensor only)
Chart interval
Date on the LCD can be either
format
0-100%
0-100%
C/F/K
psia, bara, kpa
2-60s
DD/MM/YY
HMI Page
Options
0-100% in 10% steps
0-100% in 10% steps
psia, bara, kPa
2-60 s in 2-sec steps
DD/MM/YY or
MM/DD/YY
OPERATION
ºC, ºF, K
19
