INTRODUCTION

This manual will show how to measure oxygen or binary gas mixtures easily using the
501 Analyzer.
The following sections contain information about:
• Operating instructions
• Calibration and maintenance of the Analyzer
• Installation
Please read this manual carefully and pay special attention to the safety warnings and
notifications.
NOTE : Warnings and important notifications are marked with bold text.
The 2 versions of the 501 available are shown below:
The XTP501 Analyzer is based on Michell Instruments' advanced proprietary Thermo-
Paramagnetic technology. It measures the percentage of oxygen in a wide range of
gases, including nitrogen, hydrogen, carbon dioxide, methane and biogas. The XTC501
Analyzer uses our thermal conductivity sensor to measure a target gas such as hydrogen
in a background gas such as nitrogen. In both Analyzers the sensor is housed in a
splash-proof casing – IP55 rated.
Michell Instruments
GP1
Analyzer

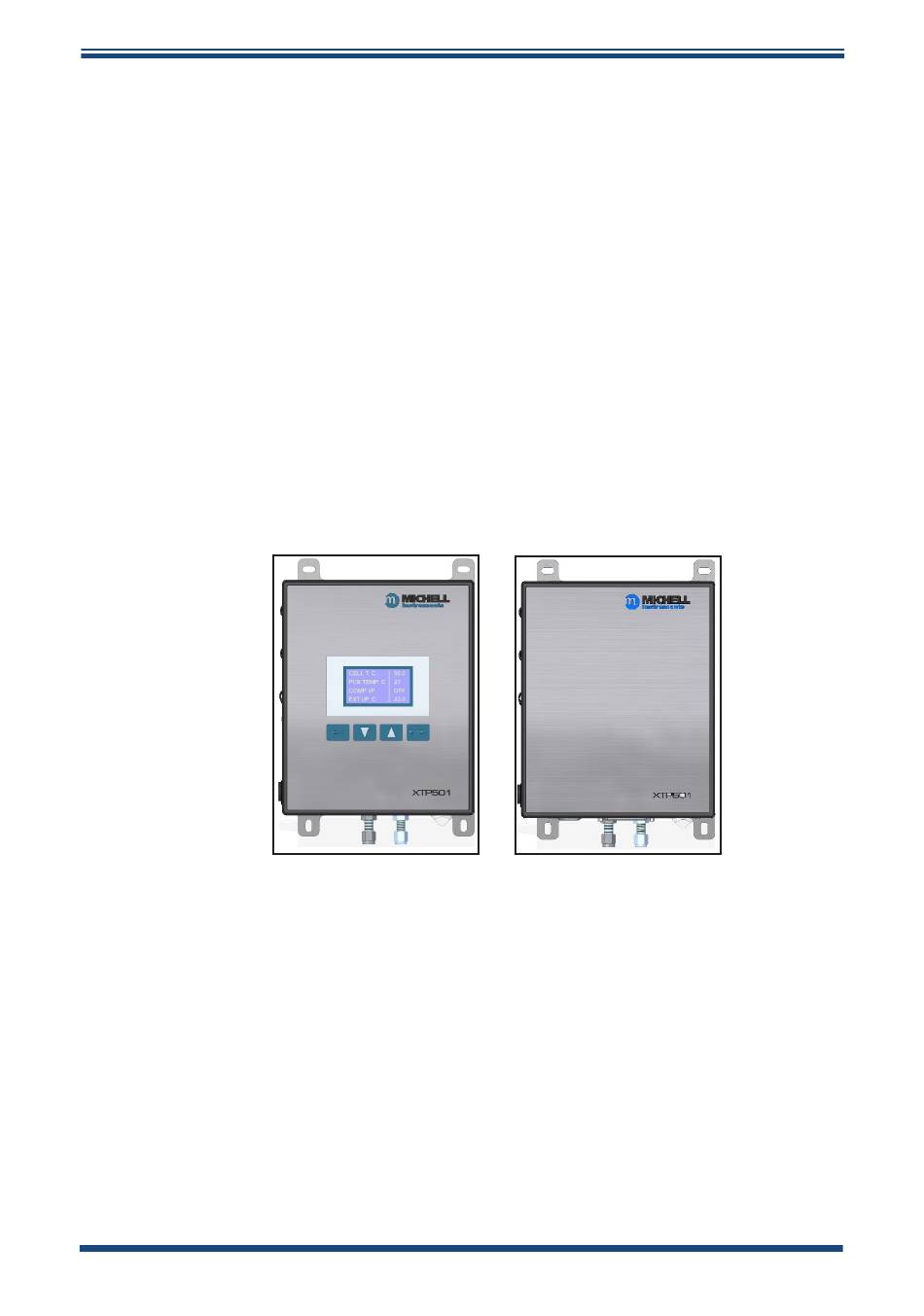

Figure 1 501 Analyzer and Transmitter
INTRODUCTION
GP2
Transmitter
