OptiView
Getting Started Guide

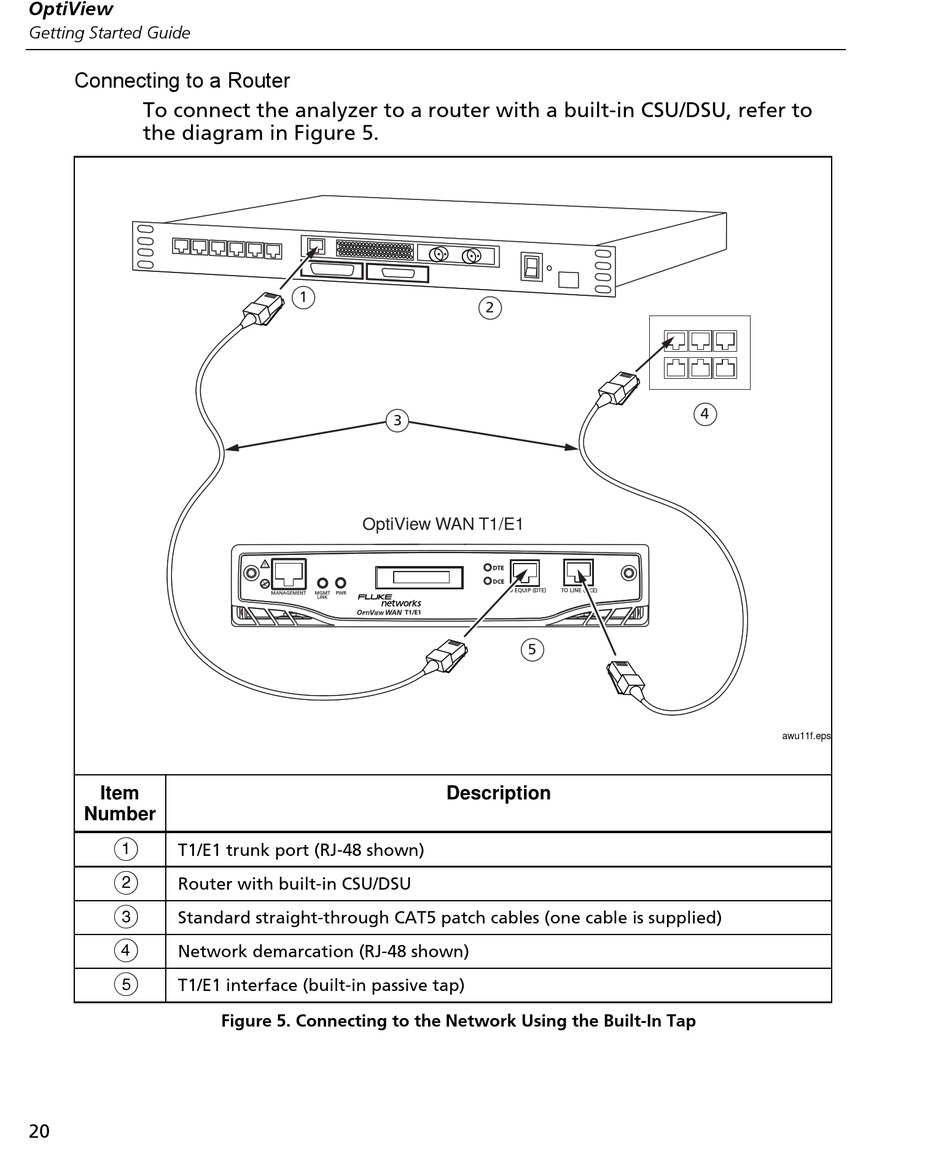

Connecting to a Router
To connect the analyzer to a router with a built-in CSU/DSU, refer to
the diagram in Figure 5.
Item
Number
A
T1/E1 trunk port (RJ-48 shown)
B
Router with built-in CSU/DSU
C
Standard straight-through CAT5 patch cables (one cable is supplied)
D
Network demarcation (RJ-48 shown)
E
T1/E1 interface (built-in passive tap)
20
1
3
OptiView WAN T1/E1
Figure 5. Connecting to the Network Using the Built-In Tap
2
5
Description
4
awu11f.eps
