T1/E1 Tap Connections
There are four types of T1/E1 Tap connections illustrated in this section.
The instructions for installing a T1/E1 Tap vary depending on the
model and type of equipment you are using. Refer to the connection
diagrams that fit your particular testing environment.
Connecting to an In-line T1/E1 Tap
To connect the analyzer to a Fluke Networks T1/E1 in-line Tap, refer to the
diagram in Figure 4.
4
Item
Number
A
You can connect to either RJ48 interface (Line or Equipment).
B
Straight-through CAT5 patch cable (one cable is supplied)
C
Rackmount Single-Port T1/E1 In-line Tap
D
Connect to service provider's line.
E
Connect to router equipment.

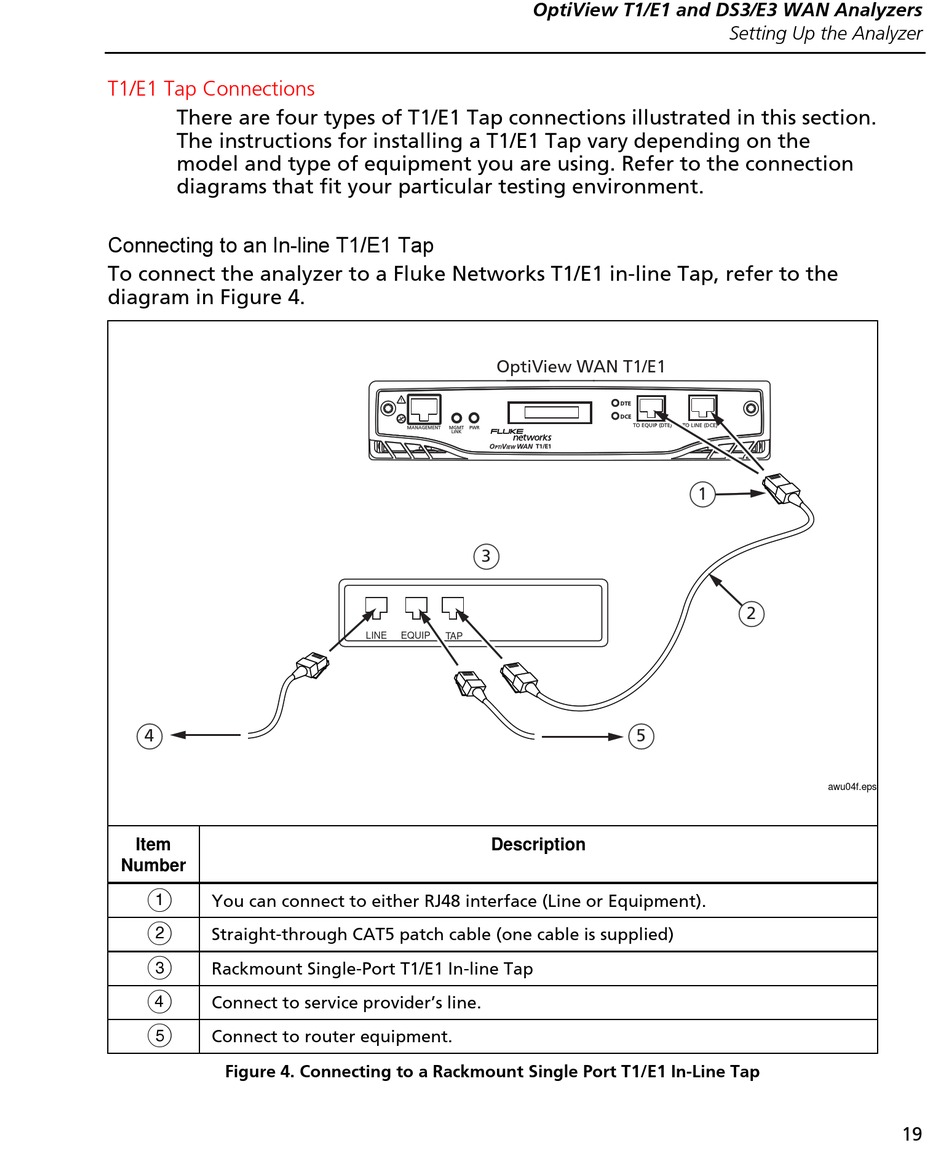

Figure 4. Connecting to a Rackmount Single Port T1/E1 In-Line Tap
OptiView T1/E1 and DS3/E3 WAN Analyzers
OptiView WAN T1/E1
3
LINE
EQUIP
TAP
Description
Setting Up the Analyzer
1
2
5
awu04f.eps
19
