T90/T110/T130/T150
Voltage/Continuity Tester
Instruction Sheet
Introduction

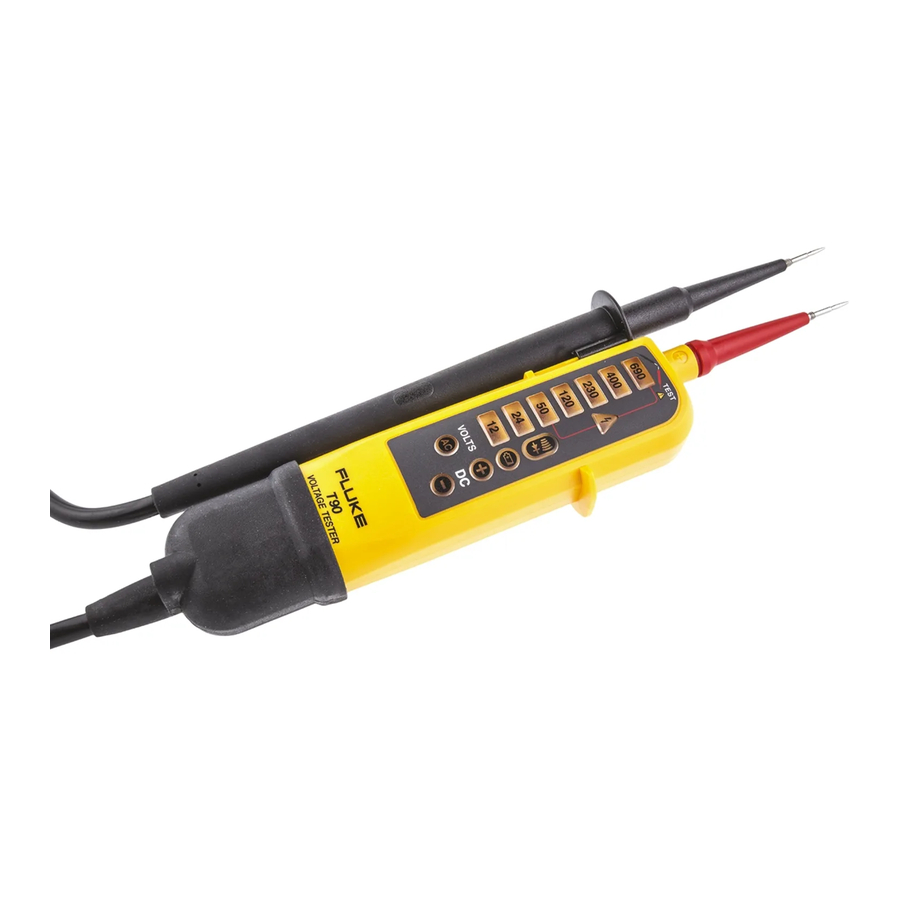

The Fluke T90/T110/T130/T150 Electrical Testers (the
Tester or Product) are voltage and continuity testers
with a rotary field indication (T110/T130/T150 only).
Their primary use is for test and measurement in
industrial, commercial, and household environments.
This Product complies with the most recent safety
standards for safe, reliable test and measurement.
The fixed test probe cover prevents the risk of injury
when you move the instrument.
How to Contact Fluke
To contact Fluke, call one of the following telephone
numbers:
• Germany: 07684 - 80 09 545
• France: 01 48 17 37 37
• United Kingdom: +44-0-1603256600
Go to
www.fluke.com
to register your product,
download manuals, and find more information.
To view, print, or download the latest manual
supplement, visit
http://us.fluke.com/usen/support/
manuals.
Safety Information
Warning
To prevent possible electrical shock, fire, or
personal injury:
●
Read all safety Information before you use the
Product.
●
Use the Product only as specified, or the
protection supplied by the Product can be
compromised.
●
Measure a known voltage first to make sure
that the Product operates correctly.
●
Do not apply more than the rated voltage,
between the terminals or between each
terminal and earth ground.
●
Limit operation to the specified measurement
category or voltage ratings.
●
Do not work alone.
●
Comply with local and national safety codes.
Use personal protective equipment (approved
rubber gloves, face protection, and flame-
resistant clothes) to prevent shock and arc
blast injury where hazardous live conductors
are exposed.
●
Do not use the Product around explosive gas,
vapor, or in damp or wet environments.
●
Do not use and disable the Product if it is
damaged.
●
Do not use the Product if it operates
incorrectly.
●
Keep fingers behind the finger guards on the
probes.
●
Do not use the Product if the test leads are
damaged.
●
Examine the case before you use the Product.
Look for cracks or missing plastic.
●
The battery door must be closed and fastened
before you operate the Product.
●
Replace the batteries when the low battery
indicator shows to prevent incorrect
measurements.
●
Repair the Product before use if the battery
leaks.
●
For use by competent persons. Anyone
using this Product should be knowledgeable
and trained about the risks involved with
measuring voltage, especially in an industrial
setting, and the importance of taking safety
precautions and of testing the Product before
and after using it to ensure that it is in good
working condition.
Symbols
These symbols are on the Tester or in this instruction
sheet.
Symbol
Explanation
Important information. Consult the
instruction sheet.
Hazardous Voltage.
Suitable for live working.
Conforms to European Union Directives
CAT III
Measurement Category III is applicable to
test and measuring circuits connected to
the distribution part of the building's low-
voltage MAINS installation.
CAT IV
Measurement Category IV is applicable
to test and measuring circuits connected
at the source of the building's low-voltage
MAINS installation.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fluke T90
Summary of Contents for Fluke T90
- Page 1 ● Replace the batteries when the low battery indicator shows to prevent incorrect How to Contact Fluke measurements. To contact Fluke, call one of the following telephone ● Repair the Product before use if the battery numbers: leaks. • Germany: 07684 - 80 09 545 ●...
-
Page 2: Quick Reference
Directive Annex I, this product is classed as category 9 "Monitoring and Control Instrumentation" product. Do not dispose of this producat as unsorted municipal wast. To to Fluke's website for recycling information. For storage, push Probe Tip Sheath into ... - Page 3 Features Model T110 T130 T150 • • • • Complies with EN 61243-3:2014 • • • • LED Indication Range: 12 V to 690 V dc and ac • • • • V Display: Multiple LED Bargraph Independent ELV indicator LED, indicates if >50 V ac/120 V dc is present even in •...
- Page 4 5. Measure a known voltage such as a 230 V socket outlet. This completes the self-test and includes the >ELV circuit. If the Tester fails the self-test or voltage test, do not use. See To Contact Fluke for service. gpn06.eps For an inspection of the insulation, cables, and case, Description (T130/T150) see Safety Information.
-
Page 5: Maintenance
Resistance Test (T150) phase L2 is the actual phase L2 right rotary field. (see Figure 7) signifies that the supposed phase The Tester measures low ohm resistances between L1 is the actual phase L2 and the supposed phase L2 1 Ω and 1999 Ω at a resolution of 1 Ω. is the actual phase L1 left rotary field. -
Page 6: Voltage Test
To do a single-pole phase test: A voltage test is the main function of the Tester. The T90 and T110 have an LED bargraph indication to 1. Firmly hold the indicator probe around its body show the nominal voltage levels. The T130 and T150 (between the finger guard and cable). -
Page 7: Specifications
Specifications Model T110 T130 T150 LEDs • • • • Voltage range 12 V to 690 V ac/dc ±12 V, 24 V, 50 V, 120 V, • • • • Resolution 230 V, 400 V, 690 V Complies with • •... - Page 8 Environmental Pollution degree .......2 Protection degree .....IP54 (T90) IP64 (T110/T130/ T150) Operating Temperature ....-15 °C to +45 °C Storage Temperature ....-20 °C to +60 °C Humidity ........85 % RH maximum Altitude ........2000 m Vibration ........refer to EN61243-3 Safety EN61243-3:2014 Transporting goods....VBG 1, § 35 Overvoltage protection .....690 V ac/dc...
-
Page 9: How To Clean
LIABILITY 3. Remove the discharged batteries. 4. Replace with two new 1.5V IEC LR03 AAA This Fluke product will be free from defects in material and workmanship for two years from the date of purchase. This batteries. warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or 5.
