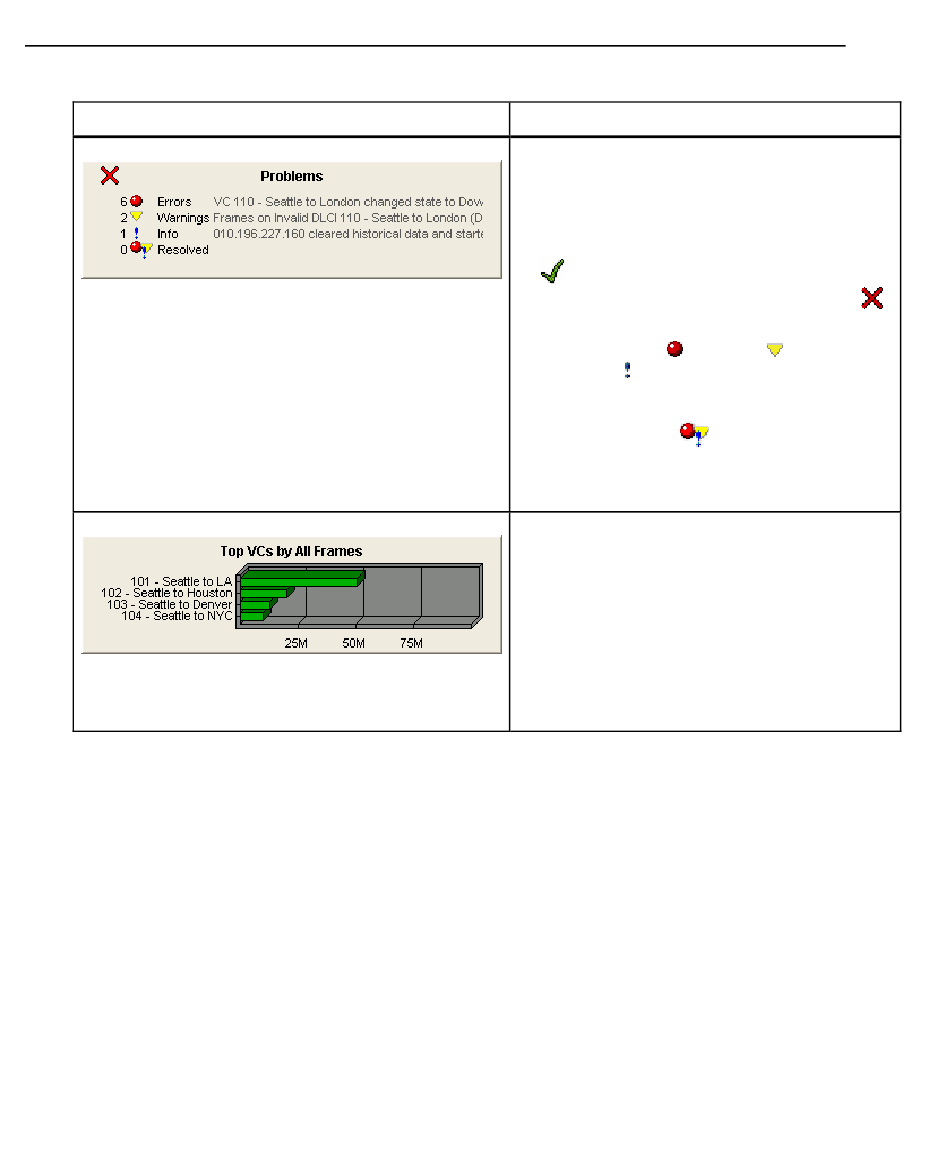

Table 2. Front Page Main Buttons (continued)
Button
Problems
Top VCs
(Frame Relay only)
Description
The OptiView WAN Analyzer can
automatically detect common WAN link
problems. This button displays a summary of
the number of problems detected for each
level of severity.
A indicates that there are currently no
unresolved problems on the link while an
alerts you to unresolved problems.
The critical errors , warning
information symbols are used on this button
and throughout the user interface to identify
devices experiencing problems. A count of all
resolved problems (
Click this button to view specific events
detected by the analyzer.
Displays the leading four DLCIs (Frame Relay
only) on the WAN link that the analyzer is
connected to. This measurement is based on
the total traffic frame counts for both
directions (DTE for the outbound direction and
DCE for the inbound direction).
Click this button to view detailed traffic frame
counts for all DLCIs (Frame Relay only).
, and
) is also displayed.
