Additional Front Page Buttons
Additional
Front Page
are located in the upper and lower portions of the
be available on other user interface screens. For detailed information
on the functions of these buttons, access the online Help within the
remote user interface software.
Button
buttons are described in Table 3. These buttons

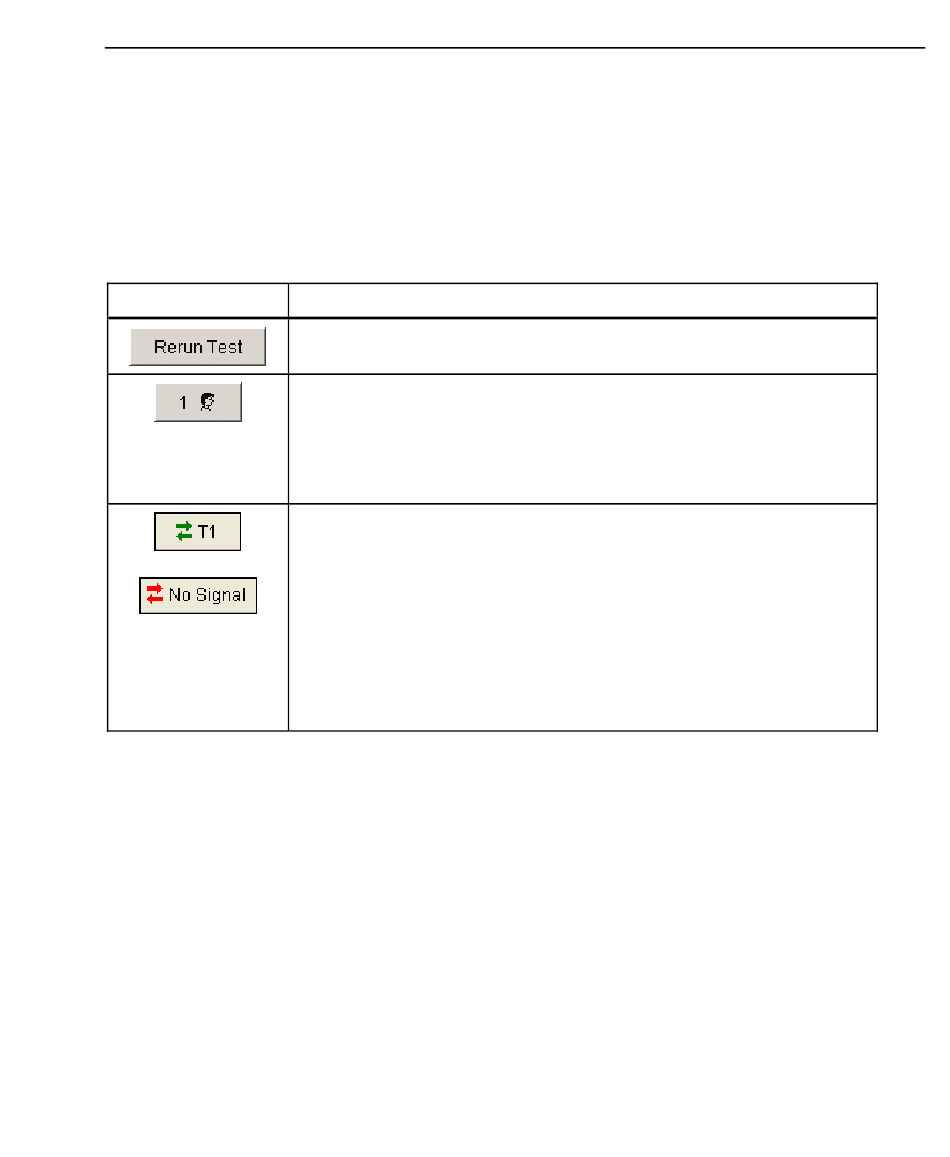

Table 3. Additional Front Page Buttons
Click this button to clear gathered statistics and discovery information.
The Front Page is updated with the latest network information.
Displays the number of users (or remote control sessions on a single PC)
who are currently connected to the analyzer through the OptiView
remote user interface software.
Click to display the Sessions window, which provides detailed
information on each connected user.
Indicates the status of the signal and framing format in each direction
on the link:
•
A green arrow indicates that both a proper signal level and
framing are being detected at the input.
•
A red arrow indicates that no signal is being detected at the input.
•
A yellow arrow indicates that a proper signal level is being
detected, but no framing is being detected at the input.
Click to view the analyzer's WAN interface and physical layer settings.
OptiView T1/E1 and DS3/E3 WAN Analyzers
The Remote User Interface
Front Page
Description
and may
41
