- Page 1 ® 52PRO Test Set Users Guide PN 3394309 January 2009, Rev. 3 10/11 ©2009, 2011 Fluke Corporation. Printed in China. All product names are trademarks of their respective companies.
- Page 2 MH and Li-Ion batteries, cables or other peripherals are all considered parts or accessories. The warranty extends only to the original buyer or end user customer of a Fluke Networks authorized reseller, and does not apply to any product which, in Fluke Networks’ opinion, has been misused, abused, altered, neglected, contaminated, or damaged by accident or abnormal conditions of operation or handling.
-
Page 3: Table Of Contents
Table of Contents Title Page Introduction ................................1 Registration .................................1 Contacting Fluke Networks ..........................1 Safety Information ..............................2 Product Features ..............................2 Physical Characteristics ............................3 Housing ................................3 Belt Clips ...............................3 Line Cords ..............................4 Battery ................................4 Speaker and Speakerphone Microphone ....................4 Audio Controls .............................4 Display and Keypad .............................7... - Page 4 TS52PRO Test Set Users Guide LCD Backlight ............................18 DTMF Digit Grabbing ..........................19 Visual ANAC Mode ..........................19 Factory Defaults ..........................19 Maintenance ..............................20 Cleaning ..............................20 Replacing the Battery ..........................20 Replacing or Relocating the Belt Clip .......................21 Replacing the Line Cord ..........................21 Removing the Old Line Cord ......................21 Installing a New Line Cord .........................22...
-
Page 5: Introduction

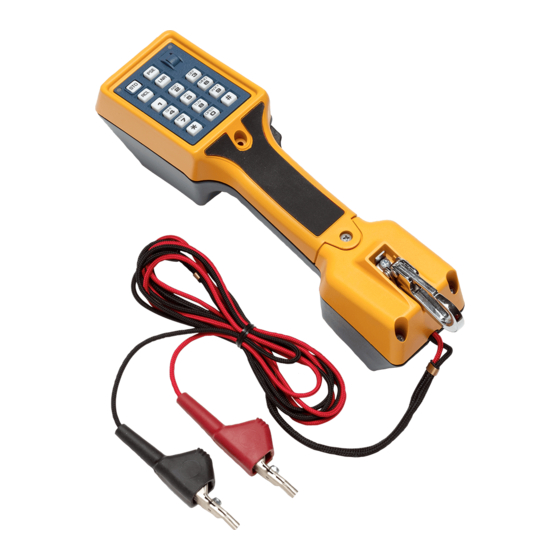

® 52PRO Test Set Introduction Contacting Fluke Networks The TS52PRO Test Set is an analog test telephone used www.flukenetworks.com by installers, repair technicians and other authorized support@flukenetworks.com personnel to test copper wire voice subscriber lines. In +1-425-446-4519 addition to providing standard off-hook operations, such as dialing and voice communications, the TS52PRO •... -
Page 6: Safety Information
TS52PRO Test Set Users Guide • Safety Information Do not use the test set if it is damaged. Before you use the test set, inspect the case. Look for cracks or missing plastic. Pay particular attention The following IEC symbols are used either on the test to the insulation surrounding the connectors. -
Page 7: Physical Characteristics
The test set can be See Figure 1. hung by the belt clip in one of two ways: (1) with The TS52PRO Test Set housing is made of high-impact keypad and speakerphone facing the user for plastic. The test set provides rugged service and... -
Page 8: Line Cords
If it still The test set has a field replaceable line cord. The line does not work, contact Fluke Networks Technical cord is attached through a rubber strain relief at the Support. - Page 9 Physical Characteristics Handset receiver Handset microphone Mute key Speaker key Volume key bfp02.eps Figure 2. Audio Control Keys...
- Page 10 Pressing the MUTE key again will turn the speakerphone microphone on. The TS52PRO allows you to configure the test set to select the Receive-Only Loud Speaker mode as the default mode (see "Make Receive-Only Loud Speaker the Default" on page 17). If you configure the test set to enable the Receive-Only Loud Speaker mode, the Speakerphone will no longer be available.
-
Page 11: Display And Keypad
Physical Characteristics Display and Keypad See Figure 3. The TS52PRO has a 10 digit LCD and a keypad that is recessed into the housing. The recessed bezel protects the keypad and helps prevent accidental key presses. Table 2 describes the keys and display icons. - Page 12 See "Program Speed Dialing Numbers" on page 16. OVERRIDE key If you connect the TS52PRO to a telephone line carrying high speed data such as ADSL and you put the test set into Talk mode, the test set will detect the data, it will lock out, and will not go off-hook to protect the data.
- Page 13 Physical Characteristics Table 2. Display and Keypad (continued) Key or Indicator Description (refer to Figure 3) PULSE key The PULSE key switches the test set between tone and pulse dialing. The PULSE key is active only when the test set is off-hook. Any time the test set goes off- hook, it is automatically set to tone dialing.
- Page 14 TS52PRO Test Set Users Guide Table 2. Display and Keypad (continued) Key or Indicator Description (refer to Figure 3) On-Hook / Off- The icon indicates which mode the test set is in. The icon will alternate between Hook icon on-hook and off-hook when a call is coming in.
- Page 15 Physical Characteristics Table 3. TS52PRO Key Functions Monitor Mode Talk Mode (Off-hook) MUTE Toggle microphone Toggle volume Toggle volume SPKR Toggle speaker Toggle speaker Initiate speed dial storage Initiate speed dial functions OVERRIDE Override data lockout Dial last number STORE/PROG (+)
-
Page 16: Operation
TS52PRO Test Set Users Guide Operation Operating the Test Set in Monitor Mode In Monitor mode, the test set is always on-hook. The The test set has two basic modes of operation: Talk test set draws no direct current from the line and it mode and Monitor mode. -
Page 17: Caller Id
When off-hook, the test set operates like a standard Note telephone and is typically used to verify the proper The TS52PRO will not go off-hook if the line operation of a voice telephone line or to establish voltage exceeds 140 V dc. -
Page 18: Ground Start
TS52PRO Test Set Users Guide Ground Start Data Safe Practices Always monitor the line for an audible signal before Ground start lines are typically found on PBX attempting to go off-hook to draw dial tone. The data installations. To activate an idle ground start telephone... -
Page 19: Data Lockout Override Operation
The TS52PRO is designed for use by Outside Plant and The following are scenarios where the operator may Central Office technicians in environments where... -
Page 20: Last Number Redial
TS52PRO Test Set Users Guide Last Number Redial Putting a Pause in a Stored Number To redial in tone dialing mode, go off-hook and press Note the LNR key. To redial in pulse dialing mode, go off- Each time the PAUSE key is pressed, it counts as hook, press the TONE/PULSE key, then press the LNR one dialing digit. -
Page 21: Dialing A Stored Number
Make Receive-Only Loud Speaker the Default Connect the test set to a working telephone line. On a TS52PRO fresh from the factory, if you take the unit off-hook and press the SPKR key, the Speaker- Set the Talk/Monitor switch to T. -
Page 22: Speaker/Lcd/Test Set Timeout
TS52PRO Test Set Users Guide Speaker/LCD/Test Set Timeout Table 6. Timeout Durations The speaker uses a lot of battery power. The battery Speaker/Monitor Mode drains quickly when the speaker is left on continuously. Timeout Duration To extend battery life, the test set has a timeout... -
Page 23: Dtmf Digit Grabbing
Operation DTMF Digit Grabbing Factory Defaults The TS52PRO Test Set allows you to capture DTMF The Restore Defaults function lets you restore all (Dual-Tone Multi-Frequency) tones generated on a programmable features to their original factory telephone line. This feature is useful when you suspect settings. -
Page 24: Maintenance
TS52PRO Test Set Users Guide Maintenance Note Battery cover screws are retained in the cover and will not come all the way out of the battery Warning cover. Disconnect the test set’s alligator clips from any metallic connections before performing Use a Phillips screwdriver to loosen only the four any maintenance. -
Page 25: Replacing Or Relocating The Belt Clip
To order a replacement belt Phillips head screw. clip, contact your local Fluke Networks authorized distributor. Replacing the Line Cord To replace the belt clip assembly:... -
Page 26: Installing A New Line Cord
TS52PRO Test Set Users Guide Loosen the two screws that hold the line cord to the PC board (Figure 6). Using needle nose pliers or one of the line cord clips, remove the two screws and washers from the line cord connectors. -
Page 27: Accessories (How To Order)
Accessories (How to Order) Insert the plastic clip over the line cord strain relief at the base of the test set housing (Figure 7) and To order accessories, contact your local Fluke Networks press tightly into place. Inspect all work to ensure distributor. -
Page 28: Specifications
TS52PRO Test Set Users Guide Specifications Electrical Physical Current Range 10 mA to 100 mA Measurement 10 in x 3.75 in x 4.25 in (Off-Hook) (254 mm x 96 mm x 107 mm) DC Resistance Weight Less than 1.5 pounds (0.68 kg) with one belt clip 150 Ω...
