Front Panel

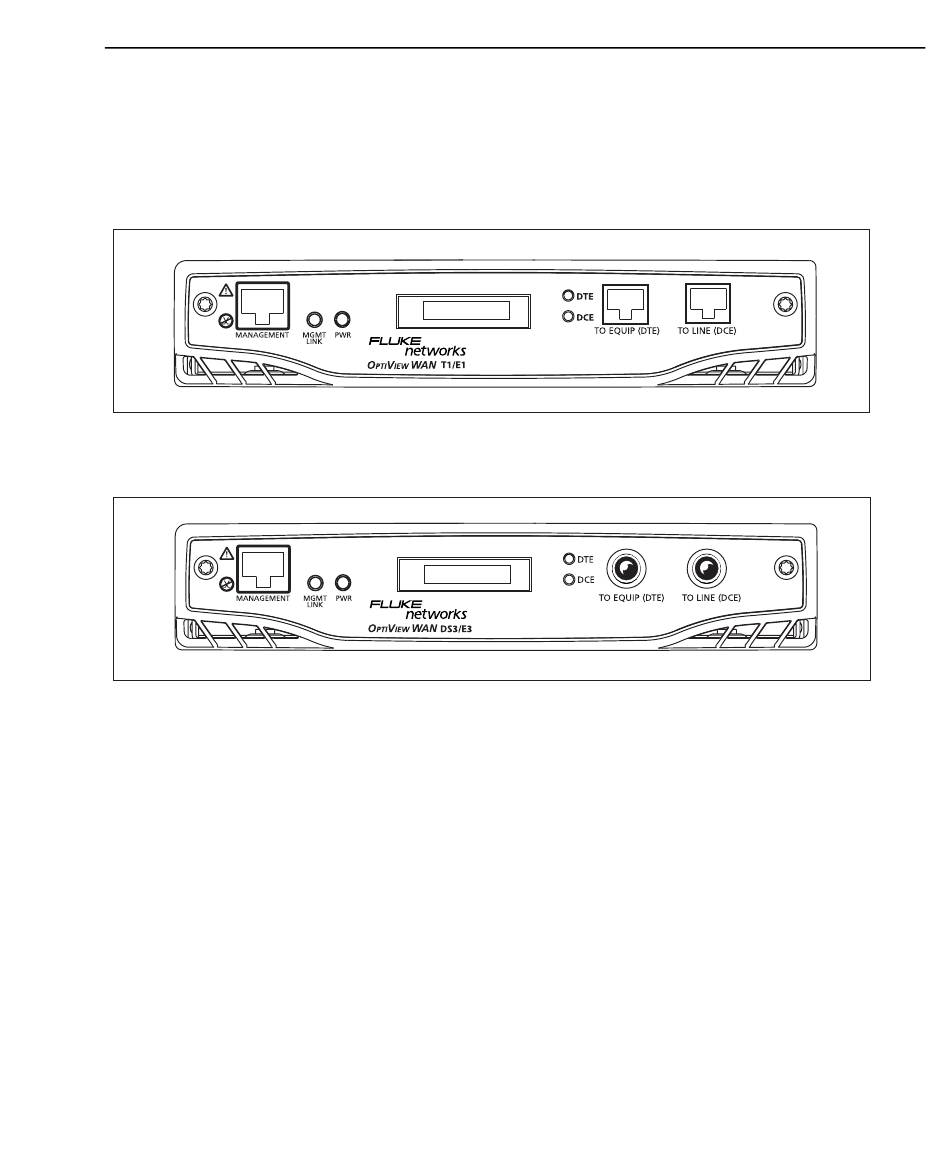

The OptiView T1/E1 WAN Analyzer's front panel is shown in Figure 2.
The OptiView DS3/E3 WAN Analyzer's front panel is shown in Figure 3.
Following the figures are descriptions of the elements on these front
panels.
Figure 2. OptiView T1/E1 WAN Analyzer's Front Panel
Figure 3. OptiView DS3/E3 WAN Analyzer's Front Panel
OptiView T1/E1 and DS3/E3 WAN Analyzers
Introduction
awu02f.eps
awu03f.eps
11
